Embossed Tactile Button Warterrpoof Membrane Switch With 3M Adhesive

China Embossed Tactile Button Warterrpoof Membrane Switch With 3M Adhesive supplier
Embossed Tactile Button Warterrpoof Membrane Switch With 3M Adhesive supplier Embossed Tactile Button Warterrpoof Membrane Switch With 3M Adhesive supplier Embossed Tactile Button Warterrpoof Membrane Switch With 3M Adhesive supplier Embossed Tactile Button Warterrpoof Membrane Switch With 3M Adhesive supplier

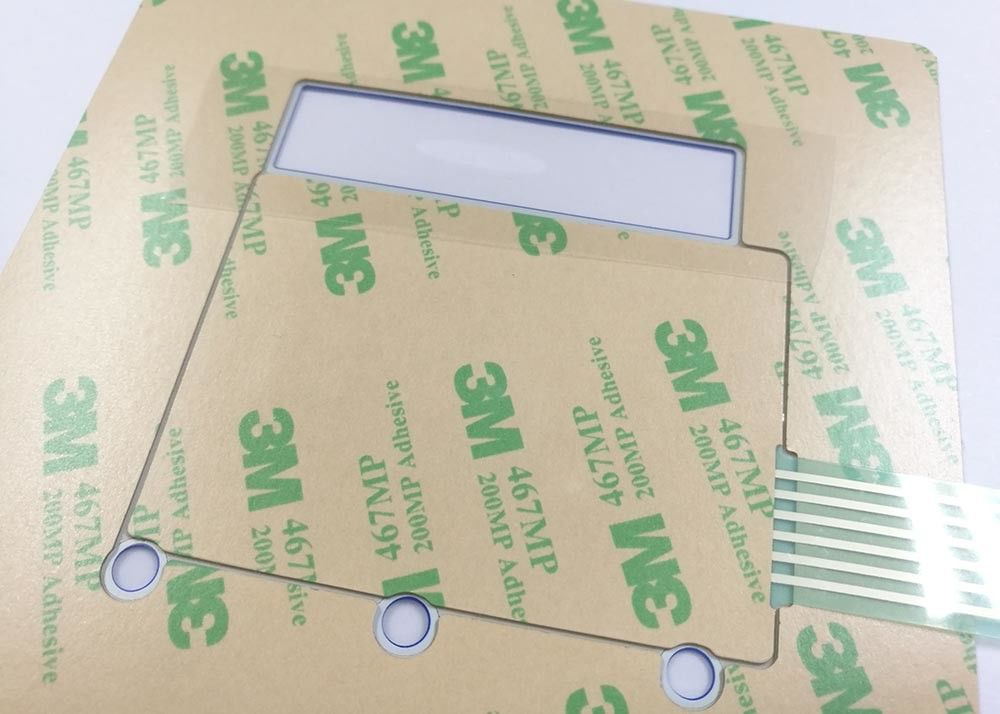

Large Image :  Embossed Tactile Button Warterrpoof Membrane Switch With 3M Adhesive

Product Details:

Place of Origin: China
Brand Name: TKM MS
Certification: ISO9001:2008, SGS,Rohs
Model Number: TKM—MS--379

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T or L/C, Western Union
Supply Ability: 1000000Pieces per month
Contact Now
Detailed Product Description
Material: Polyster Circuit: Flexible Cable Circuit And Pins
Humidity: 90%~95%, 240 Hours Adhesive: 3M
Structure: Multi-Layer Color: Multi Color

Embossed Tactile Button Warterrpoof Membrane Switch With 3M Adhesive





Quick Detail





Operating Temperature -40—70(C°) Operating Voltage ≤50(V)
Rated Current 0-30V DC Contact resistance 0.5-10( Ω)
Insulation Resistance ≤50(Ω) Key operation force 15-750g
Dome springback time ≤5(ms) Substrate voltage 1500VDC
Feature: Dust-proof , Waterproof Certificate:

SGS , Rohs









Applications:



Products are widely used in communication, industrial control, household appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,

Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,

Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.





Environmental


Storage Temperature: -40°C (-40°F) to +70°C (158°F).
Storage Altitude: Sea level to 35,000 feet.
Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F). Can be
designed to operate in most environments.
Humidity: No delamination after 24 hours at 80°C and 90%RH.







Specifications:



1 material : PET /PC
2 adhesive: 3M467 & 3M468
3 High life time :>1million times
4 Pass:ISO9001:2008RoHS.
5 High quality



  Technical Specification Of Membrane Switch
wire lead resistance: <1Ω/CM   Life time: >1 Million times
rated current: 25-100mA,0~30V DC   Operation Temperature: -40℃~70℃
Rated Voltage: <50V, DC   Operation Humidity: at40℃,<98%RH
Insulation resistance: <100MΩ,250V DC   Dome springback time: <5 msec
Switch travel: Flat Type 0.05-0.3mm   Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm   Tail flexiblility: any angle within 180 degree





Competitive Advantage:



1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.

2.Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.

3.Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.

4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.

5.Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.





we manufacture complete line of membrane switches, our experienced
Design team are ready to work with you to design membrane switches to meet
Your unique needs of your project
.
