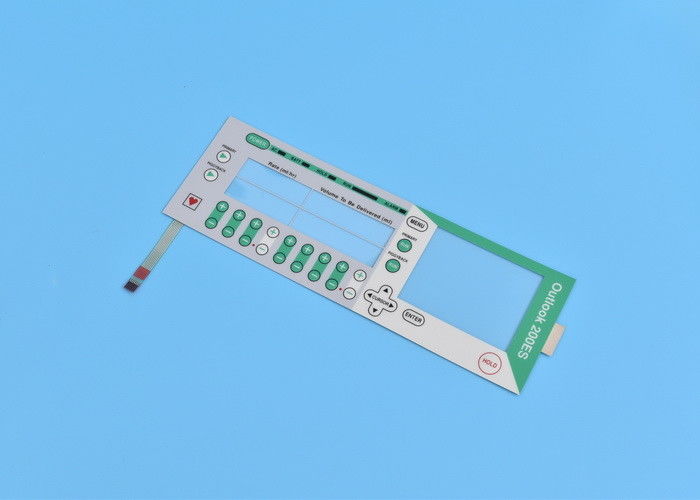

Multiple Keys / Windows Membrane Switch Keypad Multi Layer With Leds

Multiple Keys / Windows Membrane Switch Keypad Multi Layer With Leds
Multiple Keys / Windows Membrane Switch Keypad Multi Layer With Leds

Large Image :  Multiple Keys / Windows Membrane Switch Keypad Multi Layer With Leds

Product Details:

Place of Origin: China
Brand Name: TKM MS
Certification: ISO9001:2008, SGS,Rohs
Model Number: TKM-037

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pieces per month
Detailed Product Description
Structure: Multi-Layer Usage: Variety
Size: Customized Size Type: Flexible
Color: Multi-color Connector: Zif
High Light:

keyboard mechanical switches

,

custom membrane switches



Multiple Keys and Windows, Flexible Membrane Switch Keyboard with LEDs





Product Features:

1) Multiple keys, windows and color

2) Custom design

3) Connector is Zif without housing




Detail:



Operating Temperature

-40—70(C°)

Operating Voltage ≤50(V)
Rated Current 0-30V DC Contact resistance 0.5-10( Ω)
Insulation Resistance ≤50(Ω) Key operotion force 15-750g
Dome springback time ≤5(ms) Substrate voltage 1500VDC





Applications:



1. The mobile phone

Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of products, easy connection of the battery, microphone, and buttons and into one.



2. Computer and LCD screen

Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the picture, through the LCD screen



3. CD player

Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The huge CD to carry around



4. Disk drives

Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the 0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.



5. The latest applications

Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components of xe packaging board, etc



Competitive Advantage:



1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.

2. Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.

3. Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.

4. Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.

5. Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.

6. Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.

7. Customized specification is available and keys can make different shapes

We will do what we can to help you.





Design Service


Considering some customers aren't familiar with the technology applied in membrane switch, our company is willing to provide the switch design service for you. You just need to give us basic information of your requests such as operating conditions. We will devote ourselves to recommending the most suitable and cost-effective intergrated solution for you ,

while taking function, performance, aesthetics,
budget and time into consideration. What's more, you will become a member
of our design team, what we are designing will be In accordance with your request.
There is no doubt that our team are combining our strengths, experiences, and knowledge to serve you.





Product Show



Multiple Keys / Windows Membrane Switch Keypad Multi Layer With Leds 0

we manufacture complete line of membrane switches, our experienced design team are ready to work with you to design membrane switches to meet your unique needs of your project.
