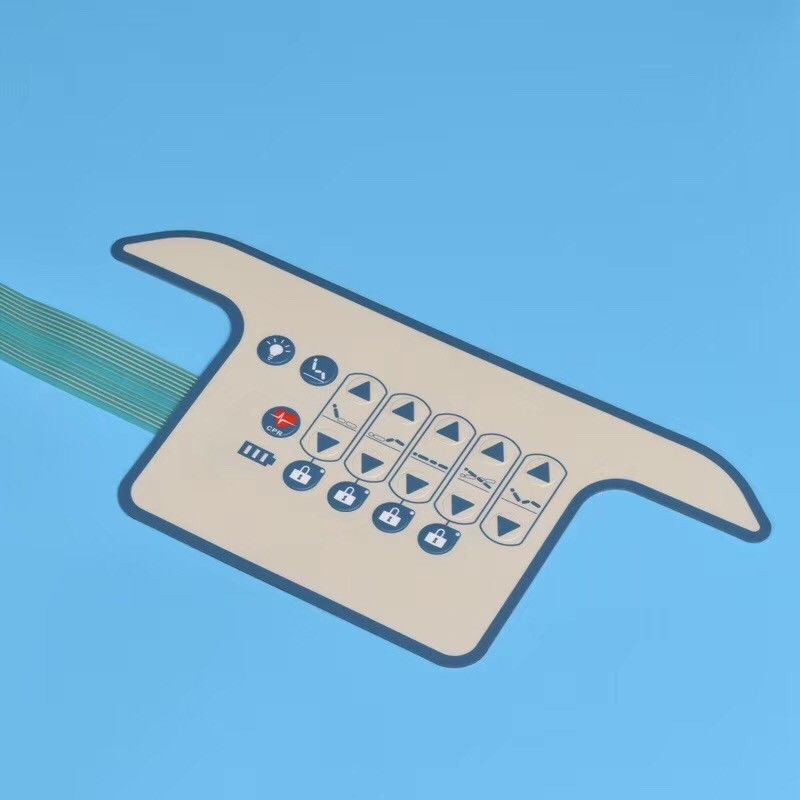

Multi Metal Dome Embossed PET Film Membrane Control Panel

Multi Metal Dome Embossed PET Film Membrane Control Panel

  • High Light

    PET Film Membrane Control Panel

    ,

    Embossed Membrane Control Panel

    ,

    Multi Metal Dome Membrane Switch Keyboard

  • Material
    PET Film
  • Print
    Silk Screen
  • Usage
    Playback Switch, Change-over Switch, Control Switch
  • Name
    Control Panel Membrane Switch Keyboard
  • Place of Origin
    China
  • Brand Name
    TKM
  • Certification
    IS09001.2015
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    packaged in PE bags
  • Delivery Time
    15-20days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    1000000pcs/month

Multi Metal Dome Embossed PET Film Membrane Control Panel

High Quality Pad Embossed Control Panel Switch With Multi Metal Dome



Our main product range are:

1)Membrane switch and graphic overlay

2)Flexible printing Circuit / PCB /FFC /FPC circuit /EL

3)Silicone products including silicone rubber keypad. and various Rubber products.

4) Metal nameplate series

5) Membrane switch with backlighting.





Electric Characteristic <35V(DC)<100mA 1W Life Expectancy Flat type≥500 million times;tactile type≥100 million times
Contact Resistance 10Ω~500Ω(According to the trace length and materials to confirm) Operation Temperature -40℃ ~ +60℃
Insulating Impedance >100MΩ 250VDC Stock Temperature -40℃ ~ +65℃
Resistance of the Wire <1Ω/cm Humidity +40℃ 90% ~ 95%240 hours
Operation Force Flat type 57-284g(2-10Oz);tactile type 170-397g(6-14Oz) Switch Stroke flat type 0.1-0.5 mm;tactile type 0.6-1.5mm

Multi color metal dome button switch tactile membrane keyboard medical use





Multi color metal dome button switch tactile membrane keyboard medical use







Multi color metal dome button switch tactile membrane keyboard medical use

We have the capacity to provide you membrane keyboard with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, EL,LED backlingt,rubber keypad etc.

Multi color metal dome button switch tactile membrane keyboard medical use



High-performance Membrane Keypad

1.Beautiful appearance, rich and bright in color, design can be arbitrary, the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.
3. Small size, light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quakeproof.
5. Low cost, high lifespan, membrane switches design and manufacture are using the keyboard as a whole way, whether on the material or mold charges, the costs are lowest, the life expectancy of different types of membrane switch is more than 100 million times.
6. Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested, components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes.



Multi color metal dome button switch tactile membrane keyboard medical use



We take great pride in our work and in the wide variety of products that we offer. We are

experienced in servicing the US market, European market and Africa market .Please be aware that our production lead times depend on specific items and item quantities. Our success has been based on our understanding of the demands and nature of promotional and marketing deadlines. That's why we always ensure that every order is delivered on time.
