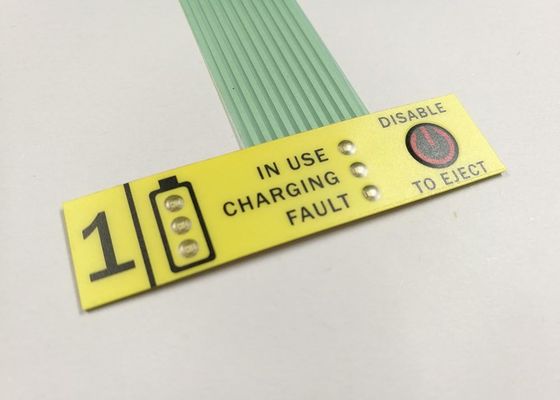

Flexible  PC / PET LED Membrane Switch Tactile Matel Dome with Long Tail

Flexible PC / PET LED Membrane Switch Tactile Matel Dome with Long Tail

  • High Light

    mechanical key switches

    ,

    stock membrane switches

  • Material
    F150
  • Connector
    Nicomatic
  • Humidity
    90%~95%, 240 Hours
  • Structure
    Multi-Layer
  • Circuit
    UV Printing
  • Adhesive
    3M
  • Place of Origin
    China
  • Brand Name
    TKM MS
  • Certification
    ISO9001:2008, SGS,Rohs
  • Model Number
    TKM—MS--380
  • Minimum Order Quantity
    100pcs
  • Price
    negotiation
  • Packaging Details
    Polybag per pcs,50per cartoon
  • Delivery Time
    15-20days
  • Payment Terms
    T/T or L/C, Western Union
  • Supply Ability
    1000000Pieces per month

Flexible PC / PET LED Membrane Switch Tactile Matel Dome with Long Tail

Flexible PC / PET Tactile Mat'el Dome LED Membrane Switch with Long Tail





Applications:



Our membrane switches are widely used in :

· Medical Equipment

· Telecommunications apparatus

· Telephone systems

· Household appliances

· Security systems

· Point of sale apparatus

· Industrial controls

· Access control systems.....





Description:



Flat Printing Circuit
1) Custom made FPC
2) Rasing available
3) Membrane switch circuit
4) Withstand millions of cycles



Medical Equipment/Telecommunications apparatus/Telephone systems/Household appliances/Security systems/Point of sale apparatus/Industrial controls/Access control systems





LED Membrane Switch Performance



Keypad Switch Performance
Electrical Performance
Circuit Grade 35V(DC),100mA,1 W
Loop Resistance 10Ω - 500Ω(According the trace length and materials to confirm)
Insulation Resistance >100MΩ 250V(DC)
Dielectric Resistance 250VRms(50 - 60Hz/1 min)
Contact Chatter Time ≤5ms
Service Life flat type≥5 million times
tactile type:≥1 million times
Mechanical Properties
Operating Force flat type 57-284g (2-10 Oz)
tactile type 170-397g (6-14 Oz)
Switch Stroke flat type 0.1 - 0.5mm
tactile type 0.6 - 1.5mm
Environmental Parameters
Operating Temperature -20°C - +80°C
Storage Temperature -40°C - +85°C

Humidity

40°C,90%-95%,240 hours

















































Customize Membrane Switch


FLEXKYS provides the service of customizing various membrane switch, such as intergrading components into complex, custom user-interface assemblies.We can mount
your switch panel to a rigidbacker, housing, casing, or to additional printed circuit board assemblies.
We will do what we can to help you.





We manufacture complete line of membrane switches, our experienced
design team are ready to work with you to design membrane switches to meet
your unique needs of your project.
