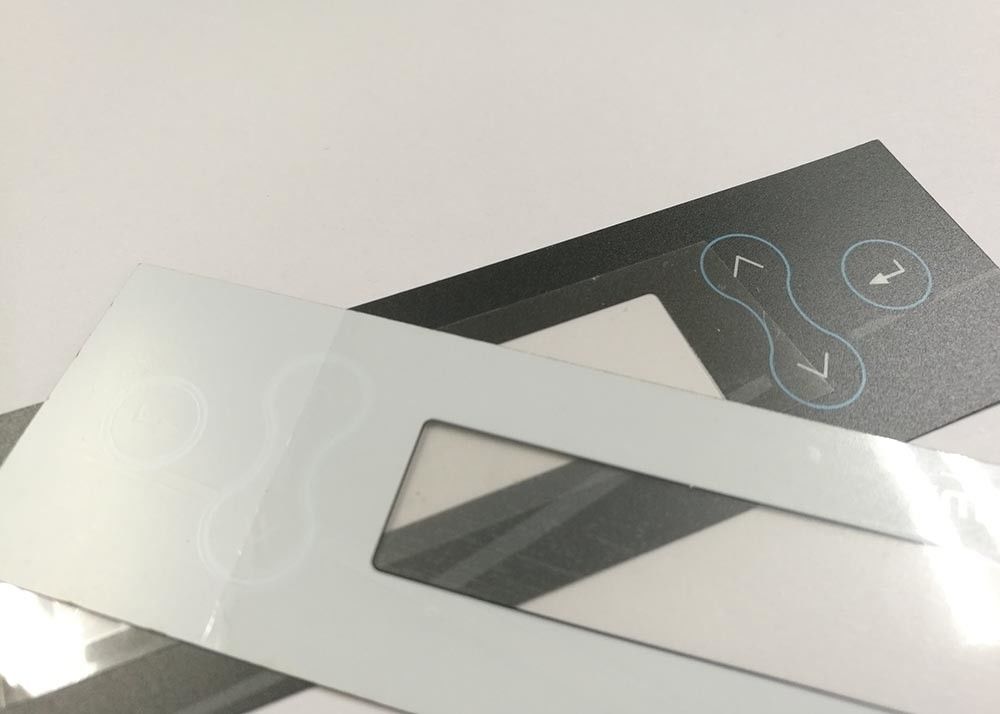

Multi Color Graphic Panel Overlay Without Emboss Customize Size
Membrane Control Panel Performance Index:
|Circuit rating||35V (DC), 100mA, 1W|
|Contact resistance||10Ω~500Ω (According the trace length and materials)|
|Insulation resistance||> 100MΩ 250V DC|
|Contact bounce||≤ 5ms|
|Dielectric withstand||250VRms (50~60Hz 1min)|
|Life expectancy||flat type ≥ 5 million times, tactile type ≥ 1 million times|
|Actuation force||flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz)|
|Switch stroke||flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm|
|Humidity||40°C, 90% ~95%, 240 hours
The keys of the graphic overlay are embossed, the metal dome is embedded in the circuit layer, and there is a retainer covering the metal dome. The appearance of this kind of membrane switch is stereoscopic. When you press the keys, there is a strong tactile feeling and the time of the keys snap-back is very short. There is no need for the operator to judge whether the switch is turned on by the sound signal or indicator lights given by the machine.
Description & Competitive Advantage:
1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.
3. Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.
4. Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5. Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6. Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes
Considering some customers aren't familiar with the technology applied in membrane switch, our company is willing to provide the switch design service for you. You just need to give us basic information of your requests such as operating conditions. We will devote ourselves to recommending the most suitable and cost-effective intergrated solution for you ,
while taking function, performance, aesthetics,
budget and time into consideration. What's more, you will become a member
of our design team, what we are designing will be In accordance with your request.
There is no doubt that our team are combining our strengths, experiences, and knowledge to serve you.
Customize Membrane Switch
FLEXKYS provides the service of customizing various membrane switch, such as intergrading components into complex, custom user-interface assemblies.We can mount
your switch panel to a rigidbacker, housing, casing, or to additional printed circuit board assemblies.
We will do what we can to help you.
we manufacture complete line of membrane switches, our experienced
Design team are ready to work with you to design membrane switches to meet
Your unique needs of your project.
