TKM Customized Multi Button Tactile Membrane Switch , Flat Membrane Switches

TKM Customized Multi Button Tactile Membrane Switch , Flat Membrane Switches

  • High Light

    custom membrane switch

    ,

    membrane touch switch

  • Overlay
    F200
  • Circuit
    Flexible Cable Circuit And Pins
  • Overlay Color
    Rich
  • Usage
    Control Switch
  • Type
    Flexible
  • Rear Adhesive
    3M467
  • Material
    FPC/ PET/ PC
  • Technology
    Silk Screen Printing
  • Feature
    Water-proof
  • Place of Origin
    China
  • Brand Name
    TKM
  • Certification
    ISO9001:2008, SGS,Rohs
  • Model Number
    TKM-023
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    Polybag per pcs,50per cartoon
  • Delivery Time
    15-20days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    1000000Pieces per month

TKM Customized Multi Button Tactile Membrane Switch , Flat Membrane Switches

TKM Customized High Quality Multi Button Flat Membrane Switches





Membrane Switch Performance Index:





1.Electronic characteristics

Circuit rating 35V (DC), 100mA, 1W
Contact resistance 10Ω~500Ω (According the trace length and materials)
Insulation resistance > 100MΩ 250V DC
Contact bounce ≤ 5ms
Dielectric withstand 250VRms (50~60Hz 1min)
Life expectancy flat type ≥ 5 million times, tactile type ≥ 1 million times



2.Mechanical Properties

Actuation force flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz)
Switch stroke flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm



3.Environmental parameters

Operating Temperature -40°C~+80°C
Storage temperature -40°C~+85°C
Humidity 40°C, 90% ~95%, 240 hours




Product construction

TKM Customized Multi Button Tactile Membrane Switch , Flat Membrane Switches 0

Feature:

1.Light weight
2.small volume
3.long service life
4.Dampproof, dustproof
5.durable, seismic, lead wire resistance around thefracture well
6.Vacuum molding touch type key, switching type connector, set LED as a whole, convenient installation



Environmental


Storage Temperature: -40°C (-40°F) to +70°C (158°F).
Storage Altitude: Sea level to 35,000 feet.
Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F). Can be
designed to operate in most environments.
Humidity: No delamination after 24 hours at 80°C and 90%RH.




Applications:



Products are widely used in communication, industrial control, household

appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,

Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,

Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.

Remote control, control board for home appliances, medical equipment , auto, computer and cell phone, etc.

Both OEM and ODM orders are welcome.



Product show

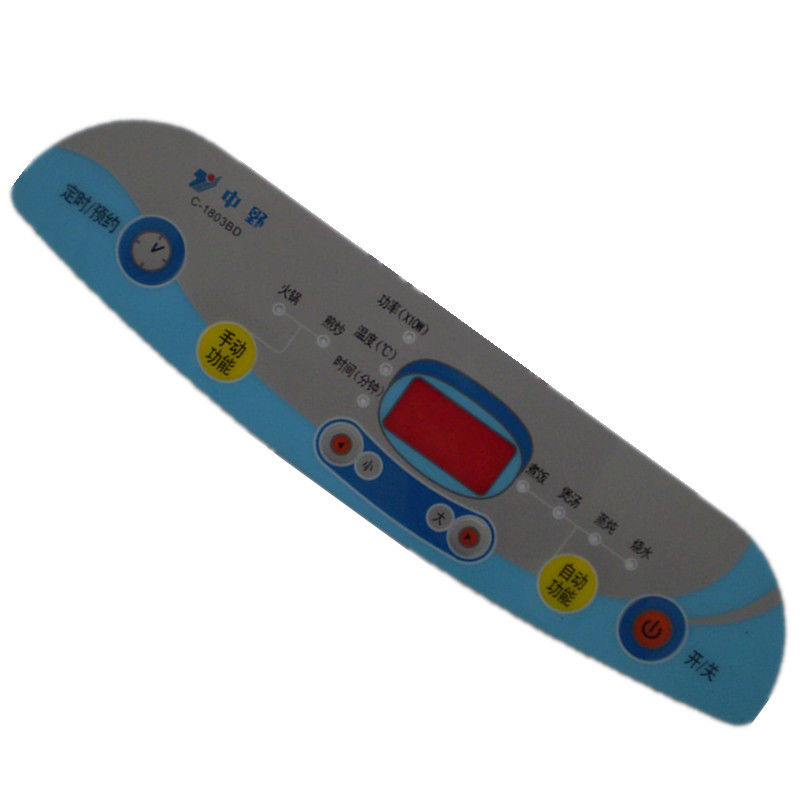

TKM Customized Multi Button Tactile Membrane Switch , Flat Membrane Switches 1TKM Customized Multi Button Tactile Membrane Switch , Flat Membrane Switches 2TKM Customized Multi Button Tactile Membrane Switch , Flat Membrane Switches 3





Competitive Advantage:



1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.

2. Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.

3. Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.

4. Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.

5. Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.

6. Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.

7. Customized specification is available and keys can make different shapes



Workshop

TKM Customized Multi Button Tactile Membrane Switch , Flat Membrane Switches 4



Our Services

1. OEM Order welcome: Product, Package...
2. Sample order Before mass production
3. We will reply you for your inquiry within 24 hours.
4. After sending sample, we will provide tracking number,when you got sample, test sample, if there's problem with the sample, please contact with us, we will solve problem at the first time.
