PET Custom Membrane Switch Panel With Multi Keys / Embossing Tactile Button

PET Custom Membrane Switch Panel With Multi Keys / Embossing Tactile Button

  • Highlight

    membrane touch switch

    ,

    keyboard membrane switch

    ,

    Membrane Switch Panel With Multi Keys

  • Circuit
    Flexible Cable Circuit And Pins
  • Usage
    Control Switch
  • Type
    Flexible
  • Material
    PET
  • Connector
    Female Connector
  • Color
    Rich
  • Place of Origin
    China
  • Brand Name
    TKM
  • Certification
    ISO9001:2008, SGS,Rohs
  • Model Number
    TKM-599
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    Polybag per pcs,50per cartoon
  • Delivery Time
    15-20days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pieces per month

PET Custom Membrane Switch Panel With Multi Keys / Embossing Tactile Button



Tactile Membrane Switch, Multi Keys Embossing Tactile Button And Rich Color





Product Features



1) Light weight

2) Mlutiple keys

3) Rich color

4) Custom design

5) small volume
6) long service life
7) Dampproof, dustproof
8) durable, seismic, lead wire resistance around thefracture well
9) Vacuum molding touch type key, switching type connector, convenient installation




Environmental


Storage Temperature: -40°C (-40°F) to +70°C (158°F).
Storage Altitude: Sea level to 35,000 feet.
Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F). Can be
designed to operate in most environments.
Humidity: No delamination after 24 hours at 80°C and 90%RH.



Membrane Switch Performance Index





1.Electronic characteristics

Circuit rating 35V (DC), 100mA, 1W
Contact resistance 10Ω~500Ω (According the trace length and materials)
Insulation resistance > 100MΩ 250V DC
Contact bounce ≤ 5ms
Dielectric withstand 250VRms (50~60Hz 1min)
Life expectancy flat type ≥ 5 million times, tactile type ≥ 1 million times



2.Mechanical Properties

Actuation force flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz)
Switch stroke flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm



3.Environmental parameters

Operating Temperature -40°C~+80°C
Storage temperature -40°C~+85°C
Humidity 40°C, 90% ~95%, 240 hours





Competitive Advantage



1) Hard wear

2) Corrosion resistance
3) High transmittance
4) Control feel smooth
5) High reliability





Applications



Products are widely used in communication, industrial control, household

appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,

Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,

Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.

Remote control, control board for home appliances, medical equipment , auto, computer and cell phone, etc.

Both OEM and ODM orders are welcome.





Product Show

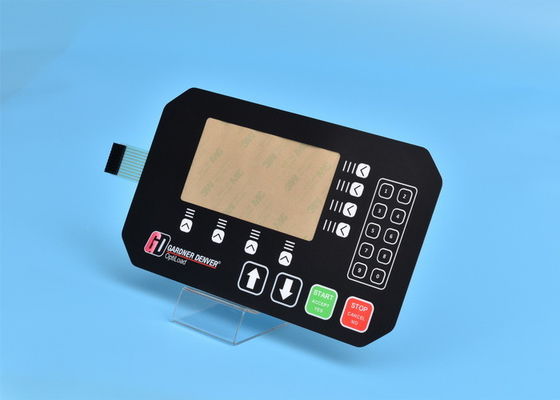

PET Custom Membrane Switch Panel With Multi Keys / Embossing Tactile Button 0



We manufacture complete line of membrane switches, our experienced design team are ready to work with you to design membrane switches to meet your unique needs of your project.
