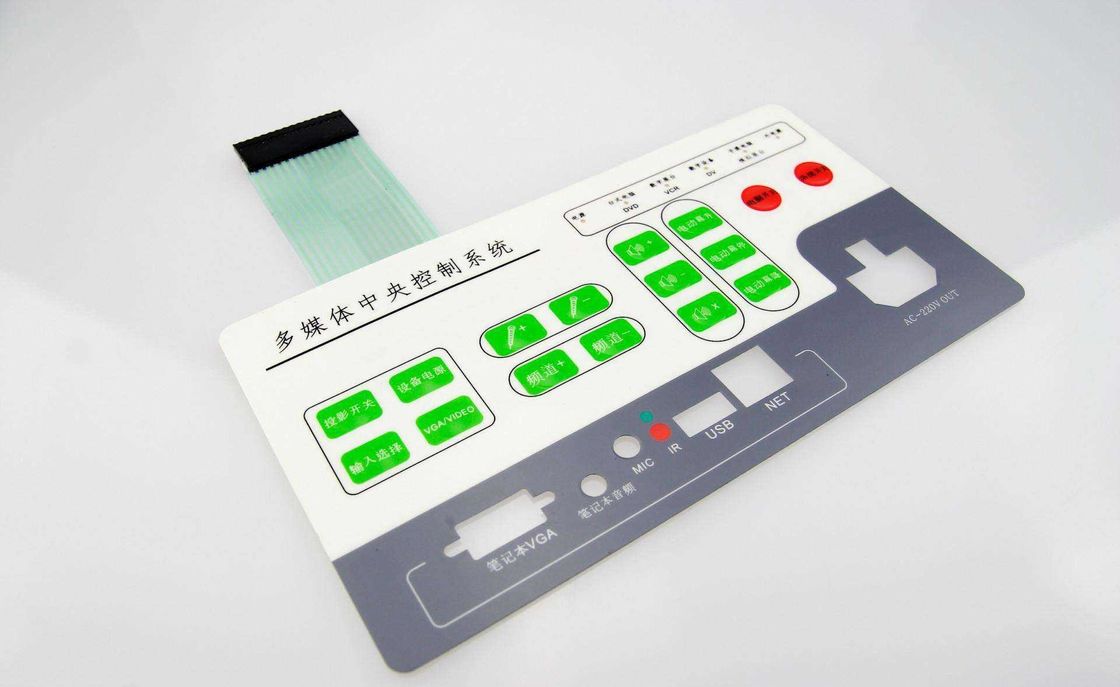

Touch Screen PCB circuit Membrane Control Panel PMMA Bottom PET Overlay

Touch Screen PCB circuit Membrane Control Panel PMMA Bottom PET Overlay

  • High Light

    FRCP Membrane Control Panel

    ,

    PET Membrane Control Panel

    ,

    ODM Membrane Panel Switch

  • Overlay
    PET
  • Bottom
    PMMA
  • Circuit
    PCB
  • Color
    Transparent,red,yellow,
  • Feature
    G+G,G+F,G+P
  • Application
    Electric Products
  • Place of Origin
    China
  • Brand Name
    TKM MS
  • Certification
    ISO9001:2008, SGS,Rohs
  • Model Number
    TKM--MS--284
  • Minimum Order Quantity
    100pcs
  • Price
    negotiation
  • Packaging Details
    Polybag per pcs,50per cartoon
  • Delivery Time
    15-20days
  • Payment Terms
    T/T or L/C
  • Supply Ability
    100000Pieces per month

Touch Screen PCB circuit Membrane Control Panel PMMA Bottom PET Overlay

Membrane Switches​ , 3M468 Adhesive


Quick Detail:


Name

FRCP

Application

Electric products

Color

Transparent,red,yellow,

green,blue.Pink.,purple

Feature

G+G,G+F,G+P

   Contacts

Customized

Surface hardness

>7

Operating Temperature

OPL = -10, TOPH =60

Storage Temperature

TSTL = -20, TSTH





Membrane Switches​  Descriptions:


Flexible Remote Control Panels
1) Custom made OEM/ODM
2) Precise silk screen printing overlay add touch screen panel
3) Rich colors
4) High sensity & High quality
5) Environment Friendly
6) Perfect exterior
6) Raw Materials: PET film overlay+ touch panel





Applications:


Our membrane switches are widely used in :
• Medical Equipment
• Telecommunications apparatus
• Telephone systems
• Household appliances
• Security systems
• Point of sale apparatus
• Industrial controls
• Toys



Membrane Switches​ Competitive Advantage:
Hard wear,
corrosion resistance,
high transmittance,
control feel smooth,
high reliability




Membrane Switches​  Specifications



Lens Color

Customized

Input force

                          <10g

Surface hardness

>6H

Interface Type

IIC

      IC Type IC

FT5406

    Number of touchpoint

5,10

Sensor thickness ITO

0.55mm

TP size

7inch

View Area

190.02*133.47mm

Active Area(W*L)

193.02*136.47mm

Outline

Drawings subject to confirmation

Coverlens thickness

0.7mm
