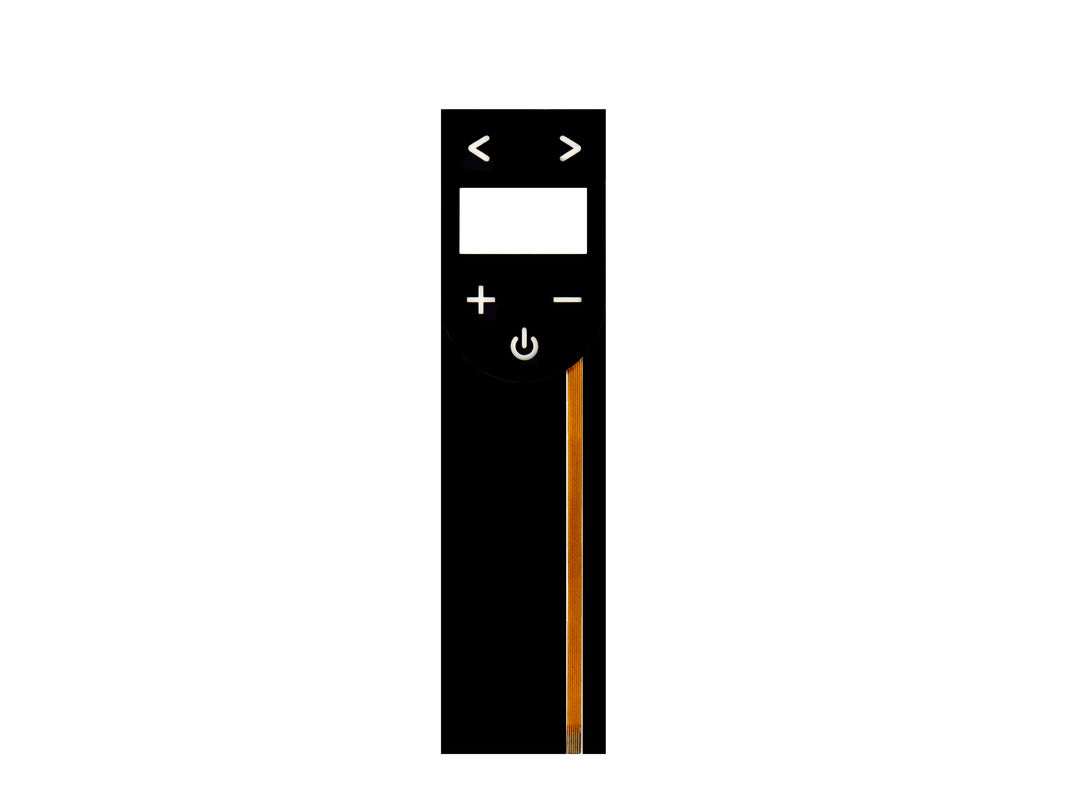

Waterproof Membrane Switch with Poly Dome and Silk Screen Printing

Waterproof Membrane Switch with Poly Dome and Silk Screen Printing

  • Highlight

    waterproof membrane switch poly dome

    ,

    silk screen printed membrane switch

    ,

    poly dome tactile membrane switch

  • Insulation Resistance
    ≥100MΩ
  • Pitch Of Contact
    1.0MM Or Other Request
  • Print
    Silk Screen Printing
  • Dome
    Poly Dome
  • Working Voltage
    ≤ 50VDC
  • Lcd Option
    Clear Window
  • Loop Resistance
    10Ω - 500Ω
  • Certifications
    RoHS, CE, UL
  • Brand Name
    TKM

Waterproof Membrane Switch with Poly Dome and Silk Screen Printing

Waterproof Membrane Switch with Poly Dome and Silk Screen Printing
Product Attributes
Attribute Value
Insulation Resistance ≥100MΩ
Pitch Of Contact 1.0MM Or Other Request
Print Silk Screen Printing
Dome Poly Dome
Working Voltage ≤ 50VDC
Lcd Option Clear Window
Loop Resistance 10Ω - 500Ω
Certifications RoHS, CE, UL
Product Description

The Waterproof Membrane Switch is a versatile and reliable product designed to provide a seamless user experience in various environments. With a working voltage of ≤ 50VDC, this membrane switch ensures efficient performance while maintaining safety standards.

One of the key features of this product is its flat design, making it suitable for applications where space is limited or where a sleek aesthetic is desired. The waterproof membrane switch is equipped with a Water-tight Switch Cover that protects the internal components from moisture and other environmental factors, ensuring durability and longevity.

For added convenience, the membrane switch is designed with Silk Screen Printing, allowing for clear and durable labeling that is resistant to wear and tear. This feature enhances the usability of the switch and ensures that the labels remain legible over time.

The Poly Dome used in the membrane switch provides a tactile response to user input, enhancing the overall user experience. The dome is durable and reliable, ensuring consistent performance even with frequent use.

When it comes to the circuitry, the Waterproof Membrane Switch features a Flexible Cable Circuit And Pins, offering flexibility and reliability in electrical connections. This design allows for easy installation and maintenance, saving time and effort during setup and troubleshooting.

Whether used as a Waterproof Keyboard Overlay, Water-resistant Touch Panel, or Water-tight Switch Cover, this membrane switch is a versatile solution for various applications. Its waterproof and water-resistant properties make it suitable for use in environments where exposure to moisture is a concern.

The Waterproof Membrane Switch is ideal for industries such as medical, industrial, marine, and outdoor applications where reliability and durability are essential. Its robust construction and reliable performance make it a valuable component in any electronic system.

Overall, the Waterproof Membrane Switch offers a combination of functionality, durability, and versatility, making it a reliable choice for demanding applications. With its flat design, Silk Screen Printing, Poly Dome, and Flexible Cable Circuit And Pins, this membrane switch provides a user-friendly interface that is built to last.

Features
  • Product Name: Waterproof Membrane Switch
  • Feature: Waterproof
  • Dome: Poly Dome
  • Print: Silk Screen Printing
  • Pitch Of Contact: 1.0MM Or Other Request
  • Type: Membrane Switch
Technical Parameters
Parameter Value
LED Voltage 3V-6V
Circuit Flexible Cable Circuit And Pins
LED Type Everlight
LCD Option Clear Window
Loop Resistance 10Ω - 500Ω
Certifications RoHS, CE, UL
Working Voltage ≤ 50VDC
Customization Custom Membrane Switch
Flat Design Yes
Pitch Of Contact 1.0MM Or Other Request
Applications

The Waterproof Membrane Switch is a versatile product that is ideal for a wide range of applications due to its water-tight switch cover. This innovative switch is designed with a poly dome that provides a tactile response for users, ensuring a satisfying user experience. With its flat design, this rain-proof membrane pad is sleek and modern, making it suitable for various scenarios.

One of the key features of this moisture-blocking membrane control is its flexible cable circuit and pins, which allow for easy installation and integration into different devices and equipment. The LED type used in this membrane switch is Everlight, ensuring bright and efficient lighting for visibility in any environment.

The Waterproof Membrane Switch is perfect for outdoor use, such as in industrial settings where the switch may be exposed to water, dust, or other elements. Its water-tight cover ensures that the switch remains functional even in harsh conditions, making it a reliable choice for outdoor equipment and machinery.

Additionally, this membrane switch is also suitable for medical devices, where cleanliness and hygiene are of utmost importance. The rain-proof membrane pad can be easily cleaned and sanitized, making it an ideal choice for medical equipment that requires regular maintenance.

Overall, the Waterproof Membrane Switch is a durable and versatile product that can be used in a wide range of applications. Its innovative design, flexible circuit, and Everlight LED make it a top choice for industries that require a reliable and high-performance membrane switch.
