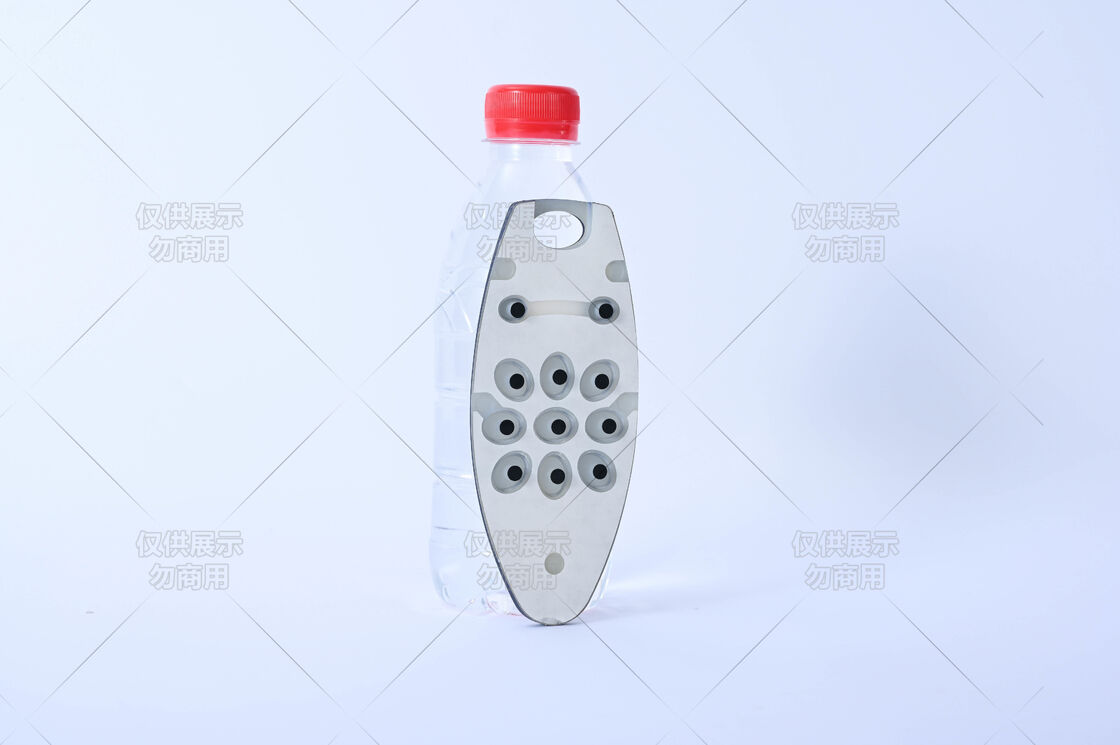

Membrane Switch Tactile Switch Panel Featuring Insulation Resistance ≥100MΩ Component for Electronic Control Applications
-
Highlight
membrane switch tactile panel
,insulation resistance membrane switch
,electronic control membrane switch
-
Operating Voltage≤50V
-
Insulation Resistance≥100MΩ
-
StructureCustom
-
TypeMembrane Switch
-
PrintngScreen Printing, CMYK Printing
-
PortShen Zhen
-
CircuitFPC Foil, PET, Flexible Circut, PCB
-
CertificatedISO9001 /ROHS/SGS
-
Place of OriginDongguan China
-
Brand Nametkm
Membrane Switch Tactile Switch Panel Featuring Insulation Resistance ≥100MΩ Component for Electronic Control Applications
The Rubber Membrane Switch is a highly versatile and reliable input solution engineered for modern electronic devices and industrial applications. Featuring advanced conductive membrane button technology, this product delivers responsive tactile feedback and exceptional performance in every press.
Insulation resistance rated at ≥100MΩ ensures excellent electrical isolation between circuits, enhancing reliability and safety in various operating environments.
- Product Name: Rubber Membrane Switch
- Type: Membrane Switch
- Overlay Color: Customized to meet specific design requirements
- Operating Voltage: ≤50V for safe and efficient performance
- Printing Options: Screen Printing, CMYK Printing for vibrant and precise graphics
- LED Colors Available: Green, Yellow, Red, White, Blue
- Elastomeric Keypad for responsive and comfortable user experience
- Tactile Switch Panel providing reliable feedback with each press
- Conductive Membrane Buttons ensuring consistent electrical contact
| Parameter | Specification |
|---|---|
| Operating Voltage | ≤50V |
| LED Colors | Green, Yellow, Red, White, Blue |
| Contact Bounce | ≤5ms |
| Circuit | FPC Foil, PET, Flexible Circuit, PCB |
| Connector | CJT |
| Printing | Screen Printing, CMYK Printing |
| Overlay Color | Customized |
| Surface Treatment | Matte or Glossy |
This versatile membrane switch is ideal for various applications including:
- Medical devices requiring hygiene and reliability
- Consumer electronics such as remote controls and gaming consoles
- Industrial control panels and machinery
- Automotive dashboard controls
- Wearable technology and portable instruments
We specialize in providing customized Rubber Membrane Switch solutions tailored to your specific requirements. Our services include:
- Custom surface treatments (matte or glossy finishes)
- Multiple circuit options (FPC Foil, PET, Flexible Circuit, PCB)
- Advanced printing techniques for clear labeling and branding
- Prototyping and testing services
Our comprehensive support includes technical assistance, custom design consultation, and maintenance guidance to ensure optimal performance and longevity of your membrane switch.
For optimal performance, follow installation instructions carefully and avoid exposure to extreme temperatures, moisture, or abrasive chemicals. Regular cleaning with a soft, damp cloth will maintain responsiveness and appearance.
