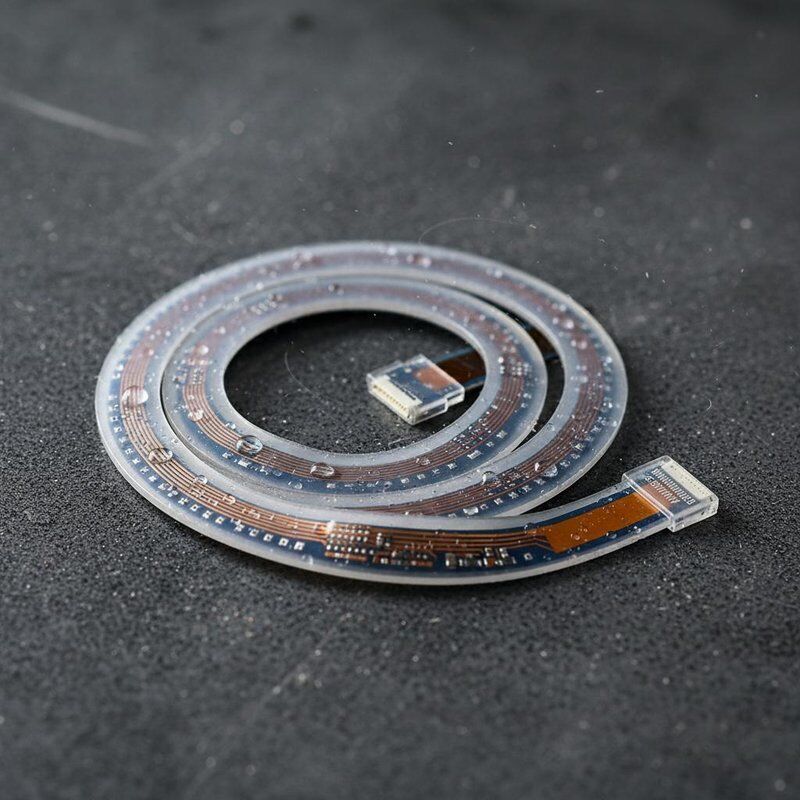

Waterproof And Dustproof Flexible Printed Circuit Coated Options Engineered for Long Term Reliability and Environmental Resistance
-
Highlight
waterproof flexible membrane switch
,dustproof flexible printed circuit
,environment resistant membrane switch
-
PrintingScreen Printing
-
Integral IndicatorWith LCD Display
-
Rated Voltage30V
-
ColoroptionsMultiple Colors Including Transparent, Black, White
-
LifecycleUp To 1 Million Cycles
-
EnvironmentalresistanceWaterproof And Dustproof Options Available
-
Mount WayRear Panel Mount
-
Voltage220V/1Ph/60Hz Or 460V/3Ph/60Hz
-
Brand NameTkm
Waterproof And Dustproof Flexible Printed Circuit Coated Options Engineered for Long Term Reliability and Environmental Resistance
Waterproof And Dustproof Flexible Printed Circuit Coated Options Engineered for Long Term Reliability and Environmental Resistance
Product Overview
The Flexible Membrane Switch is an advanced input solution designed to meet demanding requirements of modern electronic devices and industrial applications. Engineered with precision and durability, this product complies with rigorous standards including ASTM, GB, JIS, and EN, ensuring consistent performance across various environments and sectors.
Featuring Capacitive Touch Switch technology, this membrane switch provides highly responsive and intuitive user interface by detecting electrical properties of the human body. This enables smooth, accurate touch interactions without mechanical parts, significantly reducing wear and enhancing device lifespan.
Key Features
- Product Name: Flexible Membrane Switch
- Printing Method: Screen Printing
- Integral Indicator: Equipped with LCD Display
- Circuit Material: 0.125mm PET Flexible Printed Circuit
- Standards Compliance: ASTM, GB, JIS, EN
- Mounting Method: Rear Panel Mount
- Features Adjustable Pressure Switches for customizable responsiveness
- Includes Capacitive Touch Switch technology for enhanced user interaction
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage | 220V/1Ph/60Hz Or 460V/3Ph/60Hz |
| Integral Indicator | With LCD Display |
| Mount Way | Rear Panel Mount |
| Surface Treatment | Coated |
| Key Layout | Accept Free Custom |
| Environmental Resistance | Waterproof And Dustproof Options Available |
| Rated Voltage | 30V |
| Standard | ASTM GB JIS EN |
| Circuit | 0.125mm PET |
| Operating Temperature | -40°C To 85°C |
Applications
The Tkm Flexible Membrane Switch is ideal for various demanding environments with a lifecycle of up to 1 million cycles. Available in multiple colors including transparent, black, and white, it seamlessly integrates into different product designs and aesthetics.
Primary Applications:
- Consumer Electronics: Remote controls, handheld gadgets, and home appliances
- Industrial Settings: Control panels, machinery interfaces, and instrumentation
- Medical Devices: Intuitive and hygienic control panels for healthcare environments
- Automotive Industry: Dashboard controls, infotainment systems, and climate control interfaces
Customization Services
Tkm offers comprehensive customization services for Flexible Membrane Switches to meet specific requirements. Customize key layouts, electrical specifications, and environmental resistance options to suit your operational needs.
Customization Options:
- Integral indicator with LCD display
- Freely customizable key layouts
- Waterproof and dustproof options
- 0.125mm PET circuit construction
- Voltage options: 220V/1Ph/60Hz or 460V/3Ph/60Hz
Support & Services
Our technical support team provides comprehensive assistance with product inquiries, installation guidance, and troubleshooting. We offer customized design services including tailored shapes, sizes, and circuit configurations.
Maintenance Guidelines:
- Avoid excessive bending or folding beyond specified limits
- Keep switch clean from dust and moisture
- Clean with soft, damp cloth and mild detergent only
- Do not use abrasive materials or solvents
- Replacement parts and accessories available
Packaging & Shipping
Each Flexible Membrane Switch is individually wrapped in anti-static and moisture-resistant materials, then placed in sturdy cardboard boxes with cushioning materials. Bulk orders are palletized with shrink wrapping for safe handling.
Shipping Options: Air freight, sea freight, and express courier services with tracking information provided.
Frequently Asked Questions
What is a Flexible Membrane Switch by Tkm?
The Flexible Membrane Switch by Tkm is a thin, flexible electronic interface that allows users to control devices through a tactile, durable, and customizable surface designed for reliable performance in various applications.
What materials are used in Tkm's Flexible Membrane Switch?
Tkm's Flexible Membrane Switch is made from high-quality polyester or polycarbonate films combined with conductive inks and adhesive layers, ensuring durability, flexibility, and excellent electrical performance.
Can the design of the Tkm Flexible Membrane Switch be customized?
Yes, Tkm offers fully customizable Flexible Membrane Switches to meet specific design requirements, including size, shape, color, graphics, and key layout to suit various applications.
What industries commonly use Tkm Flexible Membrane Switches?
Tkm's Flexible Membrane Switches are widely used in medical devices, consumer electronics, industrial controls, automotive dashboards, and home appliances due to their versatility and reliability.
How does the Flexible Membrane Switch from Tkm contribute to device functionality?
The Tkm Flexible Membrane Switch provides a responsive and tactile user interface that improves device usability, reduces wear and tear, and allows for seamless integration with electronic circuits.
