Highlight
rubber membrane keyboard switch
,silicone keypad membrane switch
,keyboard rubber switch with warranty
-
Size160.00mm * 70.00mm * 11.00mm (H)
-
Keys27 PCS
-
MaterialSilicone Rubber 1 Color
-
Actuation Force200g+/-50g
-
Conductive Pills27 PCS Of Carborn Pills, Dia: 9mm*5mm
-
Key Travel2.20mm
-
Base Thickness4.6mm
-
Wire Lead Resistance<1Ω/CM
-
Life Time> 1 Million Times
-
Rated Current25-100mA,0~30V DC
-
Operation Temperature-40ºC~70ºC
-
Rated Voltage<50V, DC
-
Operation HumidityAt40ºC,<98%RH
-
Insulation Resistance<100MΩ,250V DC
-
Dome Springback Time<5 Msec
Keypads Keyboard Rubber Membrane Silicone Switch
Keypads Keyboard Rubber Membrane Silicone Switch
Professional silicone rubber membrane switches featuring 27 keys with carbon conductive pills,
designed for reliable performance in various industrial and commercial applications.
Product Specifications
- Dimensions: 160.00mm × 70.00mm × 11.00mm (H)
- Key Configuration: 27 silicone rubber keypads
- Material: High-quality silicone rubber (single color)
- Actuation Force: 200g ±50g
- Conductive Pills: 27 carbon pills, 9mm diameter × 5mm
- Key Travel: 2.20mm
- Base Thickness: 4.6mm
Technical Specifications
| Wire Lead Resistance | < 1Ω/CM | Life Time | > 1 Million times |
|---|---|---|---|
| Rated Current | 25-100mA, 0~30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | < 50V, DC | Operation Humidity | at 40ºC, < 98%RH |
| Insulation Resistance | < 100MΩ, 250V DC | Dome Springback Time | < 5 msec |
| Switch Travel | Flat Type 0.05-0.3mm / Tactile Type 0.3-1.5mm | Base Material Voltage Withstand | 1500 V DC |
| Tail Flexibility | Any angle within 180 degrees | ||
Material Composition
Base Material: PET/PC
Adhesive: 3M467 & 3M468 or as per request
Certifications: ISO9001:2008, SGS, RoHS
Adhesive: 3M467 & 3M468 or as per request
Certifications: ISO9001:2008, SGS, RoHS
Key Features
- Membrane switch with windows
- Touch feeling keys with embossing
- Silk screen printing
- Perfect exterior finish
- Over 1 million life cycle
Applications
- Medical Equipment
- Telecommunications Apparatus
- Telephone Systems
- Household Appliances
- Security Systems
- Industrial Controls
Commercial Terms
MOQ: 50pcs
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval
Production Lead Time: 15-22 days after sample approval
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval
Production Lead Time: 15-22 days after sample approval
Company Advantages
- Experienced top management in the field
- Professional staff and skilled workers
- Strong R&D capability
- Quick delivery service
- Competitive pricing
- Two factories available for large orders
- Expert sales team and excellent customer service

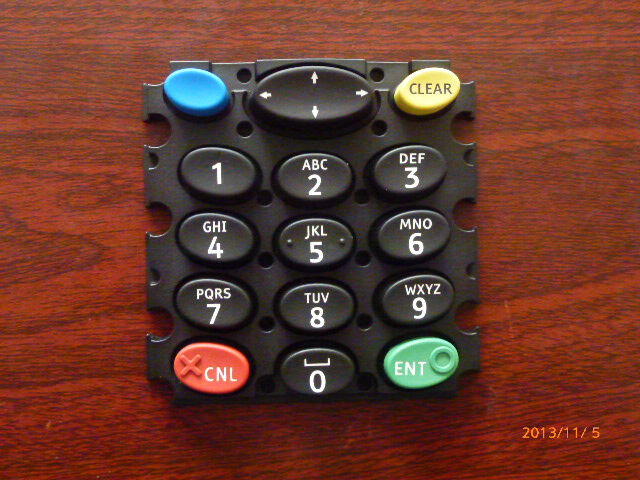

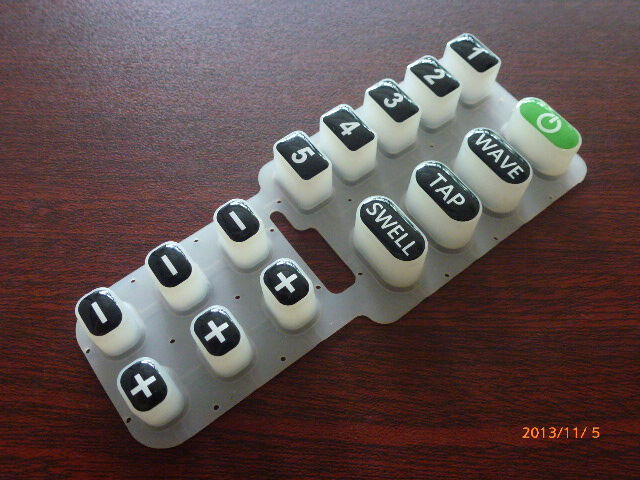

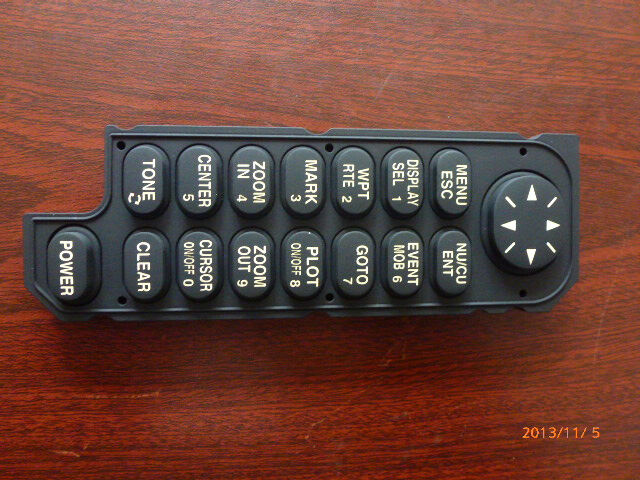

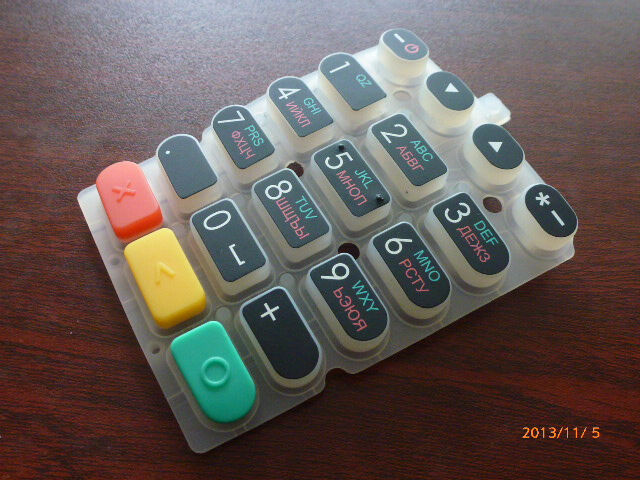

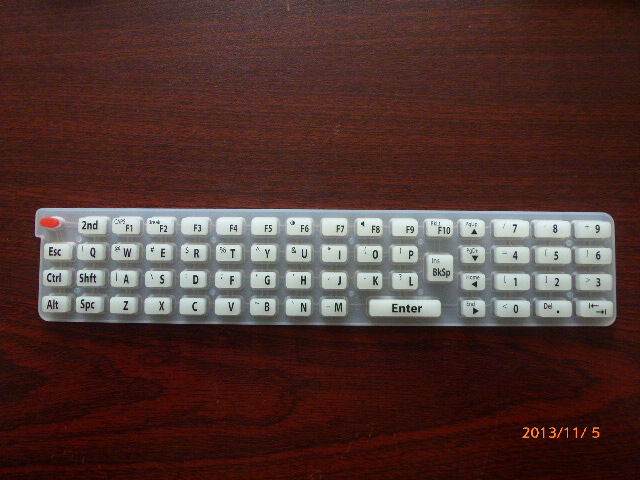

Product Images
