Highlight
silicone rubber keypad overlay
,rubber membrane switch keypad
,key control overlay silicone
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
MaterialSilicone Rubber
-
ThicknessThin
-
Abrasion ResistanceGood
-
TactilityGood
-
Moisture ResistanceGood

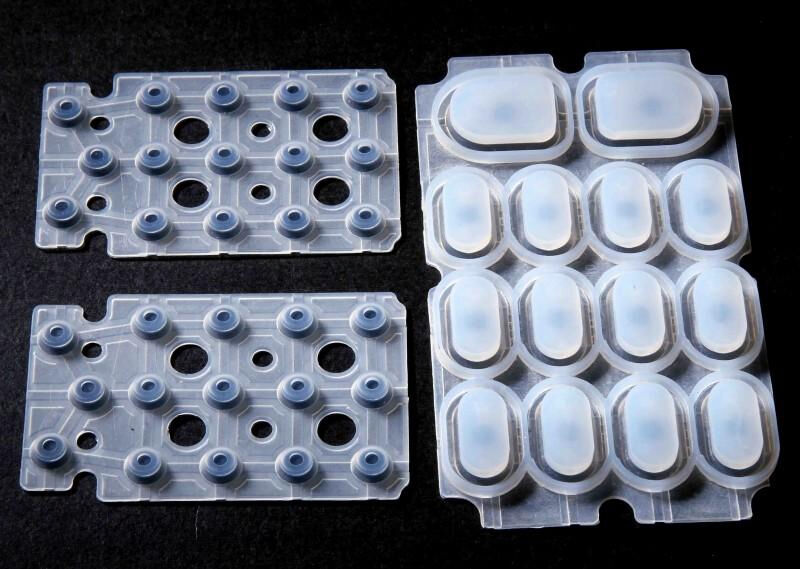

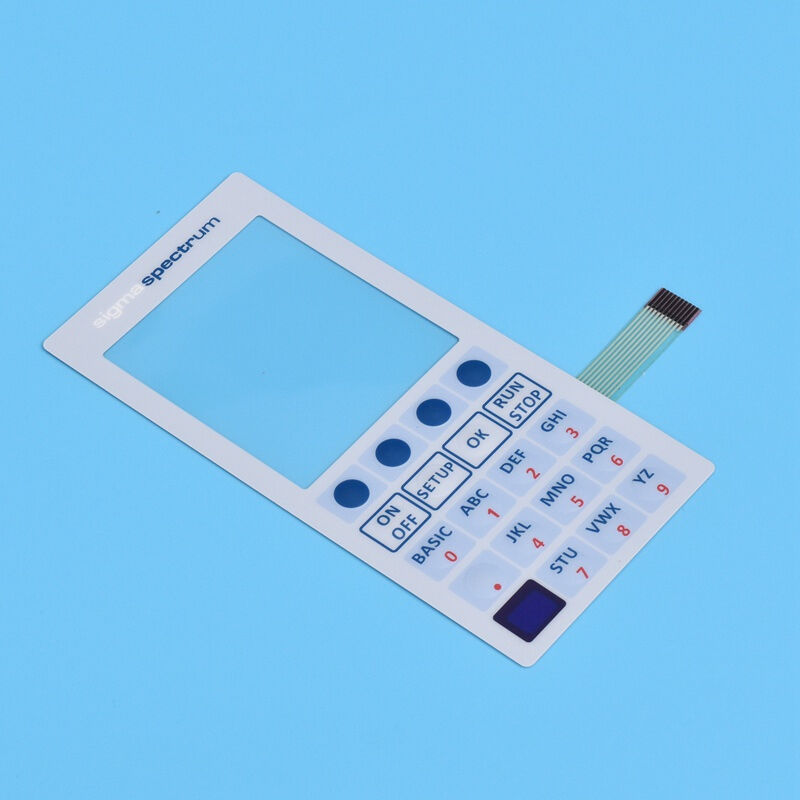

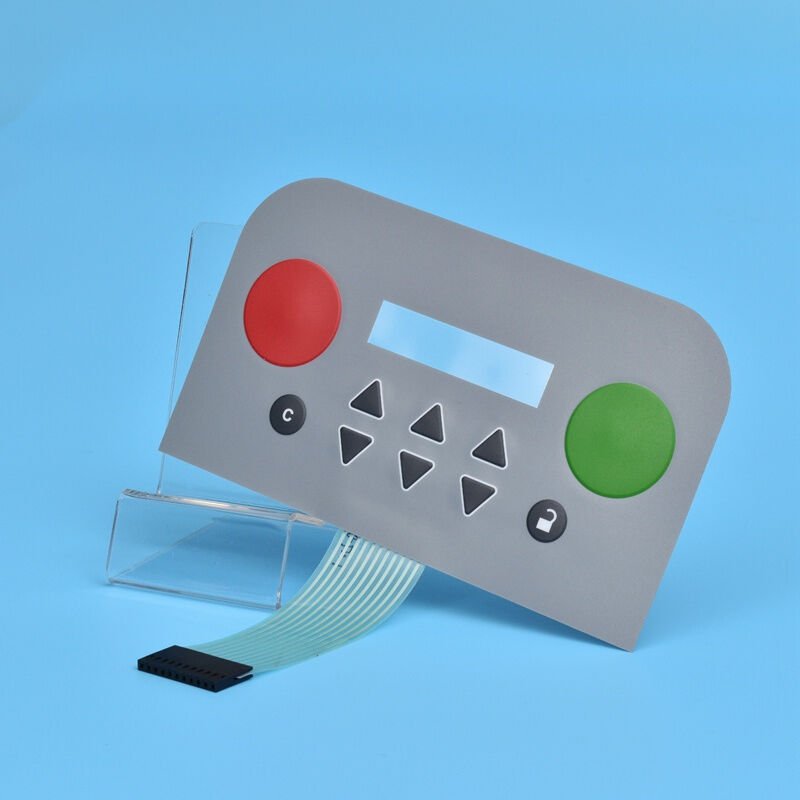

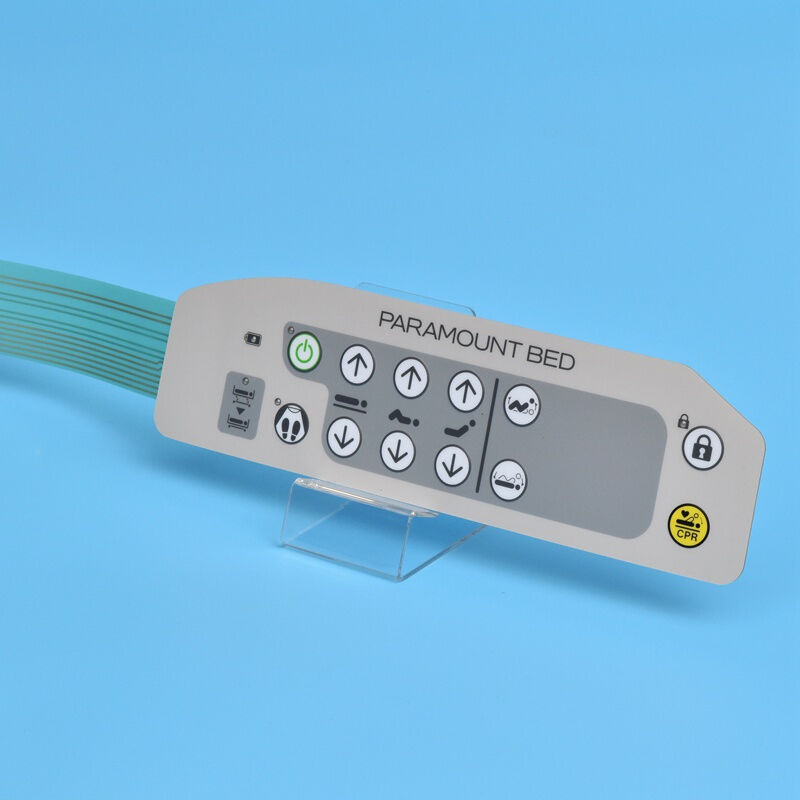

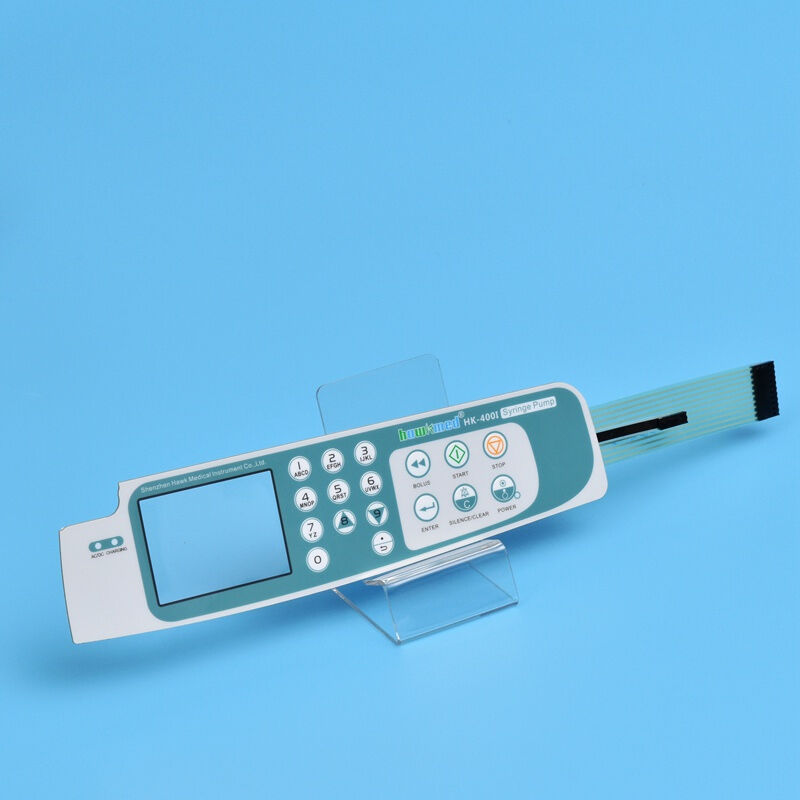

Silicone Rubber Keypad Button Key Control Overlay
Silicone Rubber Keypad Button Key Control Overlay
With over ten years of design and manufacturing experience in membrane switches and silicone rubber keypads, we deliver reliable solutions for electronics, appliances, medical equipment, and military vehicles. Our products serve more than 100 satisfied customers worldwide with consistent quality and performance.
Competitive Advantages
- Custom Design Flexibility: Beautiful appearance with rich, vibrant colors and unlimited design possibilities to reflect your product's unique style
- Durable Surface Protection: Washable panel with excellent color retention, protecting characters, logos, and graphics from damage
- Compact & Lightweight: Small size, thin profile, lightweight construction with excellent tactile feedback and abrasion resistance
- Superior Environmental Protection: Excellent sealing properties providing moisture-proof, dust-proof, waterproof, oil-resistant, and corrosion-resistant performance
- Cost-Effective & Long-Lasting: Low production costs with lifespan exceeding 100 million cycles across various membrane switch types
- Reliable Operation: Intuitive, safe operation with 100% functional testing and guaranteed component reliability
- Custom Specifications: Available in customized specifications with various key shapes to meet specific application requirements
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Service Life | >1 million cycles | Operating Humidity | 40°C, <98% RH |
| Response Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Cable Flexibility | Any angle within 180° | Switch Travel | Flat Type: 0.05-0.3mm Tactile Type: 0.3-1.5mm |
