Concave-Convex Tactile Membrane Switch Keyboard High Sensivity Rubber Key
-
Highlight
concave-convex tactile membrane switch
,high sensitivity rubber key
,rubber membrane switch keyboard
-
Transmission Distance>100m
-
MaterialRubber
-
Voltage3V
-
TypeButton
-
Signal TransmissionIR Remote Control
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
CertificationISO9001, RoHS
-
Minimum Order Quantity100
Concave-Convex Tactile Membrane Switch Keyboard High Sensivity Rubber Key
Concave-Convex Tactile Membrane Switch Keyboard with High Sensitivity Rubber Key
With over ten years of design and manufacturing expertise in membrane switches and silicone rubber keypads, our products are widely used in electronics, appliances, medical equipment, and military vehicles. We proudly serve more than 100 stable customers worldwide with our premium quality and service.
Competitive Advantages
- Beautiful appearance with rich, vibrant colors and customizable designs that reflect your product's unique style
- Washable panel with excellent protection for durable colors, characters, logos, and other content
- Compact, lightweight design with thin profile, excellent tactile feedback, and abrasion resistance
- Superior sealing properties providing protection against moisture, dust, water, oil, corrosion, harmful gases, acids, alkalis, and vibration
- Cost-effective solution with high lifespan exceeding 100 million cycles
- Easy to operate with intuitive, safe, and reliable performance - 100% functionally tested
- Custom specifications available with various key shapes and configurations
Technical Specifications
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98%RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm Tactile Type: 0.3-1.5mm |

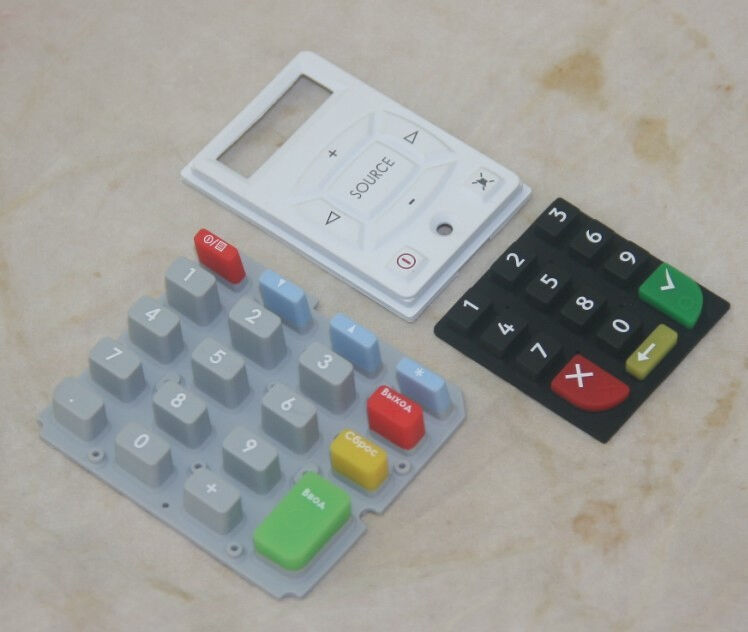

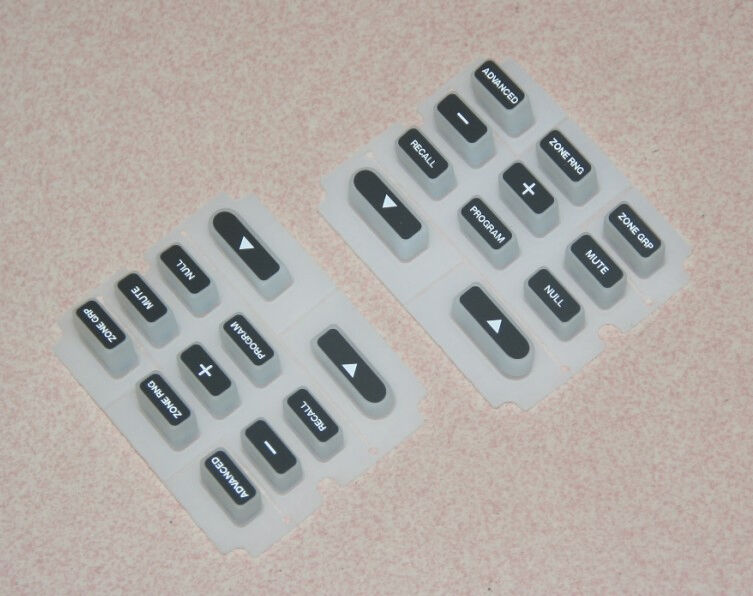

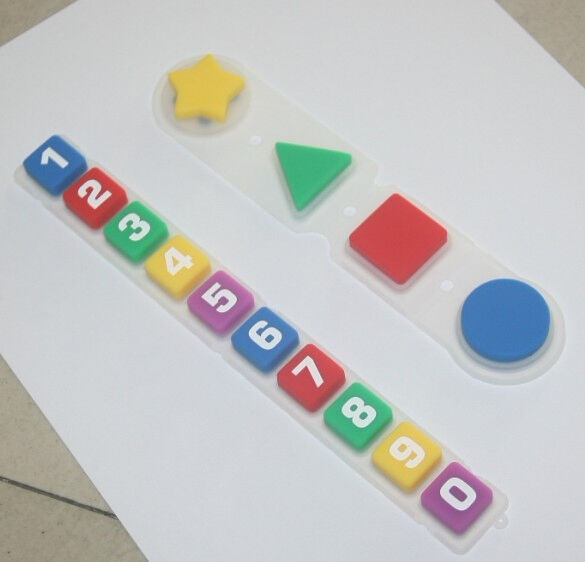

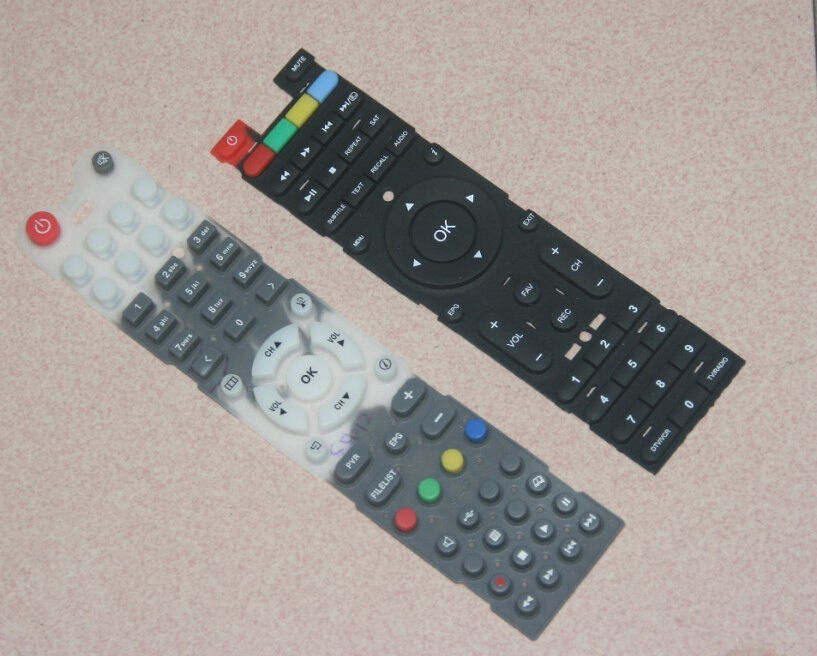

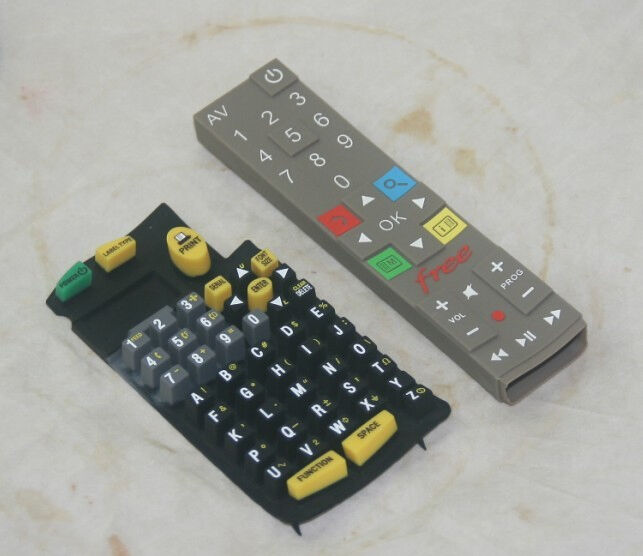

Product Images
