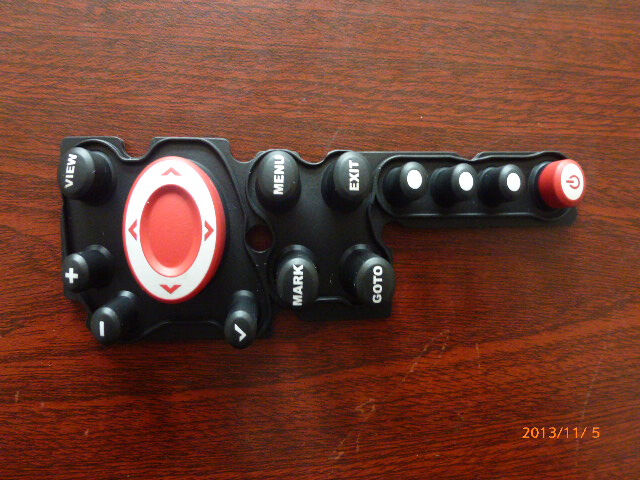

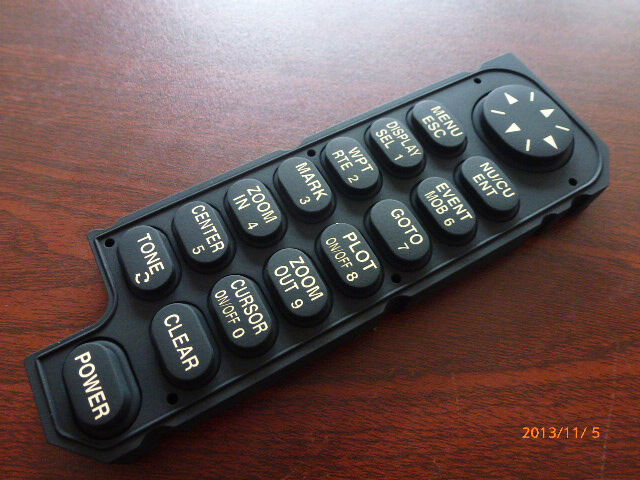

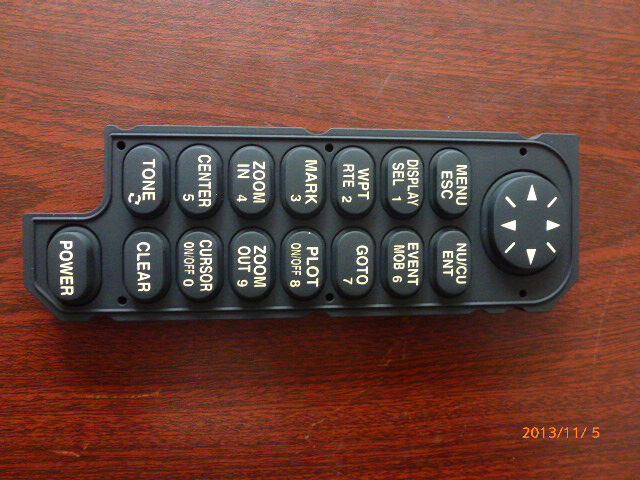

High Sensivity Control Overlay Silicone Rubber Button Keypad Keyboard
-
Highlight
high sensitivity silicone rubber keypad
,control overlay membrane switch
,rubber button keyboard overlay
-
Voltage3V
-
Transmission Distance>100m
-
Model NO.HC-SRK-037
-
MaterialRubber
-
TypeButton
-
Signal TransmissionIR Remote Control
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
CertificationISO9001, RoHS
-
Minimum Order Quantity100
High Sensivity Control Overlay Silicone Rubber Button Keypad Keyboard
High Sensitivity Control Overlay Silicone Rubber Button Keypad Keyboard
We have more than ten years of experience in designing and manufacturing Membrane Switches and Silicone Rubber Keypads. Our products are widely used in electronics, appliances, hospital equipment, and military vehicles. We take pride in providing exceptional service to over 100 stable customers worldwide.
Why Choose Our Silicone Rubber Keypads?
- High reliability with low cost
- 100% function tested before shipment (RoHS compliant)
- Three factories supporting mass production capabilities
- Professional staff and administrative support
- Expert sales team for customer service excellence
- Available with metal dome or silicone keypad options
- Waterproof seal design reaching IP65 standards
- 17 years of experience working with renowned brands including SANYO, Philips, Siemens, and Mattel
Competitive Advantages
- Beautiful appearance with rich, bright colors and customizable designs that reflect product individuality
- Washable panel with excellent protection for durable colors, characters, logos, and other content
- Compact size, lightweight, thin profile with excellent tactile feedback, abrasion resistance, and easy installation
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
