Highlight
silicone rubber keyboard overlay
,membrane switch keypad
,control button rubber keypad
-
MaterialPET /PC
-
Adhesive3M467 & 3M468
-
Life Time>1million Times
-
Wire Lead Resistance<1Ω/CM
-
Rated Current25-100mA,0~30V DC
-
Operation Temperature-40ºC~70ºC
-
Rated Voltage<50V, DC
-
Operation HumidityAt40ºC,<98%RH
-
Insulation Resistance<100MΩ,250V DC
-
Dome Springback Time<5 Msec
-
Switch TravelFlat Type 0.05-0.3mm
-
Base Material Voltage1500 V DC
-
Tactile Type0.3-1.5mm
-
Tail FlexibilityAny Angle Within 180 Degree
-
Life Cycle> 1 Million Times

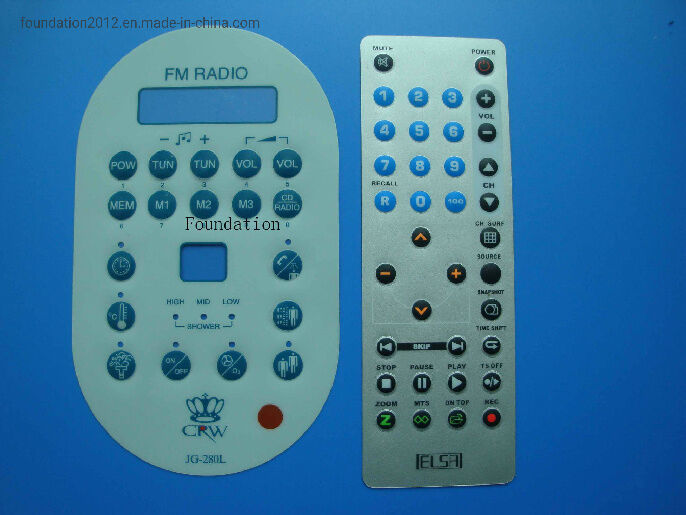

Control Overlay Silicone Rubber Keyboard Button Keypad
Control Overlay Silicone Rubber Keyboard Button Keypad
With over ten years of design and manufacturing expertise in membrane switches and silicone rubber keypads, our products are widely used in electronics, appliances, medical equipment, and military vehicles.
Product Specifications
Product Type: Membrane Switch
Place of Origin: Dong Guan, China
Brand Name: Foundation
Model Number: HC-MS-002
Certification: ISO9001:2008, SGS, Rohs
Key Features
- Membrane switch with windows
- Touch feeling keys with embossing
- Silk screen printing
- Perfect exterior finish
- Over 1 million life cycle
Materials & Construction
- Material: PET/PC
- Adhesive: 3M467 & 3M468 or as per request
- High lifetime: >1 million cycles
- Certifications: ISO9001:2008, RoHS, SGS
- Premium quality construction
Technical Specifications
| Wire Lead Resistance | <1Ω/CM | Lifetime | > 1 Million times |
| Rated Current | 25-100mA, 0~30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | <50V, DC | Operation Humidity | at 40ºC, <98% RH |
| Insulation Resistance | <100MΩ, 250V DC | Dome Springback Time | <5 msec |
| Switch Travel | Flat Type 0.05-0.3mm | Base Material Voltage Withstand | 1500 V DC |
| Tactile Type | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degrees |
Applications
- Medical Equipment
- Telecommunications Apparatus
- Telephone Systems
- Household Appliances
- Security Systems
- Industrial Controls
Commercial Terms
MOQ: 50pcs
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval
Lead Time for Production: 15-22 days after sample approval
Company Advantages
- Experienced management team with extensive industry knowledge
- Professional staff and skilled workers
- Strong research and development capabilities
- Quick delivery times
- Competitive pricing
- Two factories available for large order capacity
Our expert sales team and dedicated customer service have earned the trust of over 100 stable customers worldwide.
Product Images
