black silicone rubber keypad switch
,high sensitivity membrane switch panel
,rubber membrane switch button
-
CavityMulti-cavity
-
Production Capacity100, 000/Month
-
ExteriorGood Looking
-
Manufacturing ProcessesPressing Forming Mould
-
Surface TreatmentSilk Screening
-
Working Temperature(-40℃-300℃)
-
Mould Life>1000000 Times
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25- 100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
CertificationRoHs
-
Minimum Order Quantity100
High Sensivity Black Silicone Rubber Keypad Switch Panel Button
High Sensitivity Black Silicone Rubber Keypad Switch Panel Button
With over ten years of design and manufacturing expertise in membrane switches and silicone rubber keypads, we deliver premium components for electronics, appliances, medical equipment, and vehicle applications. Our products serve more than 100 satisfied customers worldwide with reliable performance and exceptional service.
Competitive Advantages
- Beautiful appearance with rich, vibrant colors and customizable designs that reflect your product's unique identity
- Washable panel surface with excellent protection against color fading, character wear, and logo damage
- Compact, lightweight design with thin profile, superior tactile feedback, abrasion resistance, and easy installation
- Excellent sealing properties providing protection against moisture, dust, water, oil, corrosion, harmful gases, acids, alkalis, and vibration
- Cost-effective solution with high lifespan exceeding 100 million cycles across various membrane switch types
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Response Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Cable Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm Tactile Type: 0.3-1.5mm |

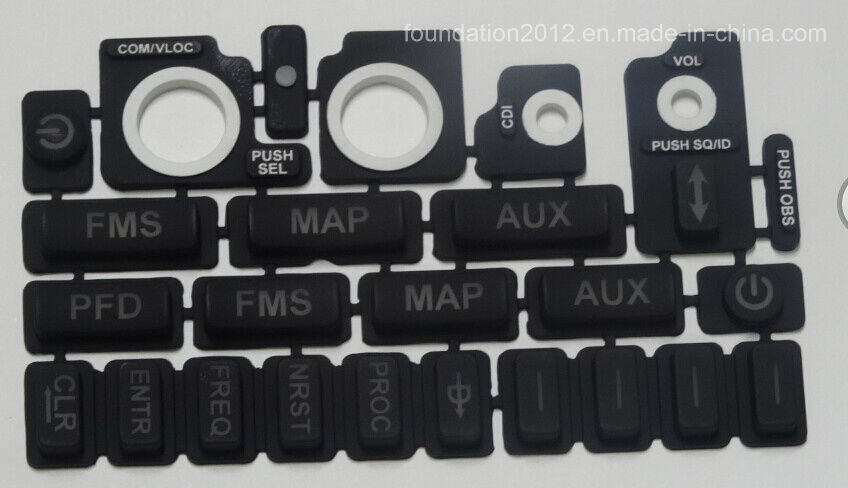

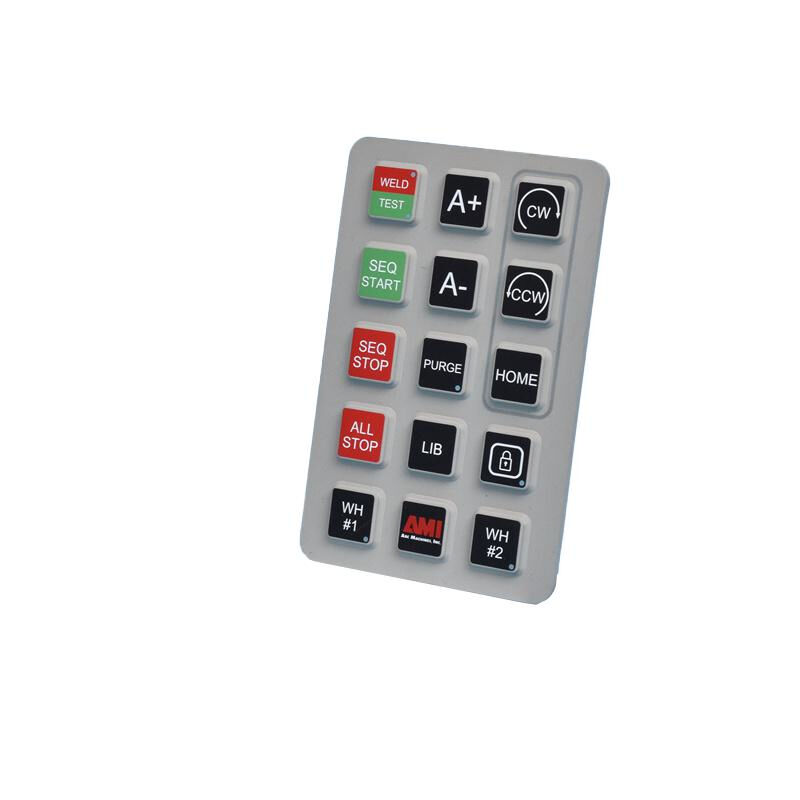

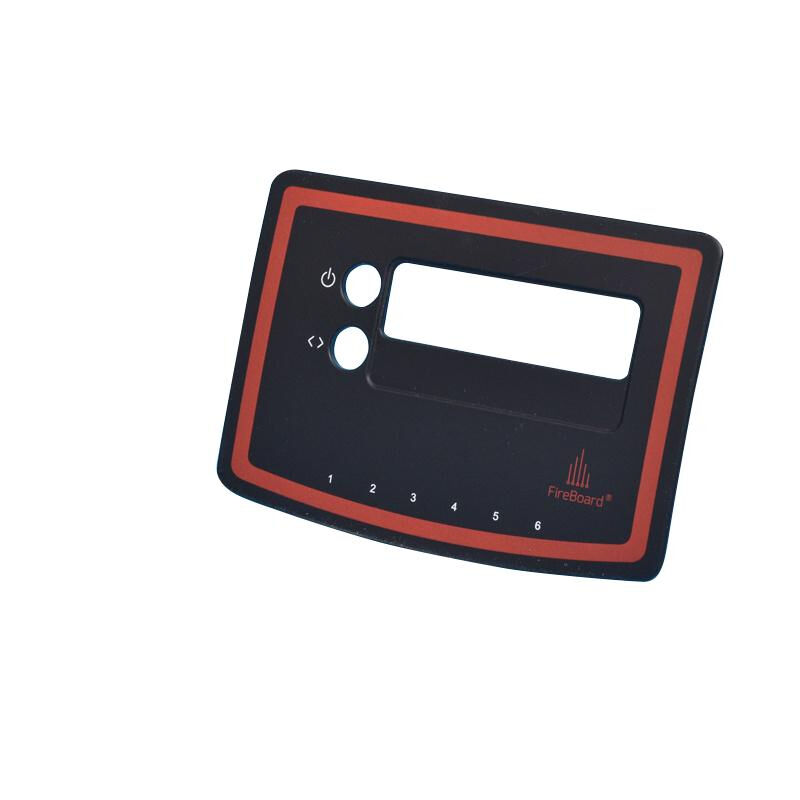

Product Images
