Highlight
silicone rubber keyboard keypad
,resistant rubber membrane switch
,durable silicone wire sheet
-
Wire Lead Resistance<1Ω/CM
-
Life Time>1 Million Times
-
Rated Current25-100mA,0~30V DC
-
Operation Temperature-40ºC~70ºC
-
Rated Voltage<50V, DC
-
Operation HumidityAt40ºC,<98%RH
-
Insulation Resistance<100MΩ,250V DC
-
Dome Springback Time<5 Msec
-
Switch TravelFlat Type 0.05-0.3mm
-
Base Material Voltage1500 V DC
-
Tactile Type0.3-1.5mm
-
Tail FlexibilityAny Angle Within 180 Degree
-
MaterialPET/PC
-
Adhesive3M467 & 3M468
-
High Life Time>1million Times

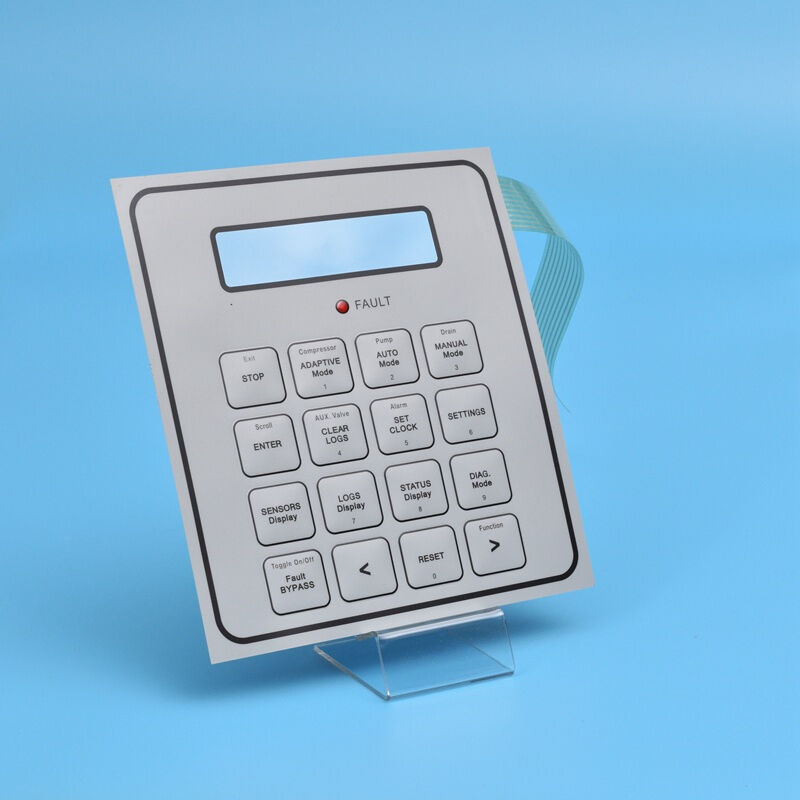

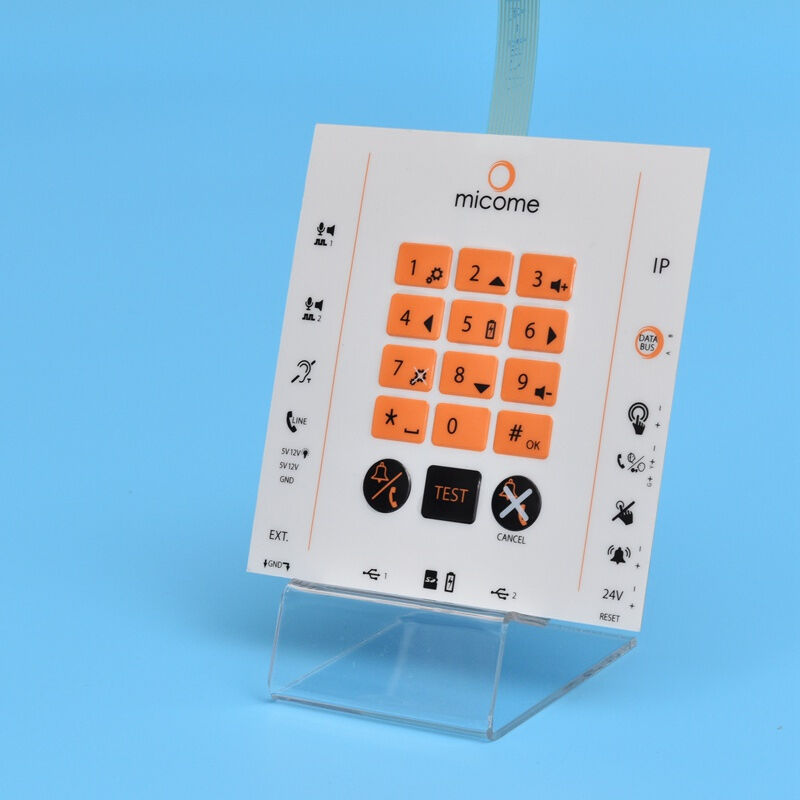

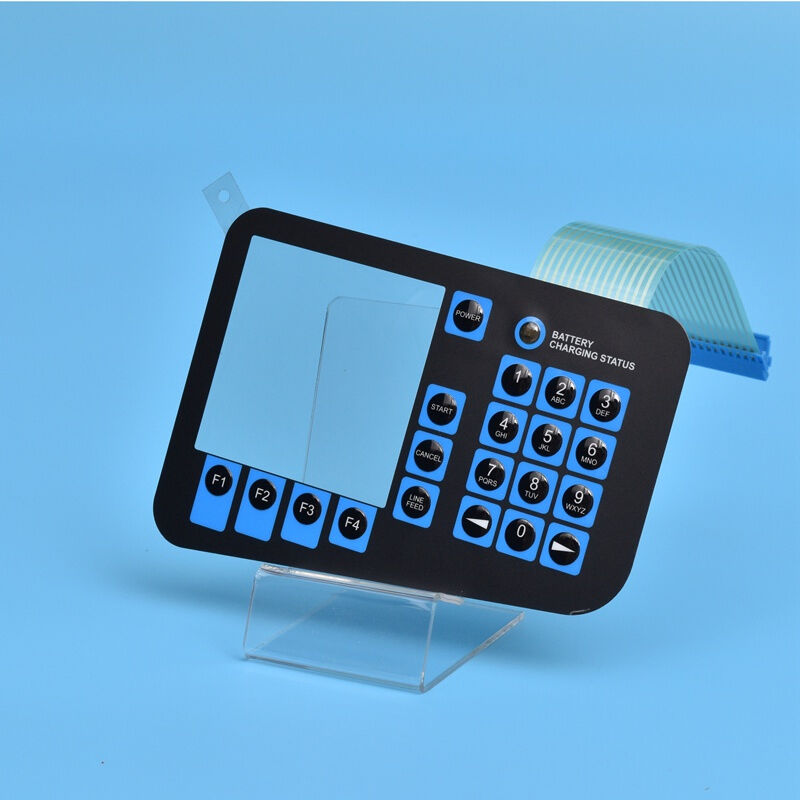

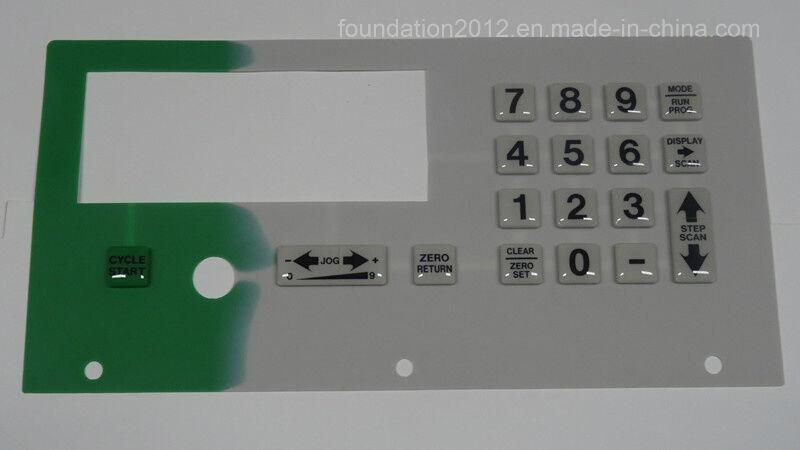

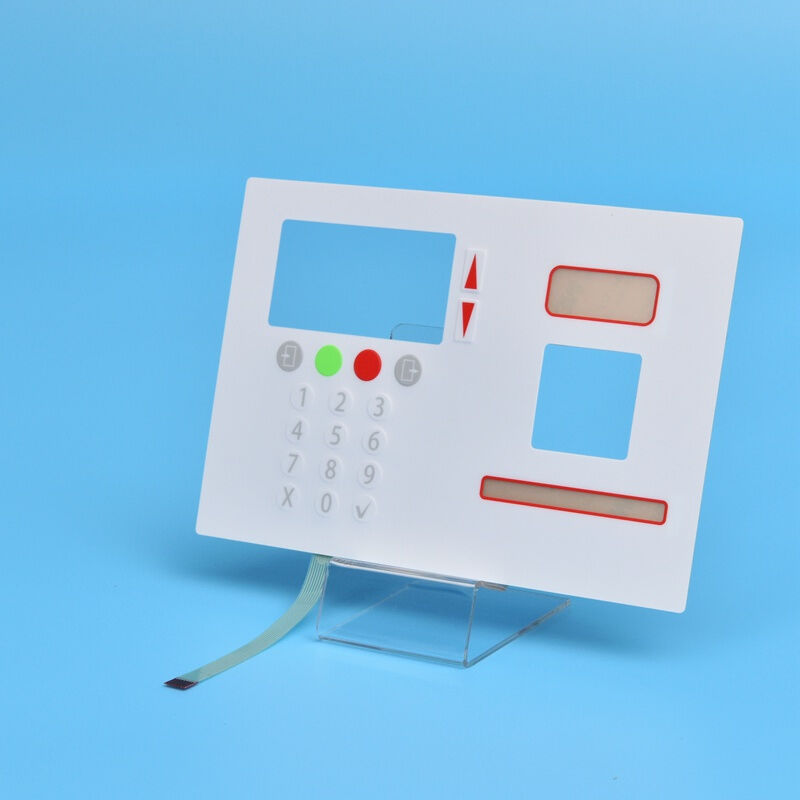

Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad
With over ten years of design and manufacturing experience in Membrane Switches and Silicone Rubber Keypads, our products are widely used in electronics, appliances, hospital equipment, and military vehicles. We proudly serve more than 100 stable customers worldwide.
Silicone Material Advantages
Silicones create air-tight seals that protect sensitive electronic assemblies from contamination, ensuring long-term stability and performance. These non-corrosive, non-pyrophoric materials meet stringent safety requirements for electronics production. Their excellent insulating properties safeguard electrical circuitry from heat, dirt, and dust in applications ranging from consumer electronics to high-voltage power systems.
Product Specifications
Membrane Switch Features
- Membrane Switch with windows
- Touch feeling keys with embossing
- Silk Screen Printing
- Perfect exterior finish
- Over 1 million life cycle
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Wire Lead Resistance | <1Ω/CM | Life Time | > 1 Million times |
| Rated Current | 25-100mA, 0~30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | <50V, DC | Operation Humidity | at 40ºC, <98%RH |
| Insulation Resistance | <100MΩ, 250V DC | Dome Springback Time | <5 msec |
| Switch Travel | Flat Type 0.05-0.3mm | Base Material Voltage Withstand | 1500 V DC |
| Tactile Type | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degree |
Materials & Construction
- Material: PET/PC
- Adhesive: 3M467 & 3M468 or as per request
- High lifetime: >1 million times
- Certifications: ISO9001:2008, RoHS, SGS
- High quality construction
Applications
Our membrane switches are widely used in:
- Medical Equipment
- Telecommunications Apparatus
- Telephone Systems
- Household Appliances
- Security Systems
- Industrial Controls
Commercial Terms
- MOQ: 50pcs
- Payment Terms: T/T or L/C
- Mold Charge: 100% in Advance
- Sample Time: 9-10 days after drawing approval
- Lead Time for Production: 15-22 days after sample approval
Company Advantages
- Experienced Management: Top managers with extensive field experience
- Professional Team: Skilled staff and workers
- Strong R&D: Advanced research and development capabilities
- Quick Delivery: Efficient production and shipping
- Competitive Pricing: Cost-effective solutions
- Production Capacity: Two factories available for large orders
Expert sales team and comprehensive customer service support.
Product Details
Place of Origin: Dong Guan, China
Brand Name: Foundation
Model Number: HC-MS-002
Certification: ISO9001:2008, SGS, Rohs
Brand Name: Foundation
Model Number: HC-MS-002
Certification: ISO9001:2008, SGS, Rohs
