Highlight
silicon rubber membrane switch
,rubber membrane switch with warranty
,combine silicon rubber membrane switch
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Waterproof RatingIP65
-
Temperature StabilityTemperature Stabilized
-
Weather FastnessOzone Resistance, UV Resistance
-
High TemperatureStable Appearance By High Temperature Compression
-
IsolationIsolation Of Electric

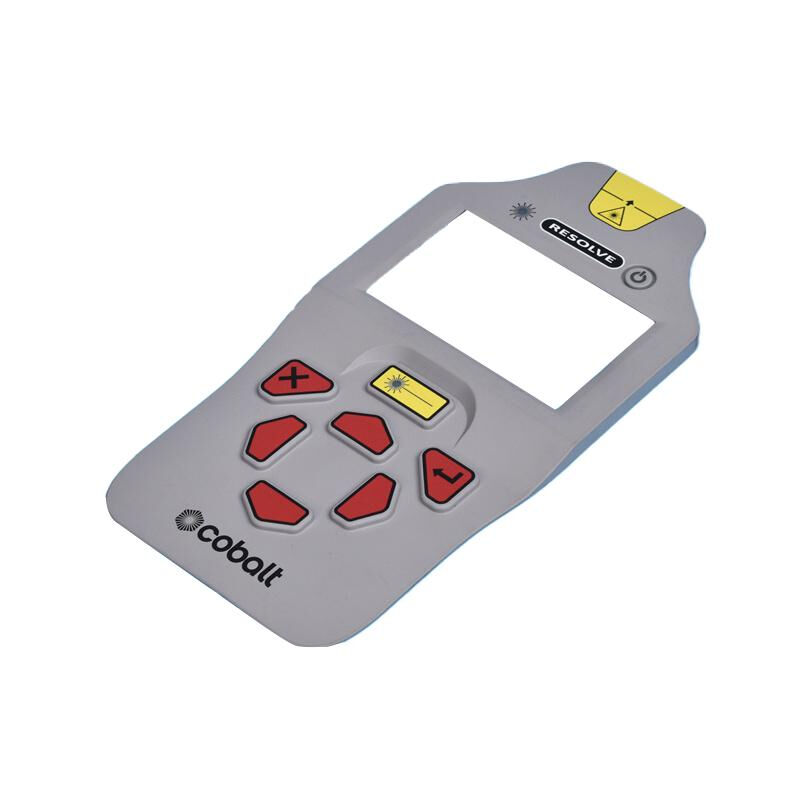

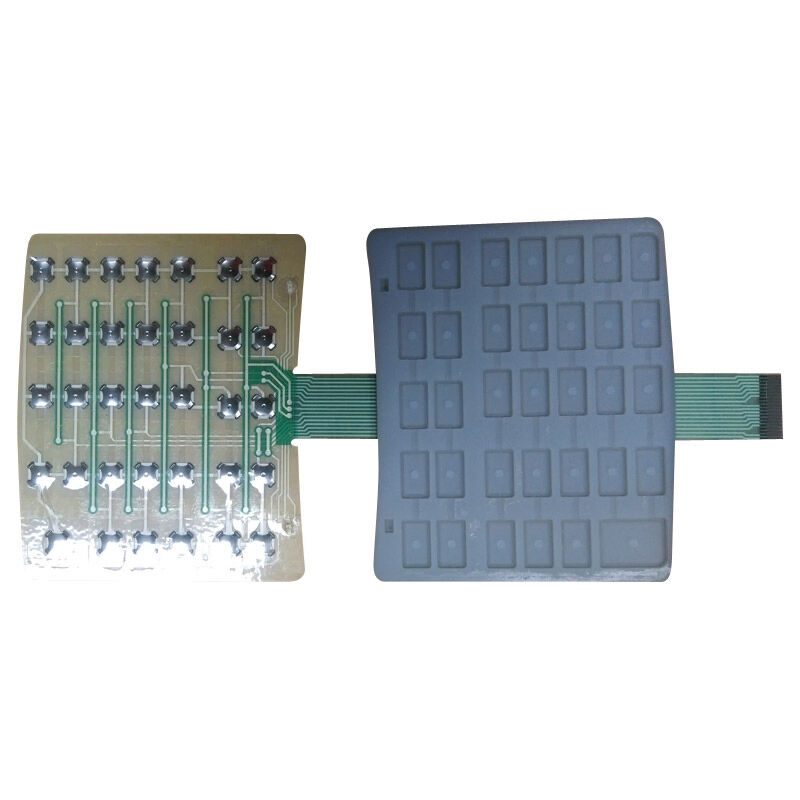

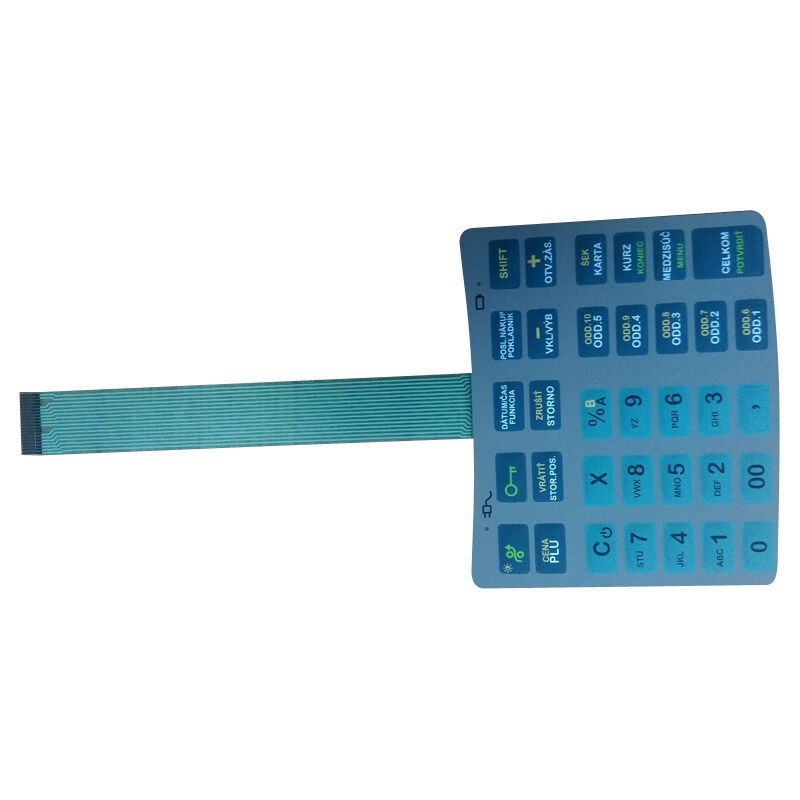

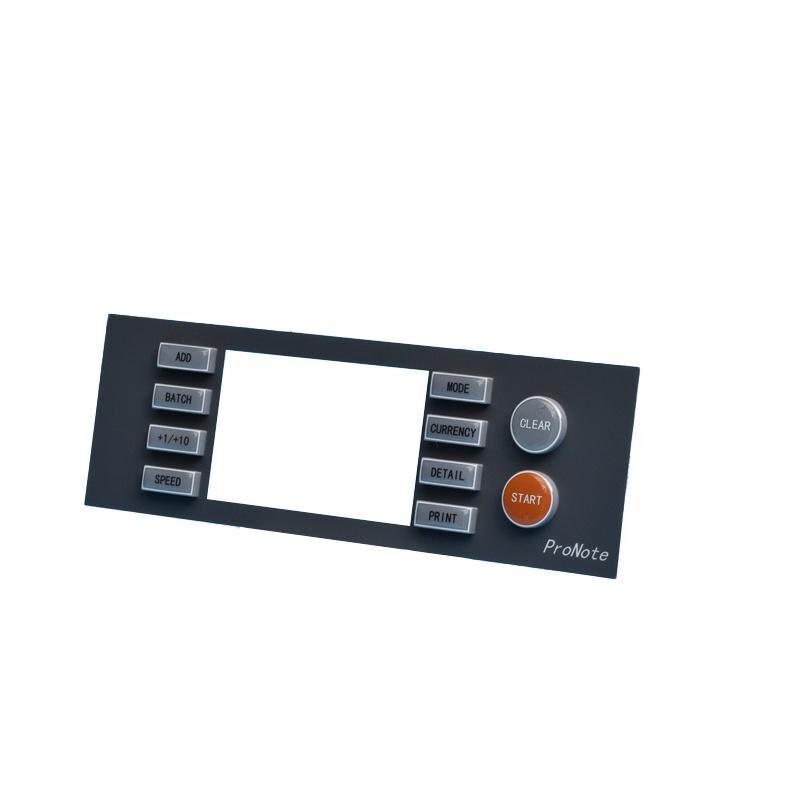

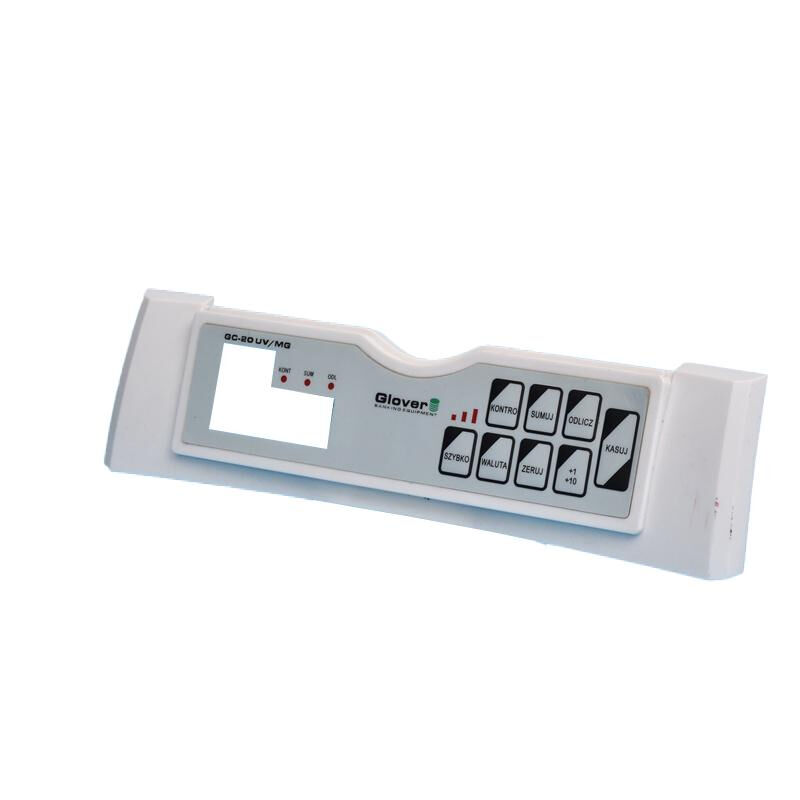

Combine The Silicon Rubber with Membrane Switch
Combine The Silicon Rubber with Membrane Switch
Waterproof High Sensitivity Silicone Rubber Keypad
This membrane switch combines silicone rubber for enhanced performance and durability in demanding industrial applications.
Product Features
- Temperature stabilized operation
- Electrical isolation properties
- Excellent weather fastness, ozone resistance, and UV resistance
- Stable appearance maintained through high temperature compression
- Easy to manufacture and integrate
Why Choose Our Membrane Switches
- High reliability with low cost
- 100% function tested before shipment with RoHS compliance
- Three factories supporting mass production capabilities
- Professional staff and administrative support
- Expert sales team for comprehensive customer service
- Metal dome or silicone keypad options available
- Waterproof seal design reaching IP65 standards
- 17 years of experience working with renowned brands including SANYO, Philips, Siemens, and Mattel
Technical Specifications
| Insulation Resistance | <100MΩ, 250V DC |
| Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC |
| Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles |
| Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms |
| Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees |
| Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Product Images
