Highlight
silicone membrane switch cover
,rubber membrane switch circuit
,membrane switch with silicone cover
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Waterproof RatingIP65
-
Temperature StabilityTemperature Stabilized
-
Weather FastnessOzone Resistance, UV Resistance
-
High TemperatureStable Appearance By High Temperature Compression
-
IsolationIsolation Of Electric

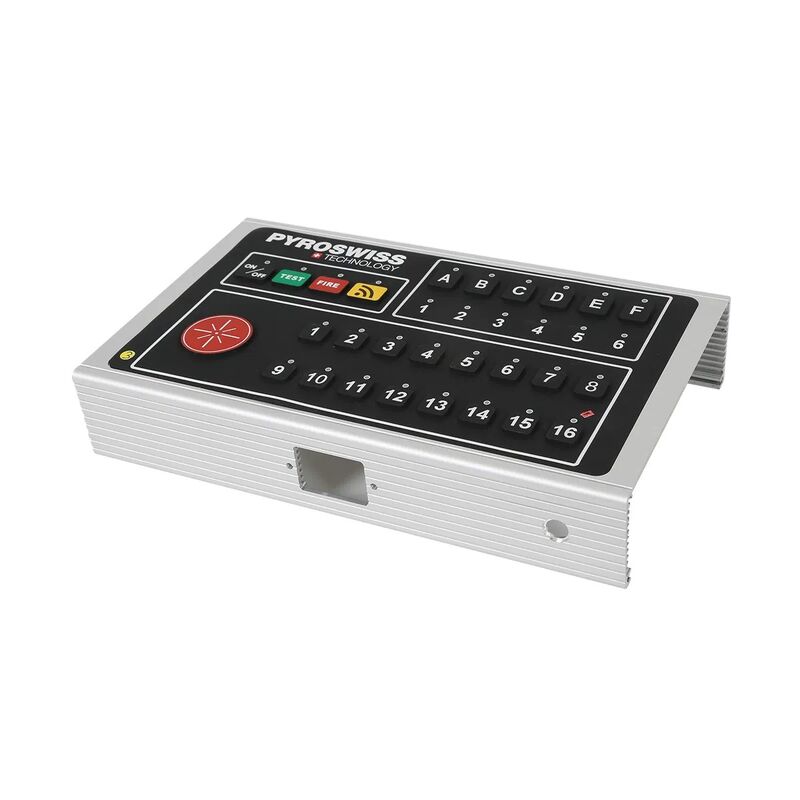

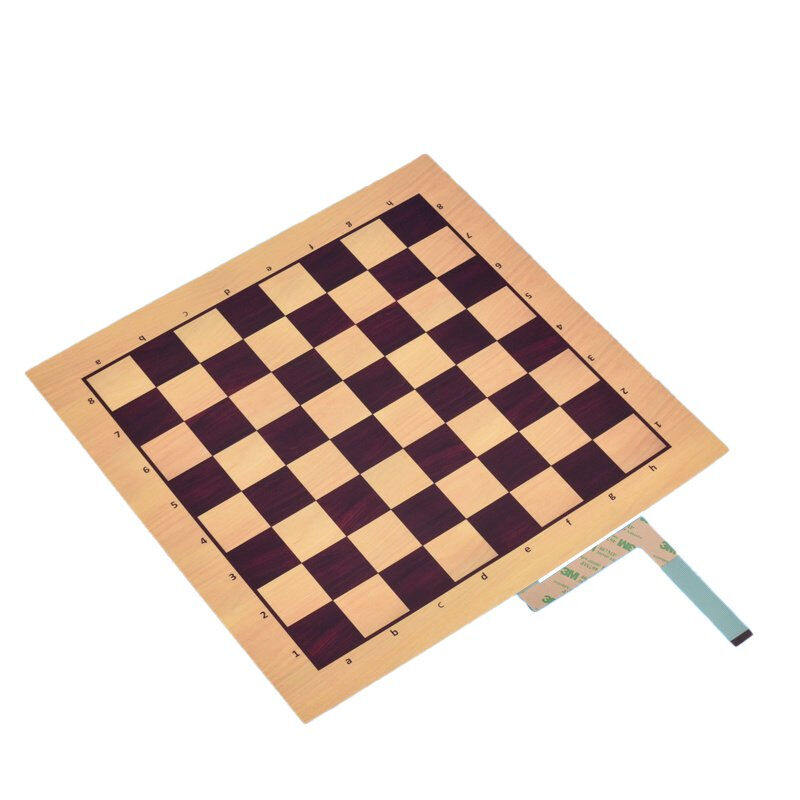

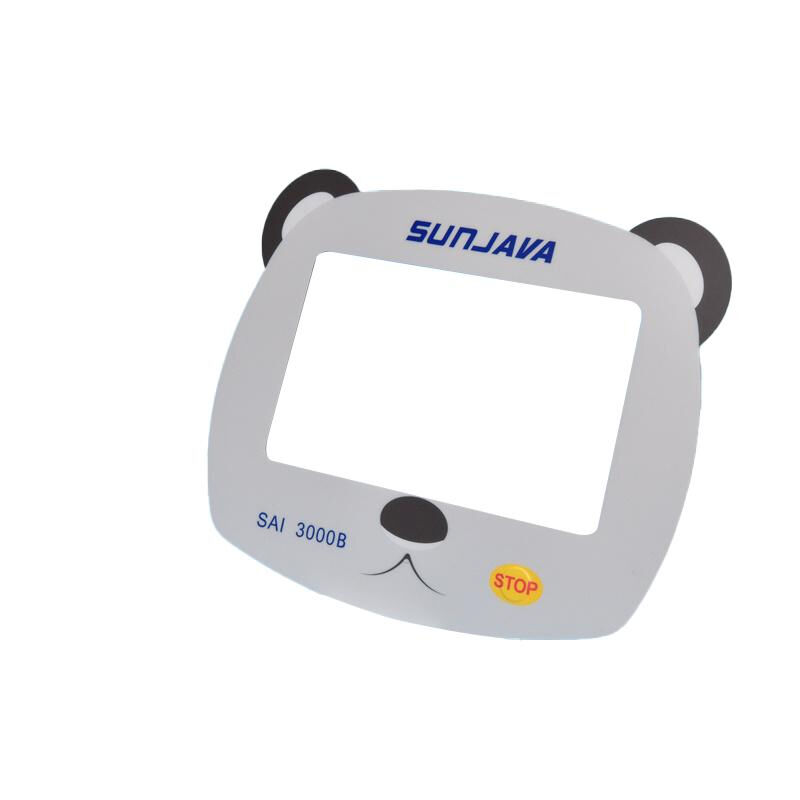

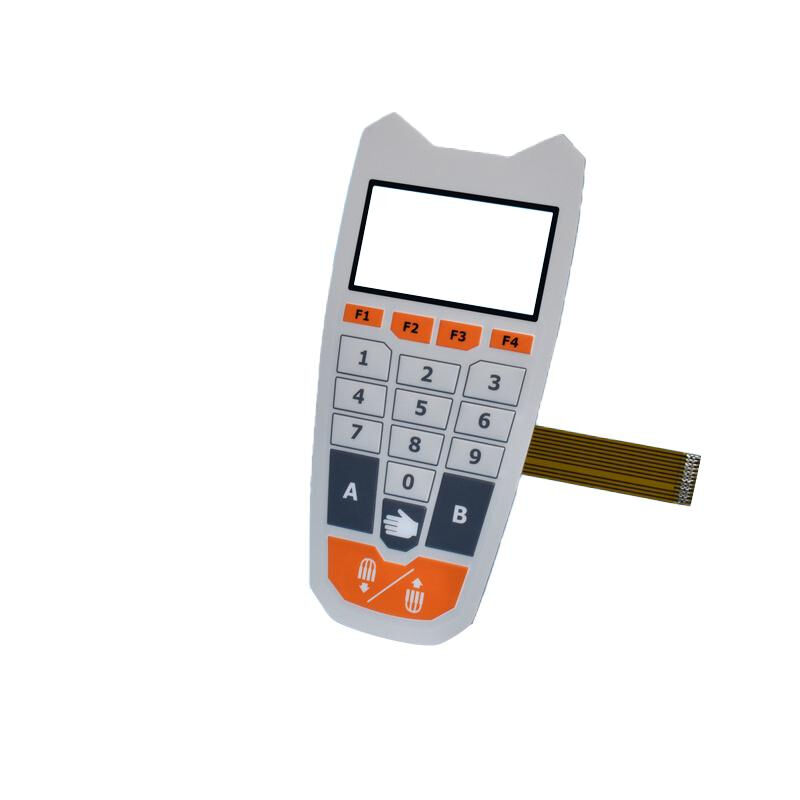

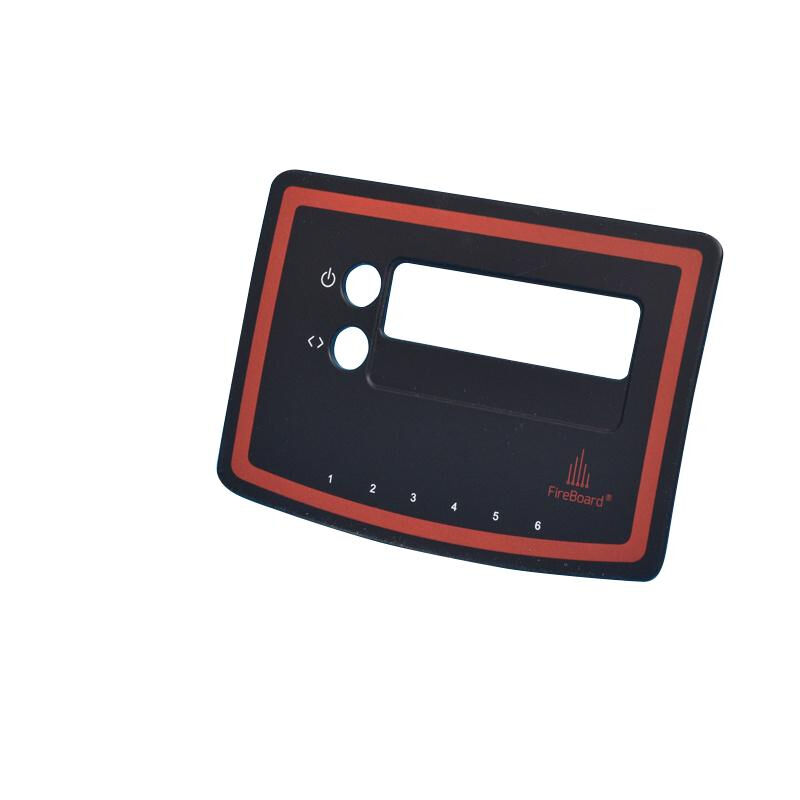

Silicon Cover with Membrane Switch Circuit
Silicon Cover with Membrane Switch Circuit
Product Overview
Waterproof high sensitivity silicone rubber keypad part product membrane switch designed for reliable performance in demanding industrial applications.
Key Features
- Temperature stabilized operation
- Electrical isolation capabilities
- Weather fastness with ozone and UV resistance
- Stable appearance through high temperature compression
- Easy to manufacture and integrate
Why Choose Our Membrane Switches
- High reliability with low cost
- 100% function tested before shipment with RoHS compliance
- Three factories supporting mass production capabilities
- Professional staff and administrative support
- Expert sales team for customer service
- Metal dome or silicone keypad options available
- Waterproof seal design reaching IP65 standards
- 17 years of experience working with famous brands including SANYO, Philips, Siemens, and Mettel
Technical Specifications
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω /cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Product Images
