Highlight
Customized conductive silicone rubber keypads
,OEM rubber membrane switch
,Conductive silicone keypads with warranty
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Heat ResistanceSuperior To Organic Rubber
-
Cold ResistanceSuperior To Organic Rubber
-
Electrical InsulationSuperior To Organic Rubber
-
ConductivitySuperior To Organic Rubber
-
Waterproof RatingIP65

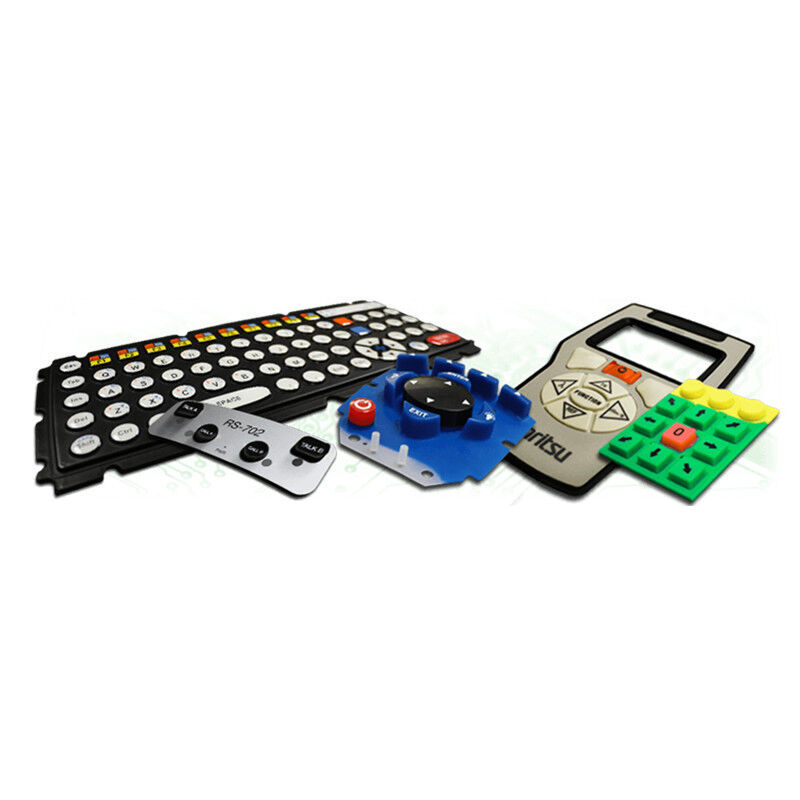

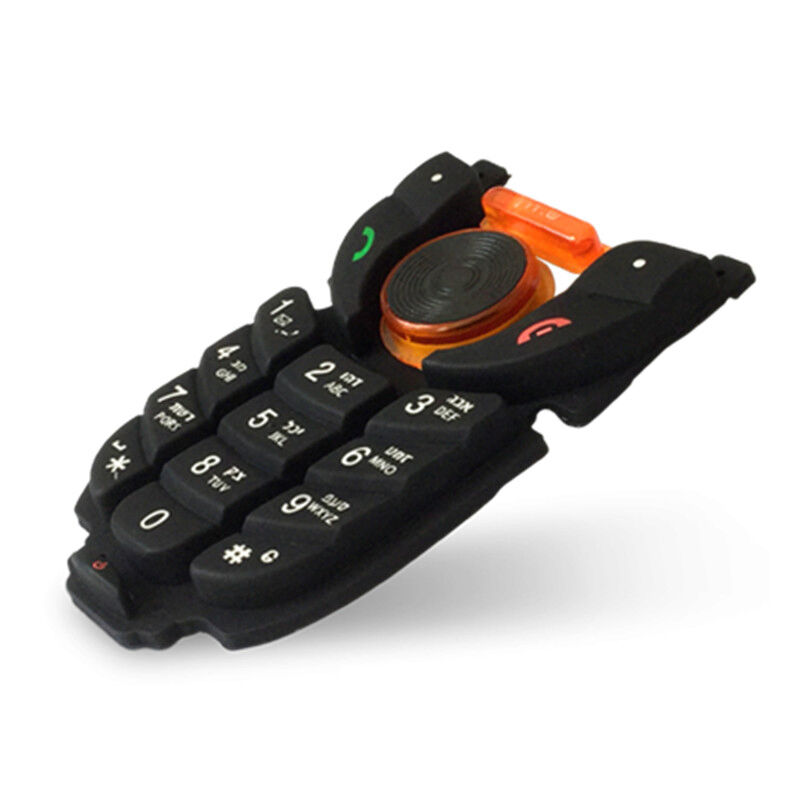

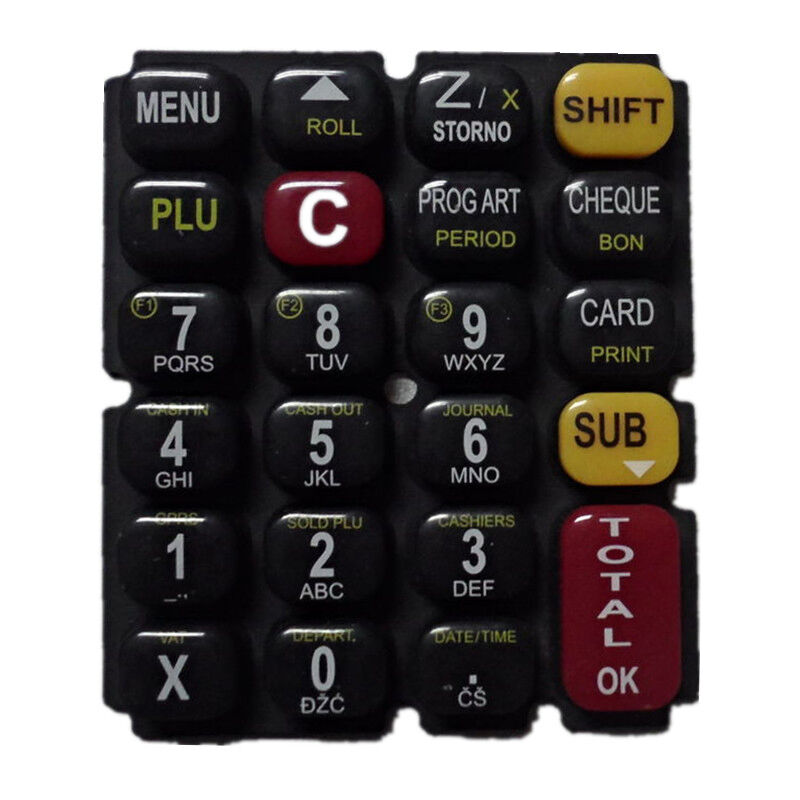

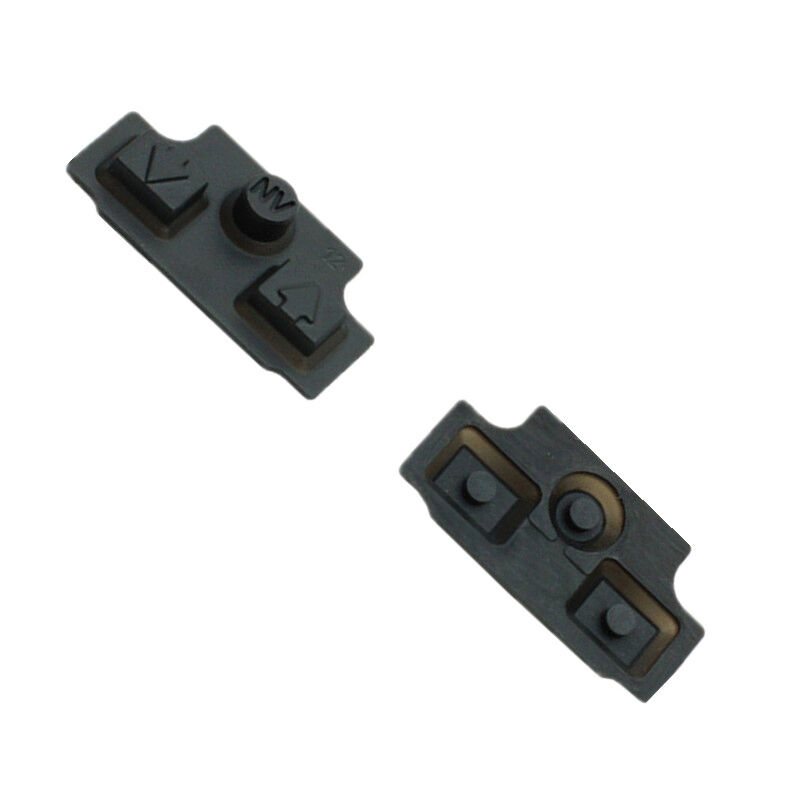

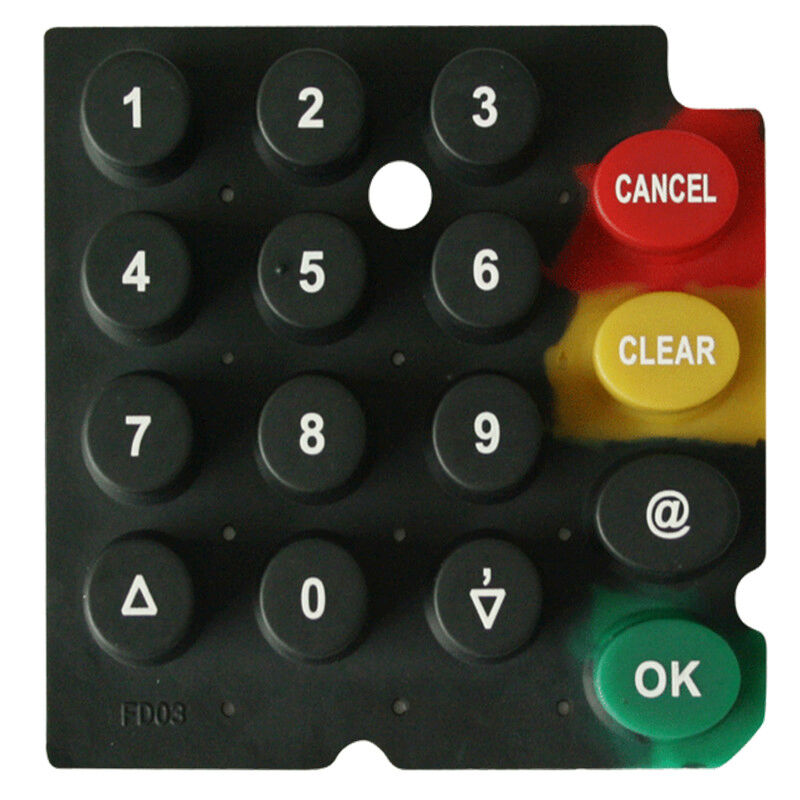

Customized OEM Conductive Silicone Rubber Keypads
Customized OEM Conductive Silicone Rubber Keypads
Silicone rubber keypads have become essential components in the electronics industry due to their cost-effectiveness and versatility. Silicone rubber compounds offer superior organic and inorganic properties, making them ideal for electronic parts requiring special characteristics. Compared to organic rubber, silicone rubber excels in heat/cold resistance, weatherability, electrical insulation and conductivity, flex fatigue resistance, and tear strength.
As the functional interface of a switch, silicone keypads provide electrical contact from users to devices. They combine smooth tactile feel with exceptional durability, capable of withstanding hundreds of thousands of actuations without failure. Keypads utilize various contact systems, from gold pills actuating tactile metal domes to carbon pills—the most common contact type.
Two primary mounting methods are used in membrane switch assemblies: mounting rubber actuators with double-sided pressure-sensitive silicone rubber adhesive, and pull-through designs molded directly into the rubber that create interference fits with printed circuit board substrates.
Product Gallery
Why Choose Our Silicone Rubber Keypads
- High reliability with low cost
- 100% functional testing before shipment (RoHS compliant)
- Three factories supporting mass production capacity
- Professional staff and administrative support
- Expert sales team providing comprehensive customer service
- Available with metal domes or silicone keypads
- Waterproof seal designs reaching IP65 standards
- 17 years of experience working with renowned brands including SANYO, Philips, Siemens, and Mattel
Custom Manufacturing Services
We welcome OEM and ODM projects and can customize keypads according to your specific requirements. Whether you have custom designs or want to add private labels to existing models, our team is ready to assist.
Quality Assurance
We provide 100% quality guarantee with thorough inspection of every product before packaging and shipment. Each item is verified for correct specifications, quantity, and condition.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Payment & Delivery
We accept PayPal, T/T, Western Union, and cash payments (30% deposit with full payment before delivery). We prioritize fast delivery while maintaining high quality and competitive pricing.
Manufacturing Facilities
Certifications
Frequently Asked Questions
What is your minimum order quantity (MOQ)?
Our standard MOQ is 1000 pieces, but we accept smaller quantities for trial orders.
Can I get samples?
Yes, we provide existing samples free of charge. Custom design samples may incur a small charge, which is refundable when orders reach certain quantities.
How long is the sample lead time?
Existing samples ship in 1-2 days. Custom designs require 3-7 days, depending on whether new printing screens or molds are needed.
What is the production lead time?
MOQ production typically takes 15-20 days.
What file formats do you accept for custom designs?
We accept JPG, AI, CDR, PDF, and other common formats. Our professional designers will create artwork for molds or printing screens.
How much is freight charge?
We recommend express shipping for small quantities to save costs and ensure faster delivery. For large orders, sea freight is more economical.
