Highlight
silicone rubber keypads for TV remote
,rubber membrane switch for remote control
,TV remote silicone keypads with warranty
-
MaterialRubber, Silicone
-
Voltage3V
-
Transmission Distance<50m
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25- 100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Signal TransmissionIR Remote Control
-
Production Capacity100, 000PCS/Month
-
CertificationISO9001, RoHS, CE
-
Minimum Order Quantity100
Silicone Rubber Keypads for TV Remote Control
Silicone Rubber Keypads for TV Remote Control
Silicone rubber keypads have become an essential component in the electronics industry due to their cost-effectiveness and versatility. Silicone rubber compounds offer superior organic and inorganic properties, making them ideal for electronic parts requiring special characteristics. Compared to organic rubber, silicone rubber excels in heat/cold resistance, weatherability, electrical insulation and conductivity, flex fatigue resistance, and tear strength.
As the most functional part of a switch, silicone keypads facilitate electrical contact from users to devices. They combine smooth tactile feel with exceptional durability, capable of withstanding hundreds of thousands of actuations without failure. Keypads utilize various contact systems, from gold pills actuating tactile metal domes to carbon pills—the most common contact type.
Mounting Methods
Silicone rubber can be mounted in membrane switch assemblies using two primary methods. The first employs double-sided pressure-sensitive silicone rubber adhesive on a holder, while the second incorporates a pull-through molded into the rubber itself, creating an interference fit that secures the component within the assembly.

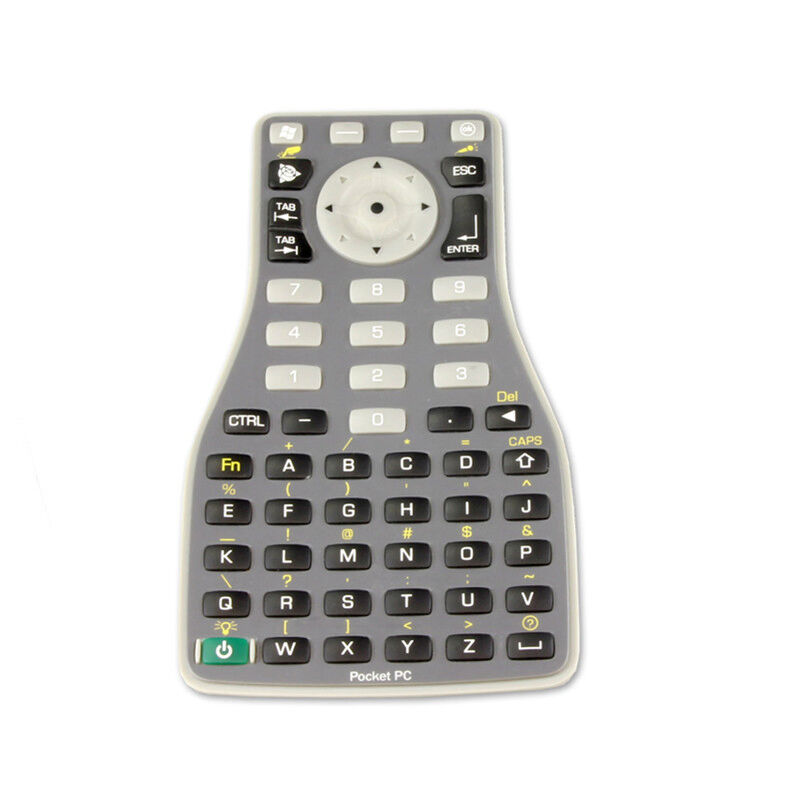

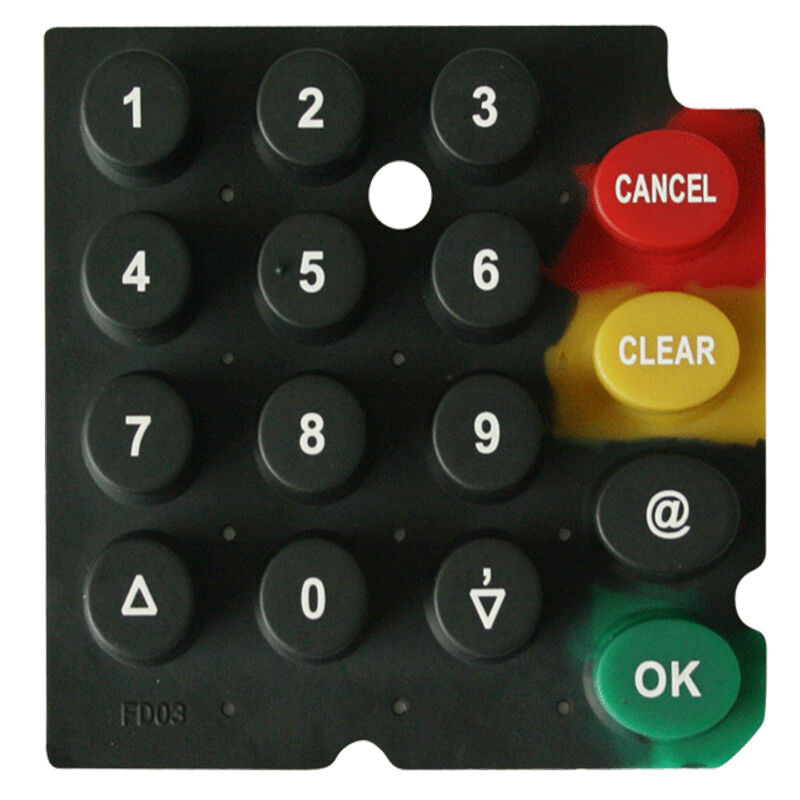

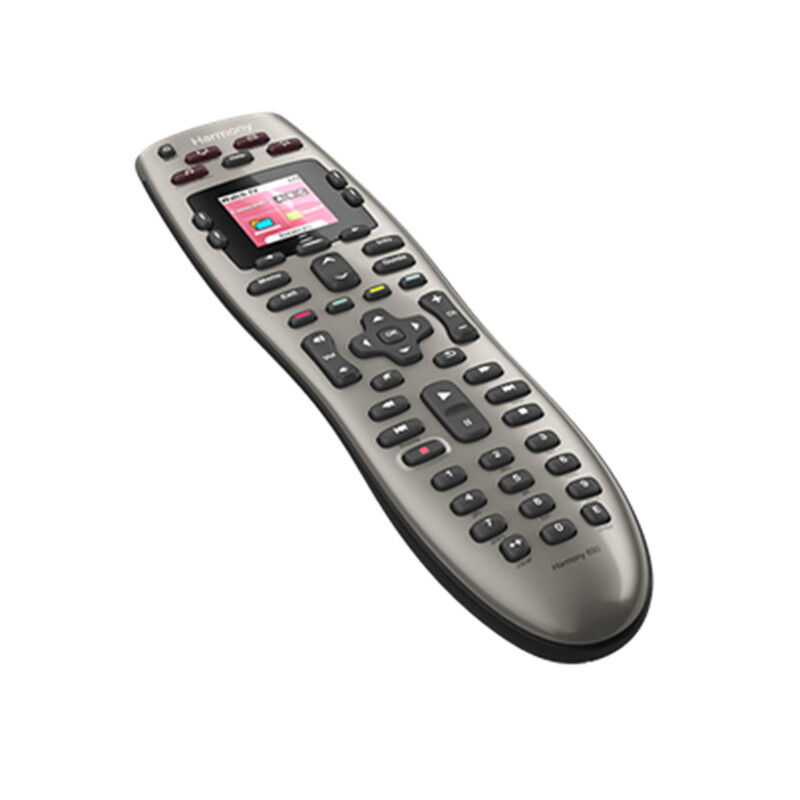

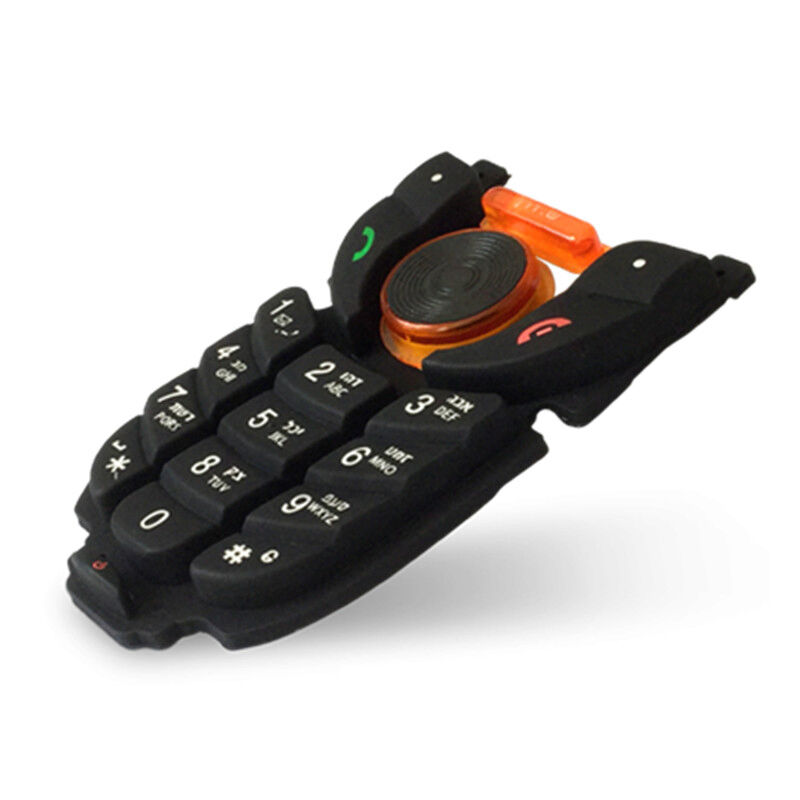

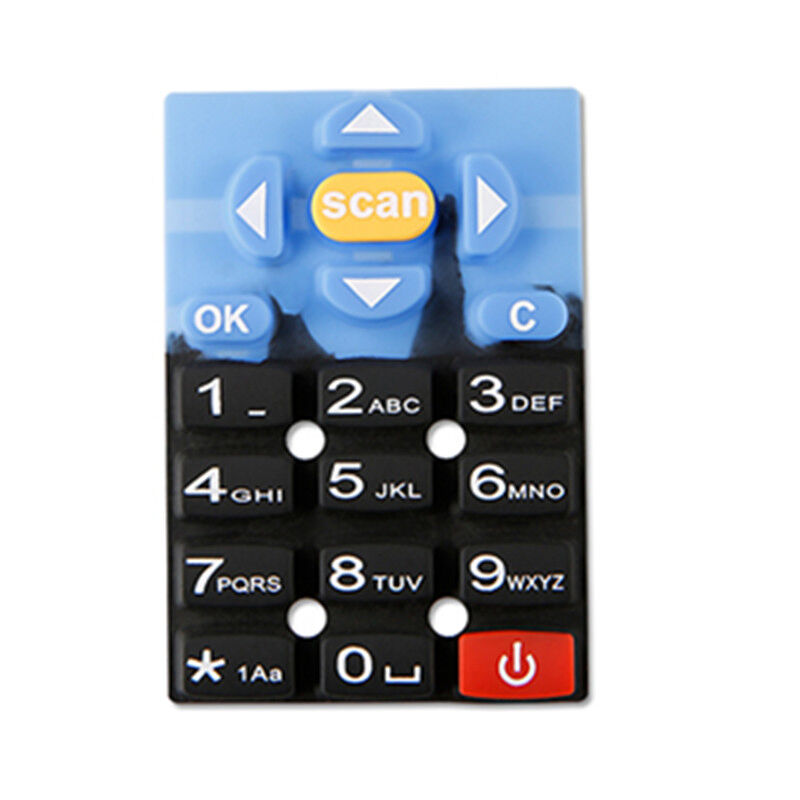

Product Gallery
Why Choose Our Silicone Rubber Keypads
- High reliability with low cost
- 100% function testing before shipment (ROHS compliant)
- Three factories supporting mass production
- Professional staff and administrative support
- Expert sales team for customer service
- Available with metal dome or silicone keypad options
- Waterproof seal design reaching IP65 standards
- 17 years of experience working with renowned brands including SANYO, Philips, Siemens, and Mattel
Technical Specifications
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Customization Services
OEM & ODM Welcome! We can customize according to your specific demands. If you have custom designs or want to add private labels to our existing models, please contact us.
Quality Assurance
100% Quality Guarantee! We conduct thorough quality checks on every product before packaging and shipping to ensure they meet your specifications, correct quantities, and are in perfect condition.
Payment & Delivery
Accepted payment methods: PayPal, T/T, Western Union, cash (30% deposit with full payment before delivery). We prioritize fast delivery while maintaining high quality and competitive pricing.
Factory Overview
Certifications
Frequently Asked Questions
What is your minimum order quantity (MOQ)?
Our standard MOQ is 1000 pieces, but we accept smaller quantities for trial orders.
Can I get samples?
Yes, we provide existing samples free of charge. Custom design samples may incur a small charge, which is refundable when orders reach certain quantities.
How long is the sample lead time?
Existing samples: 1-2 days. Custom designs: 3-7 days, depending on design complexity and printing screen requirements.
What is the production lead time?
15-20 days for minimum order quantities.
What file formats do you accept for custom designs?
We accept JPG, AI, CDR, PDF, and other common formats. Our professional designers will create artwork for molds or printing screens.
How much is freight charge?
We recommend express delivery for small quantities to save costs and ensure faster delivery. For large quantities, sea freight is recommended.
