Highlight
silicone rubber push button keypads
,rubber membrane switch keypads
,snap button silicone keypads
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Heat ResistanceSuperior To Organic Rubber
-
Cold ResistanceSuperior To Organic Rubber
-
Electrical InsulationSuperior To Organic Rubber
-
ConductivitySuperior To Organic Rubber
-
Waterproof RatingIP65

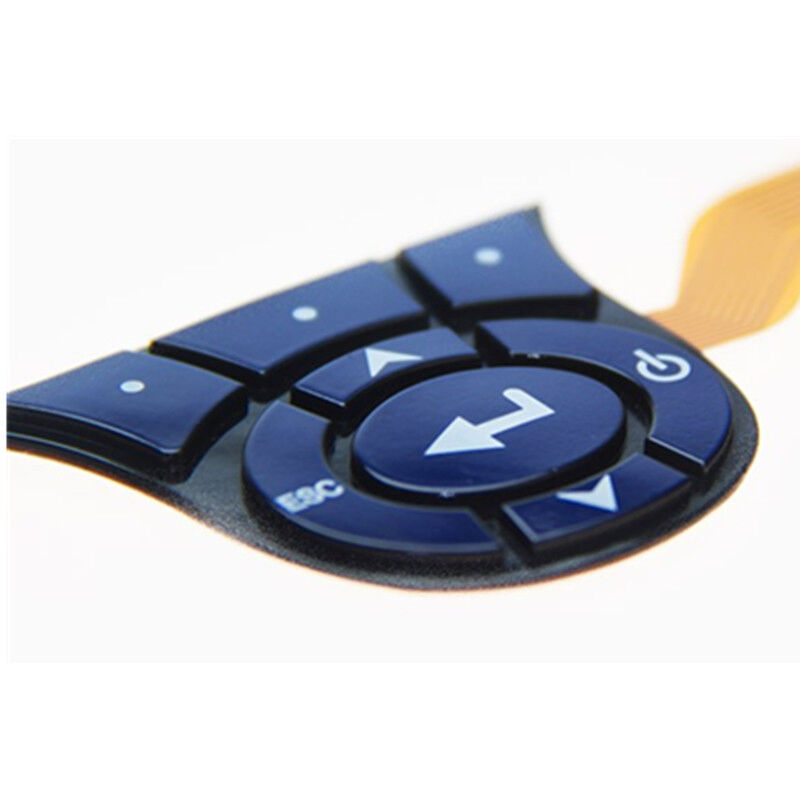

Silicone Rubber Push Snap Button Keypads
Silicone Rubber Push Snap Button Keypads
Silicone rubber keypads have become essential components in the electronics industry due to their cost-effectiveness and versatility. Silicone rubber compounds offer superior organic and inorganic properties, making them ideal for electronic parts requiring special characteristics. Compared to organic rubber, silicone rubber provides excellent heat and cold resistance, weatherability, electrical insulation and conductivity, flex fatigue resistance, and tear strength.
Key Advantages
- Cost-effective manufacturing solution
- Versatile design applications
- Enhanced safety features
- Extreme environmental resistance properties
As the functional component of switches, silicone keypads facilitate electrical contact between users and devices. They combine smooth tactile feel with exceptional durability, capable of withstanding hundreds of thousands of actuations without failure. Keypads utilize various contact systems, including gold pills actuating tactile metal domes and carbon pills (the most common contact type).
Mounting Methods
Silicone rubber can be mounted in membrane switch assemblies using two primary methods. The first employs double-sided pressure-sensitive silicone rubber adhesive on a mounting rubber actuator. The second method incorporates a molded pull-through feature that securely fits into printed circuit board substrates through interference fitting.

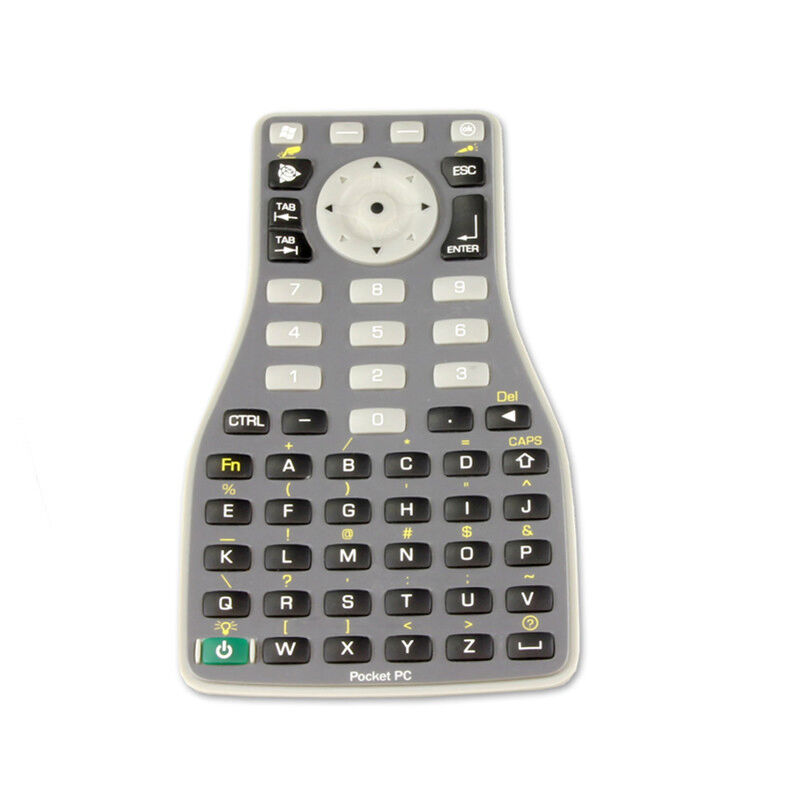

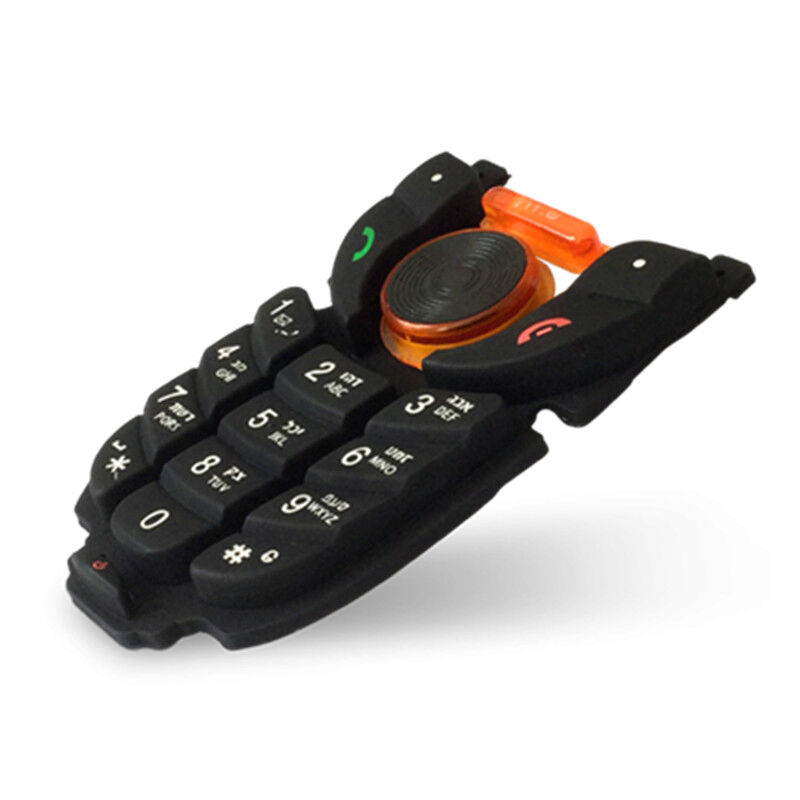

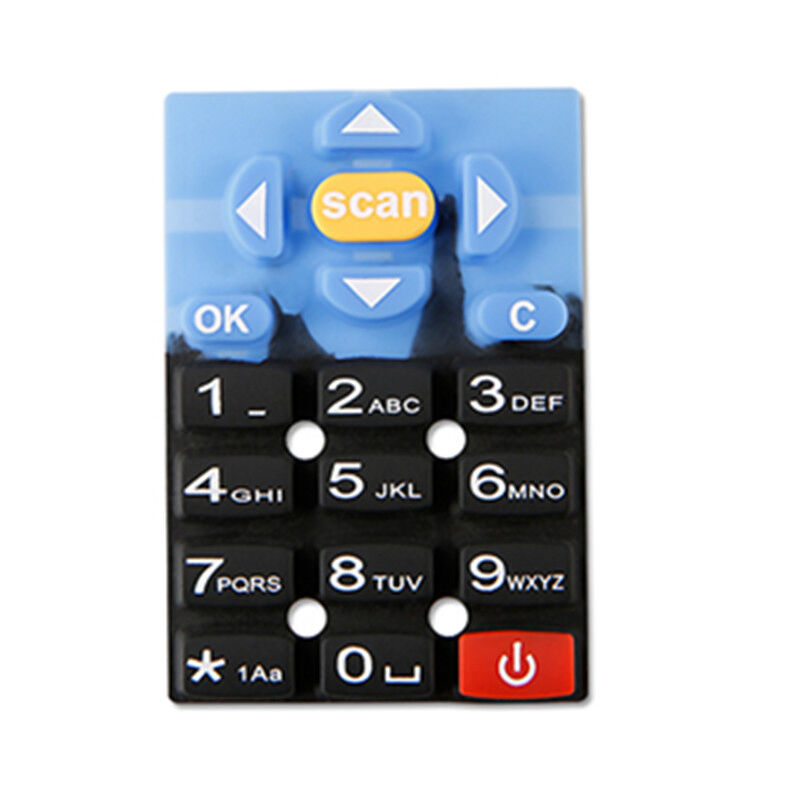

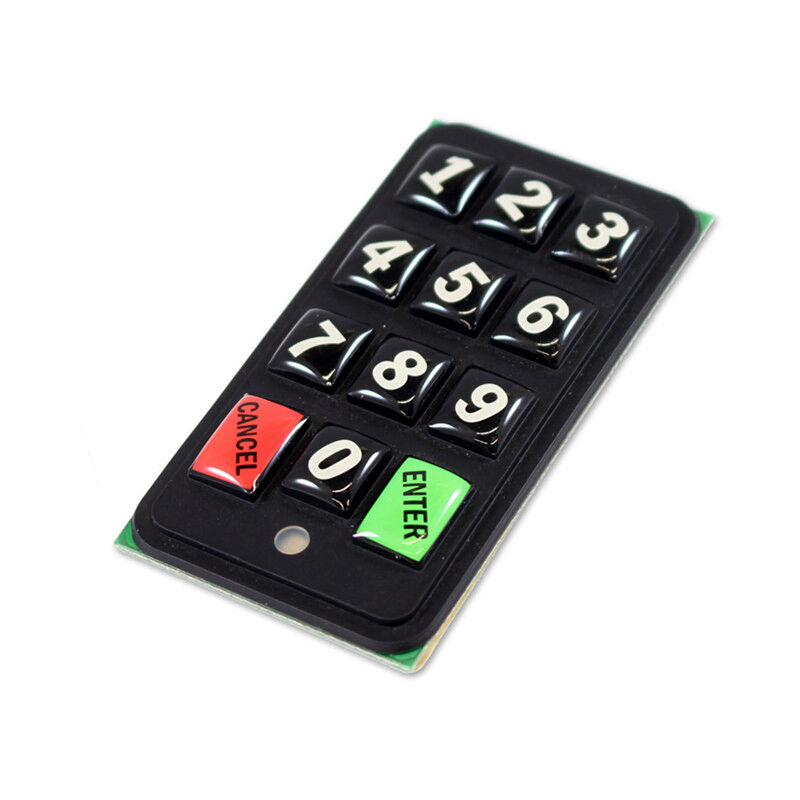

Product Gallery
Why Choose Our Silicone Keypads
- High reliability with low cost
- 100% functional testing before shipment with RoHS compliance
- Three factories supporting mass production capabilities
- Professional staff and administrative support
- Expert sales team providing comprehensive customer service
- Available with metal dome or silicone keypad configurations
- Waterproof seal designs reaching IP65 standards
- 17 years of experience working with renowned brands including SANYO, Philips, Siemens, and Mattel
OEM & ODM Services Available!
We specialize in customizing silicone keypads according to your specific requirements. Whether you need custom designs or private labeling on existing models, our team is ready to assist.
We specialize in customizing silicone keypads according to your specific requirements. Whether you need custom designs or private labeling on existing models, our team is ready to assist.
100% Quality Guarantee!
Payment Options: PayPal, T/T, Western Union, Cash (30% deposit with full payment before delivery). We ensure prompt delivery of high-quality products at competitive prices.
Payment Options: PayPal, T/T, Western Union, Cash (30% deposit with full payment before delivery). We ensure prompt delivery of high-quality products at competitive prices.
Comprehensive Quality Control!
Each product undergoes individual inspection before packaging and shipping to guarantee correct quantity, specifications, and optimal condition.
Each product undergoes individual inspection before packaging and shipping to guarantee correct quantity, specifications, and optimal condition.
Technical Specifications
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Manufacturing Facility
Quality Certifications
Frequently Asked Questions
What is your minimum order quantity (MOQ)?
Our standard MOQ is 1000 pieces, but we accept smaller quantities for initial trial orders.
Can I request samples?
Yes, we provide existing samples free of charge. Custom designs require a nominal sample fee, which is refundable when orders reach specified quantities.
What is the sample lead time?
Existing samples ship within 1-2 days. Custom designs require 3-7 days, depending on design complexity and tooling requirements.
What is the production lead time?
Production for MOQ quantities typically takes 15-20 days.
What file formats do you accept for custom designs?
Our professional design team can work with JPG, AI, CDR, PDF, and other common formats. We create artwork for molds and printing screens as needed.
What are the freight charges?
We recommend express shipping for small quantities to reduce costs and delivery time. For large orders, sea freight provides the most economical solution.
