Highlight
customized conductive silicone rubber keypads
,electronic rubber membrane switch buttons
,silicone rubber keypads with conductive properties
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Heat ResistanceSuperior
-
Cold ResistanceSuperior
-
WeatherabilitySuperior
-
Electrical InsulationSuperior
-
ConductivitySuperior
Customized Electronic Conductive Silicone Rubber Keypads Buttons
Customized Electronic Conductive Silicone Rubber Keypads Buttons
With advancing technology, silicone keypads have become essential components in the electronics industry. Silicone rubber's low cost and versatility make it the ideal material for keypad applications. The unique organic and inorganic properties of silicone rubber compounds provide superior performance for electronic parts requiring special characteristics.
Compared to organic rubber, silicone rubber offers significantly better heat and cold resistance, weatherability, electrical insulation and conductivity, flex fatigue resistance, and tear strength. Key advantages include cost-effectiveness, versatility, safety, and extreme environmental properties.
Keypad Functionality and Mounting
As the most functional part of a switch, silicone keypads provide electrical contact from users to devices. They combine smooth tactile feel with the durability to withstand hundreds of thousands of actuations without failure. Keypads utilize various contact systems, from gold pills actuating tactile metal domes to carbon pills—the most common contact type.
Two common mounting methods for silicone rubber in membrane switch assemblies include:
- Mounting rubber actuators using double-sided pressure-sensitive silicone rubber adhesive
- Pull-through molding integrated directly into the rubber component for interference fit assembly

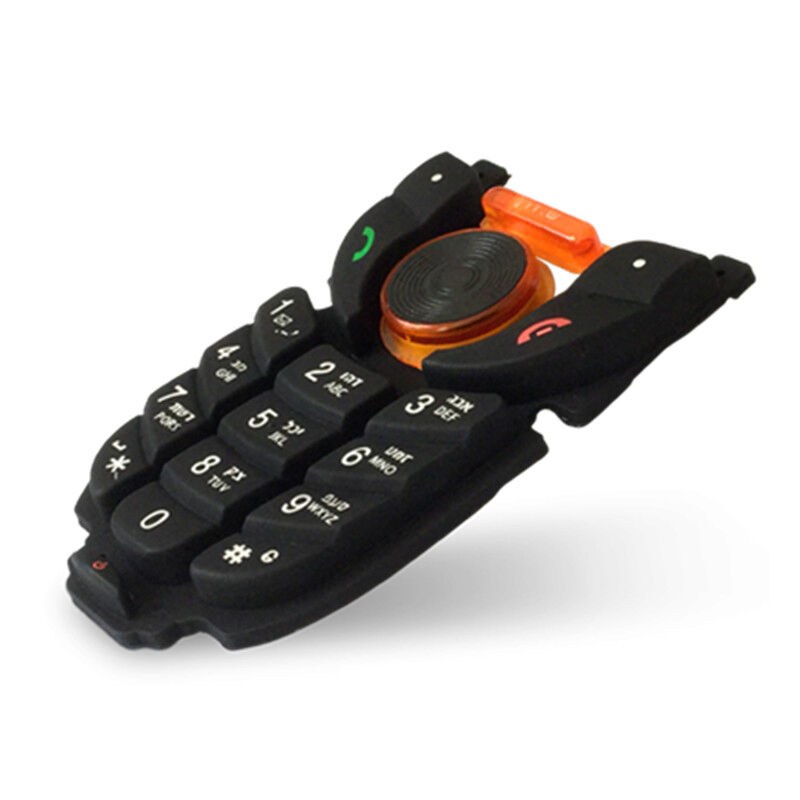

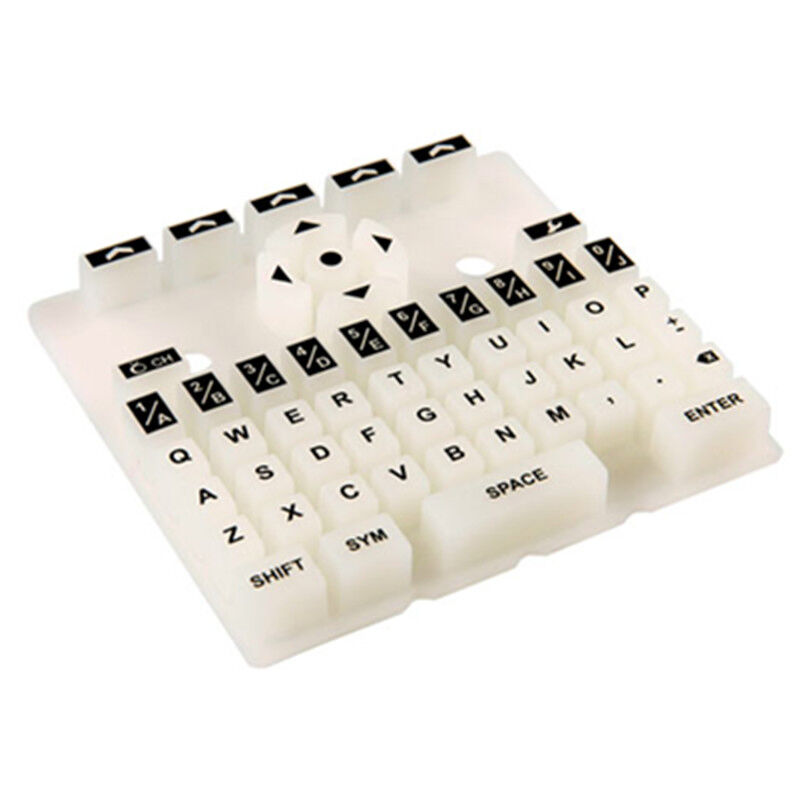

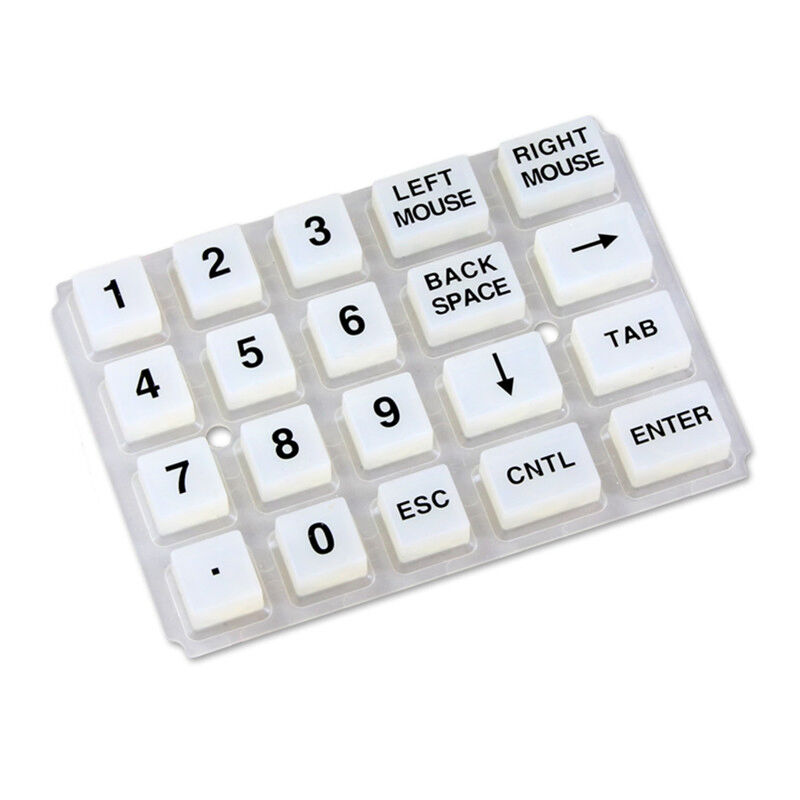

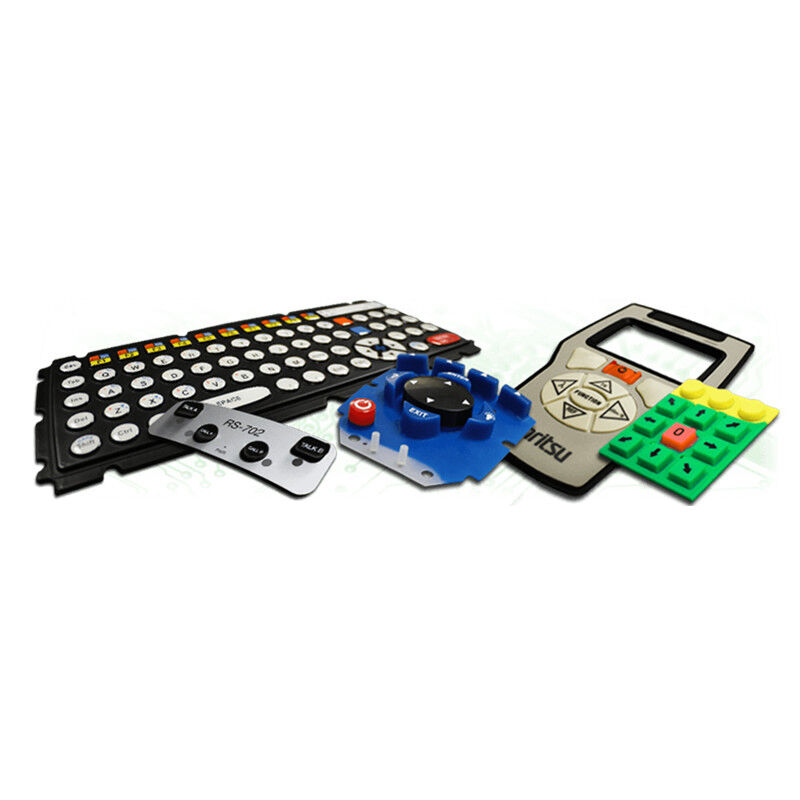

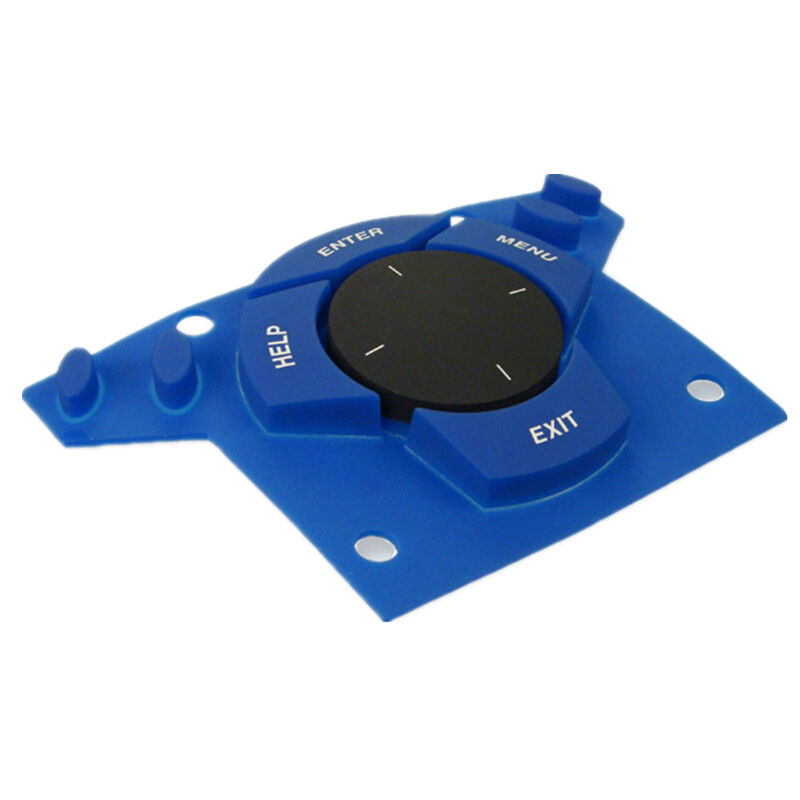

Product Gallery
Why Choose Our Silicone Keypads?
High reliability with low cost
100% function testing before shipment (RoHS compliant)
Three factories supporting mass production
Professional staff and administrative support
Expert sales team for customer service
Metal dome or silicone keypad options available
Waterproof seal design reaching IP65 standards
17 years experience working with famous brands including SANYO, Philips, Siemens, Mattel
OEM & ODM Welcome! We customize according to your demands. If you have custom designs or want private labels on existing models, please contact us.
100% Quality Guarantee! Payment options: PayPal, T/T, Western Union, cash (30% deposit, full payment before delivery). We ensure prompt delivery of high-quality products at reasonable prices.
100% Quality Check! Each product is individually checked before packing and shipping to ensure correct quantity, specifications, and condition.
Technical Specifications
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Factory Overview
Certifications
Frequently Asked Questions
What is your MOQ?
Our standard MOQ is 1000 pieces, but we accept smaller quantities for trial orders.
Can I get samples?
Yes. We provide existing samples free of charge. Custom designs require a small sample fee, which is refundable when orders reach certain quantities.
How long is the sample lead time?
Existing samples: 1-2 days. Custom designs: 3-7 days, depending on design complexity and tooling requirements.
How long is the production lead time?
MOQ production takes 15-20 days.
What file formats do you need for custom designs?
We accept JPG, AI, CDR, PDF, and other common formats. Our professional designers will create artwork for molds and printing screens.
How much is freight charge?
For small quantities, we recommend express delivery to save costs and ensure faster receipt. For large quantities, sea freight is recommended.
