Highlight
Eco-friendly silicone remote buttons
,Rubber membrane switch keypad
,Silicone remote control buttons
-
Model NO.TKM203
-
TypeButton
-
MaterialRubber, Silicone
-
Voltage3V
-
Transmission Distance<50m
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25- 100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
CertificationISO9001, RoHS, CE
-
Minimum Order Quantity100
Eco-Friendly Silicone Rubber Remote Control Keypad Buttons
Eco-Friendly Silicone Rubber Remote Control Keypad Buttons
With advancing technology, silicone keypads have become essential components in the electronics industry. Silicone rubber is an ideal material for keypads due to its low cost and versatility. Silicone rubber compounds feature unique organic and inorganic properties that make them superior for electronic parts requiring special characteristics. Compared to organic rubber, silicone rubber offers significantly better heat/cold resistance, weatherability, electrical insulation and conductivity, flex fatigue resistance, and tear strength.
Key advantages of silicone rubber keypads include cost-effectiveness, versatility, safety, and extreme environmental properties.
As the most functional part of a switch, silicone keypads provide electrical contact from the user to any device. Combining smooth tactile feel with exceptional durability, these keypads can withstand hundreds of thousands of actuations without failure. They utilize diverse contact systems ranging from gold pills actuating tactile metal domes to carbon pills - the most common contact type.
Two common mounting methods for silicone rubber in membrane switch assemblies include: placement in mounting rubber actuators using double-sided pressure-sensitive silicone rubber adhesive, and pull-through molding where the rubber component is pulled through a printed circuit board substrate for secure interference fit assembly.

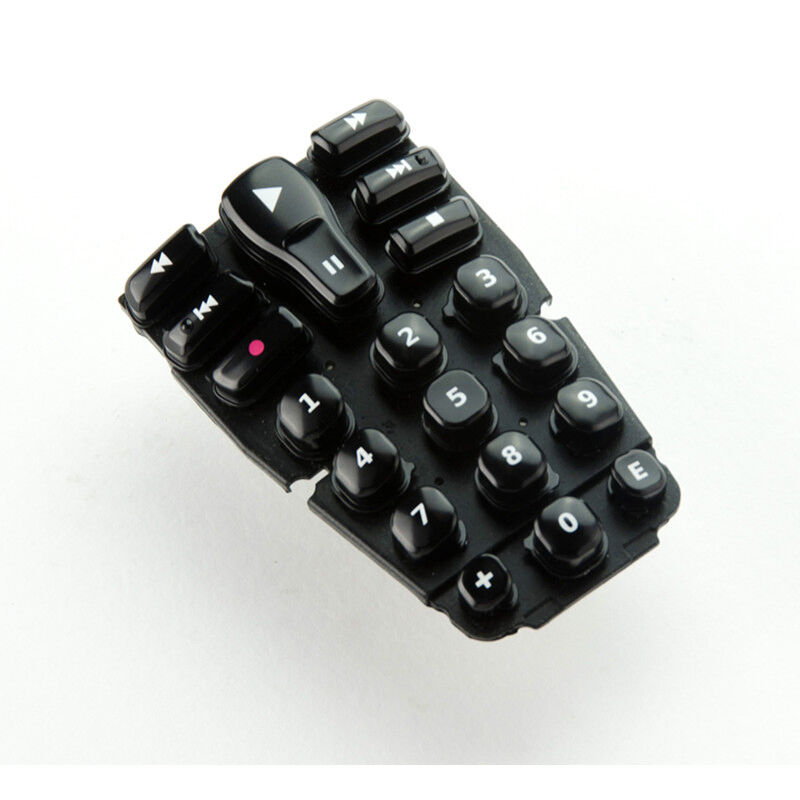

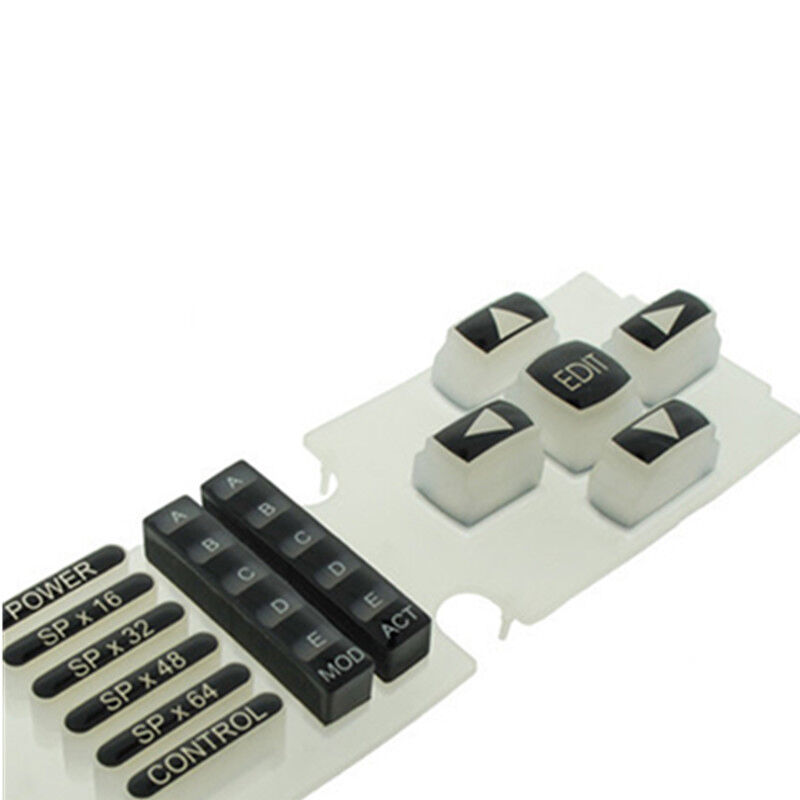

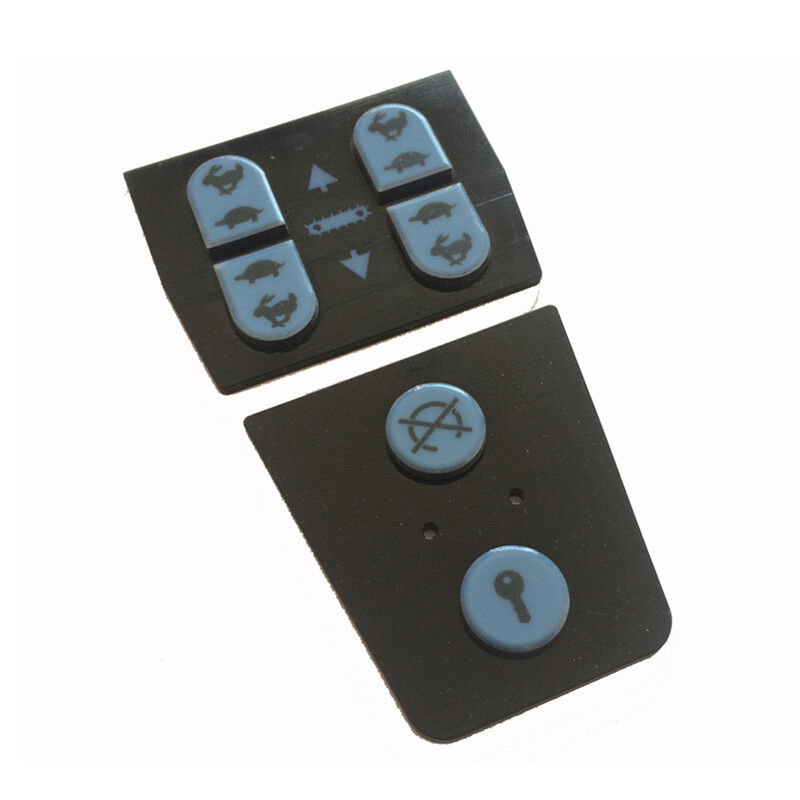

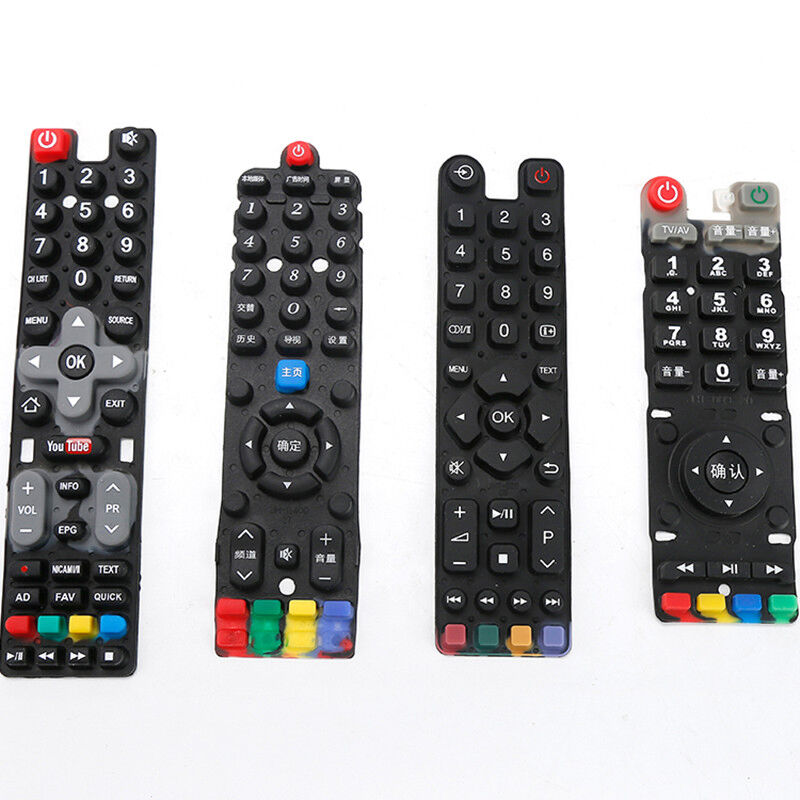

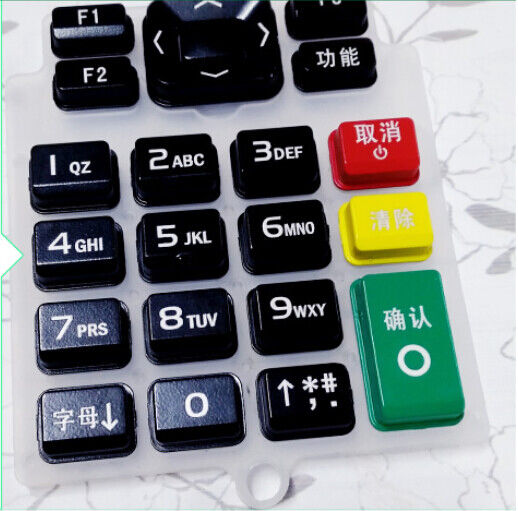

Product Gallery
Why Choose Our Silicone Rubber Keypads?
- High reliability with low cost
- 100% function testing before shipment with RoHS compliance
- Three factories supporting mass production capacity
- Professional staff and administrative support
- Expert sales team providing comprehensive customer service
- Available with metal dome or silicone keypad configurations
- Waterproof seal design reaching IP65 standards
- 17 years of experience working with renowned brands including SANYO, Philips, Siemens, and Mattel
OEM & ODM Welcome!
We offer complete customization according to your specific demands. Whether you have custom designs or want to add private labels to our existing models, our team is ready to assist.
100% Quality Guarantee!
Payment Options: PayPal, T/T, Western Union, Cash (30% deposit with full payment before delivery). We ensure prompt delivery of high-quality products at reasonable prices.
100% Quality Check!
Each product undergoes individual inspection before packing and shipping to ensure correct quantity, specifications, and perfect condition.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Manufacturing Facility
Certifications
Frequently Asked Questions
What is your minimum order quantity (MOQ)?
Our standard MOQ is 1000 pieces, but we accept smaller quantities for initial trial orders.
Can I get samples?
Yes, we provide existing samples free of charge. Custom designs require a small sample charge, which is refundable when orders reach certain quantities.
How long is the sample lead time?
Existing samples ship in 1-2 days. Custom designs require 3-7 days, depending on whether new printing screens or tooling are needed.
How long is the production lead time?
Production for MOQ quantities typically takes 15-20 days.
What file formats do you need for custom designs?
Our professional designers can work with JPG, AI, CDR, PDF, and other common formats. We create artwork for molds and printing screens.
How much is freight charge?
For small quantities, we recommend express delivery to save costs and ensure faster receipt. For large quantities, sea freight is more economical.
