Customized High Quality Conductive Silicone Buttons with Silk Screen Printing
-
Highlight
customized conductive silicone buttons
,silk screen printed silicone buttons
,rubber membrane switch with warranty
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Heat ResistanceSuperior
-
Cold ResistanceSuperior
-
WeatherabilitySuperior
-
Electrical InsulationSuperior
-
ConductivitySuperior
Customized High Quality Conductive Silicone Buttons with Silk Screen Printing
Customized High Quality Conductive Silicone Buttons
With advancing technology, silicone keypads have become essential components in the electronics industry. Silicone rubber is an ideal material for keypads due to its low cost and versatility. Silicone rubber compounds feature superior organic and inorganic properties that make them excellent for electronic parts requiring special characteristics.
Compared to organic rubber, silicone rubber offers significantly better heat and cold resistance, weatherability, electrical insulation and conductivity, flex fatigue resistance, and tear strength. Key advantages include cost-effectiveness, versatility, safety, and extreme environmental performance.
Product Functionality
As the most functional part of a switch, silicone keypads provide electrical contact from the user to any device. They combine smooth tactile feel with the durability to withstand hundreds of thousands of actuations without failure. Contact systems range from gold pills actuating tactile metal domes to carbon pills, which are the most common contact type.
Two common mounting methods for silicone rubber in membrane switch assemblies include: mounting rubber actuators using double-sided pressure-sensitive silicone rubber adhesive, and pull-through molding where the rubber component is secured through a printed circuit board substrate with an interference fit.

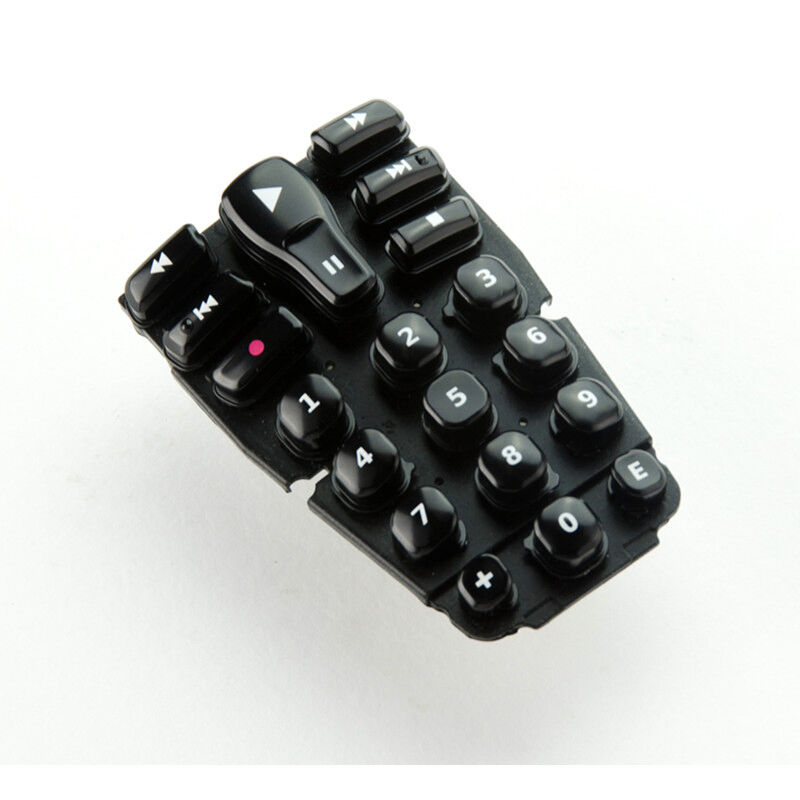

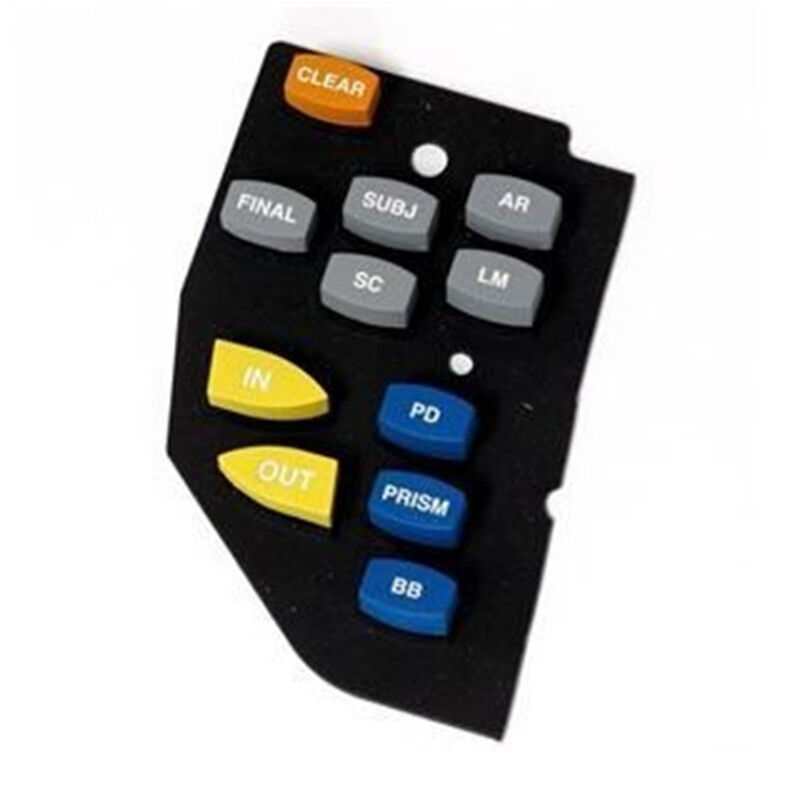

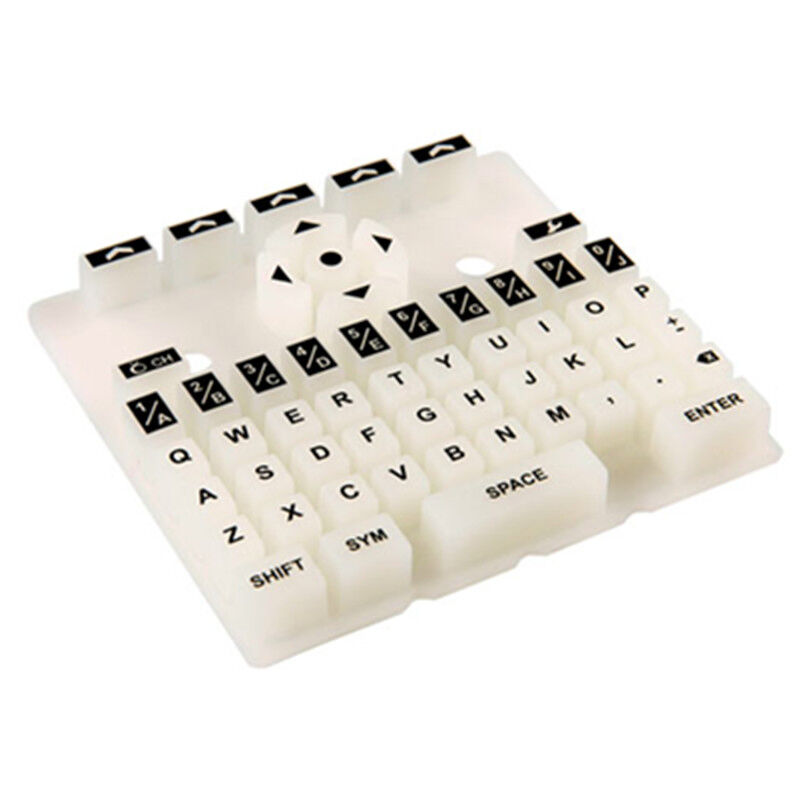

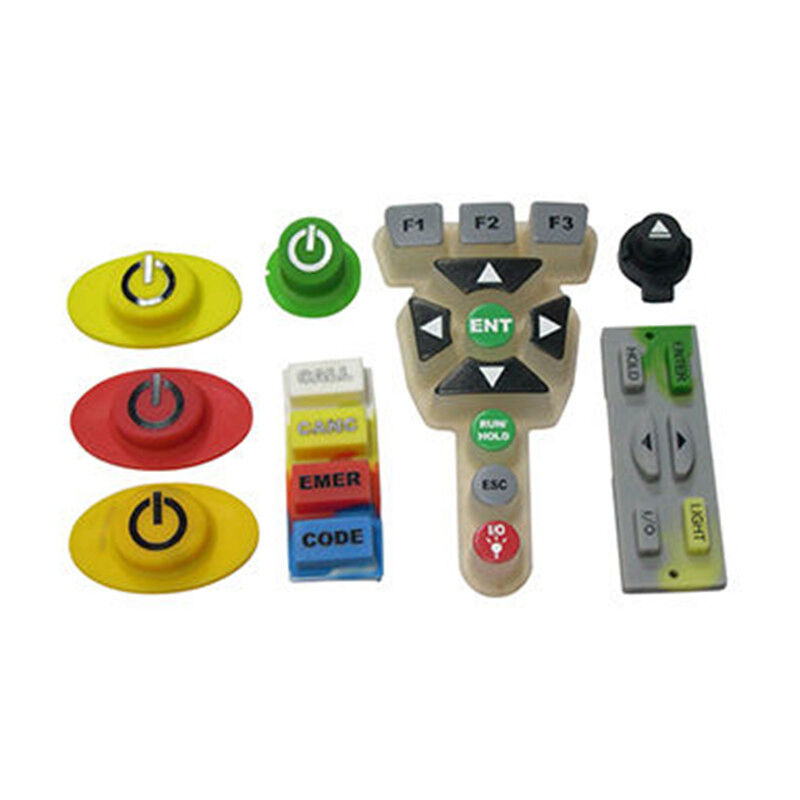

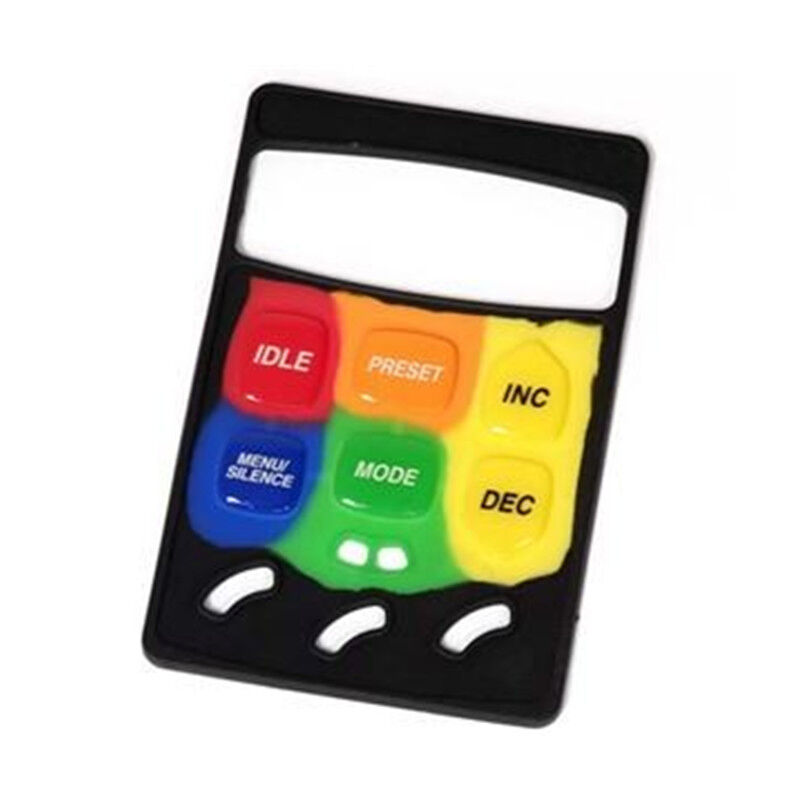

Product Gallery
Why Choose Our Conductive Silicone Buttons
- High reliability with low cost
- 100% function testing before shipment (RoHS compliant)
- Three factories supporting mass production
- Professional staff and administrative support
- Expert sales team for customer service
- Metal dome or silicone keypad options available
- Waterproof seal design reaching IP65 standard
- 17 years of experience working with famous brands including SANYO, Philips, Siemens, and Mattel
OEM & ODM Welcome!
We can customize according to your specific demands. If you have custom designs or want private labels on our existing models, please contact us.
100% Quality Guarantee!
Payment options: PayPal, T/T, Western Union, cash (30% deposit with full payment before delivery). We ensure prompt delivery of high-quality products at reasonable prices.
100% Quality Check!
Each product is individually checked before packing and shipping to ensure correct quantity, specifications, and excellent condition.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Factory Overview
Certifications
Frequently Asked Questions
What is your minimum order quantity (MOQ)?
Our standard MOQ is 1000 pieces, but we accept smaller quantities for trial orders.
Can I get samples?
Yes, we provide existing samples free of charge. Custom design samples may incur a small charge, which is refundable when orders reach certain quantities.
How long is the sample lead time?
Existing samples: 1-2 days (free). Custom designs: 3-7 days, depending on design complexity and printing screen requirements.
How long is the production lead time?
15-20 days for minimum order quantities.
What file formats do you need for custom designs?
We accept JPG, AI, CDR, PDF, and other common formats. Our professional designers will create artwork for molds or printing screens.
How much is the freight charge?
We recommend express delivery for small quantities to save costs and ensure faster delivery. For large quantities, sea freight is recommended.
