Highlight
silicone rubber epoxy membrane switch
,rubber membrane switch with epoxy
,silicone membrane switch with warranty
-
MaterialPET /PC
-
Adhesive3M467 & 3M468
-
Life Cycles>1million Times
-
Wire Lead Resistance<1Ω/CM
-
Rated Current25-100mA,0~30V DC
-
Rated Voltage<50V, DC
-
Insulation Resistance<100MΩ,250V DC
-
Switch TravelFlat Type 0.05-0.3mm
-
Tactile Type0.3-1.5mm
-
Operation Temperature-40ºC~70ºC
-
Operation HumidityAt40ºC,<98%RH
-
Dome Springback Time<5 Msec
-
Base Material Voltage1500 V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Life Time> 1 Million Times
-
Minimum Order Quantity1
-
Price1.5
Silicone Rubber Epoxy 2

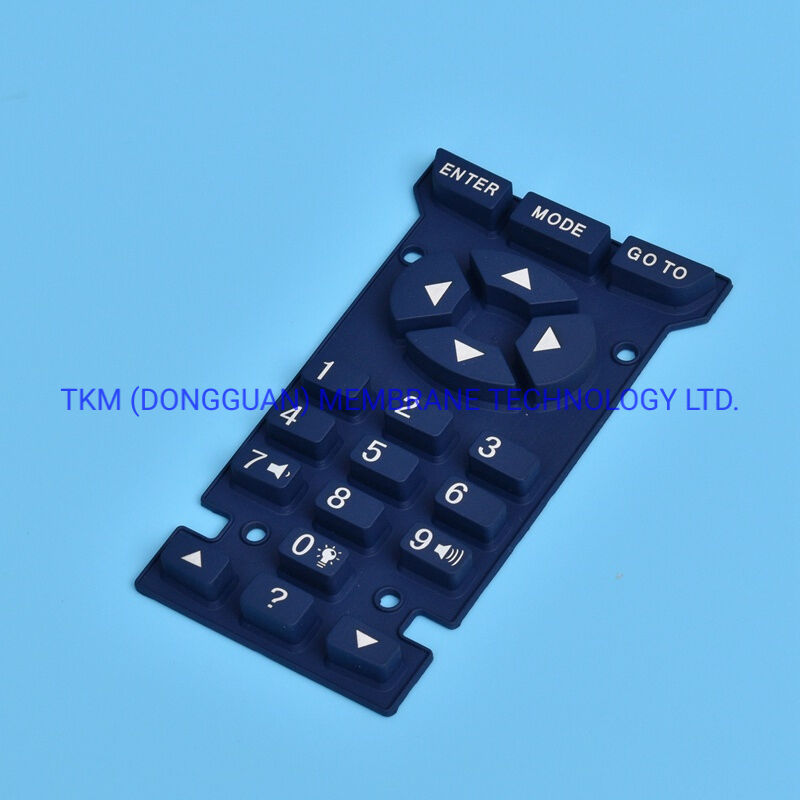

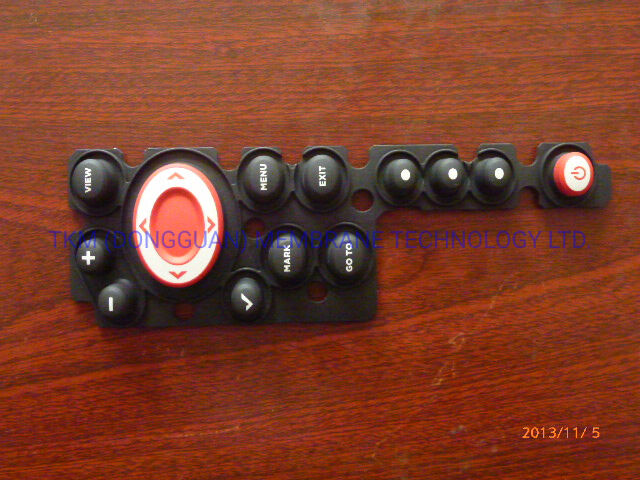

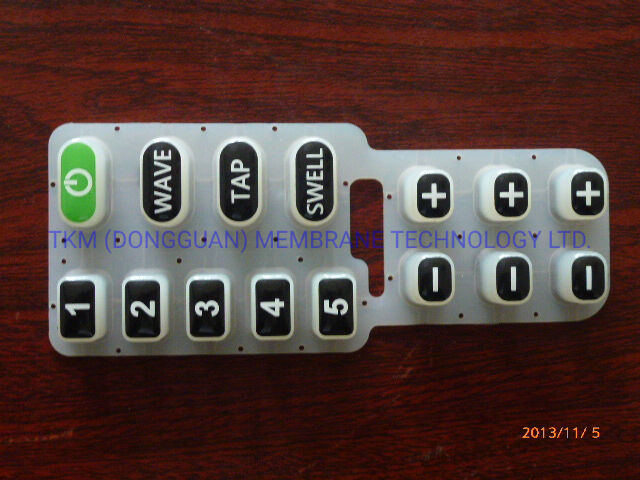

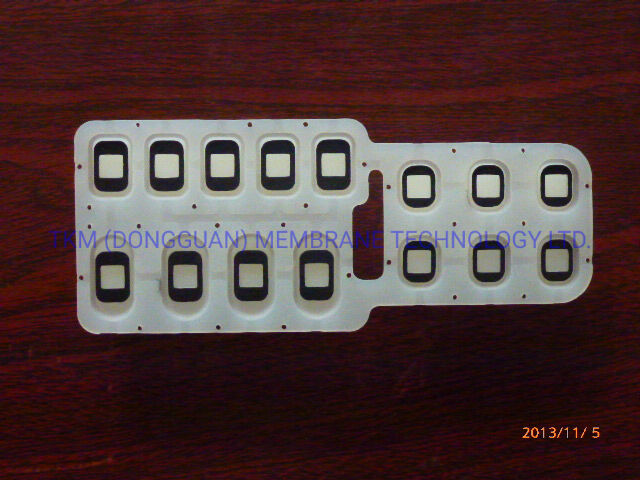

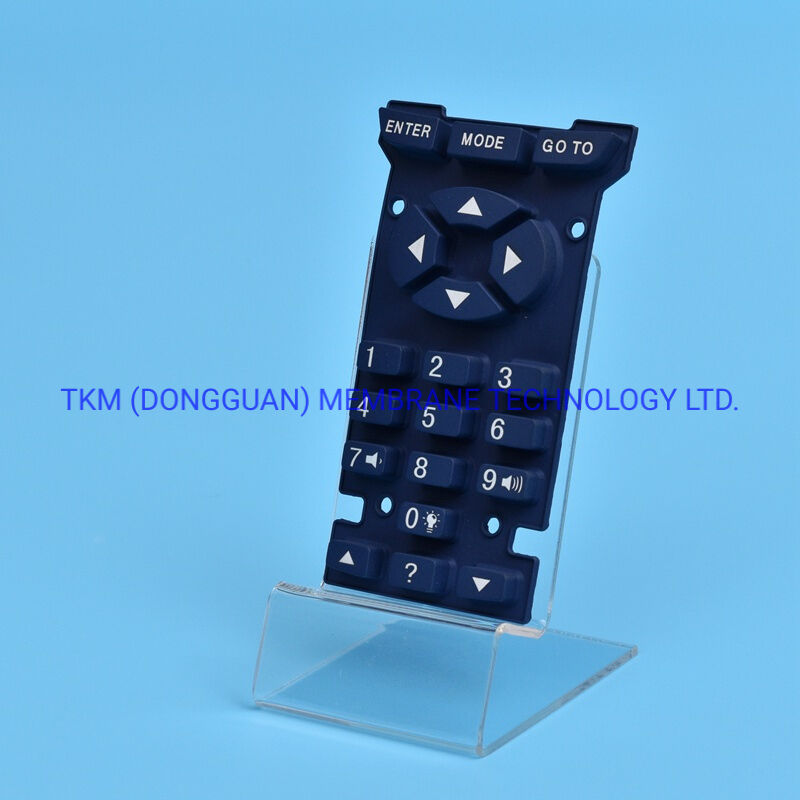

Silicone Rubber Epoxy 2 Membrane Switch
Product Overview
High-quality membrane switch with windows featuring tactile feedback keys with embossing, silk screen printing, and over 1 million life cycles. Available with metal dome or silicone keypad options.
Key Features
- Membrane Switch with windows
- Touch feeling keys with embossing
- Silk Screen Printing
- Over 1 million life cycles
- Metal dome or silicone keypad available
Product Specifications
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | Foundation |
| Model Number | HC-MS-003 |
| Certification | ISO9001:2008, SGS, Rohs |
Materials & Construction
- Material: PET/PC
- Adhesive: 3M467 & 3M468 or as per request
- High lifetime: >1 million times
- Certifications: ISO9001:2008, RoHS, SGS
- High quality construction
Technical Specifications
| Wire Lead Resistance | <1Ω/CM | Life Time | > 1 Million times |
|---|---|---|---|
| Rated Current | 25-100mA, 0~30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | <50V, DC | Operation Humidity | at 40ºC, <98%RH |
| Insulation Resistance | <100MΩ, 250V DC | Dome Springback Time | <5 msec |
| Switch Travel | Flat Type 0.05-0.3mm | Base Material Voltage Withstand | 1500 V DC |
| Tactile Type | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degree |
Commercial Terms
| MOQ | 100pcs |
|---|---|
| Payment Terms | T/T or L/C |
| Mold Charge | 100% in Advance |
| Sample Time | 9-10 days after drawing approval |
| Lead Time for Production | 15-22 days after sample approval |
Applications
Our membrane switches are widely used in:
- Medical Equipment
- Telecommunications apparatus
- Telephone systems
- Household appliances
- Security systems
- Industrial controls
Company Advantages
- Top managers are experienced in the same field for many years
- Professional staff and workers
- Strong R & D capability
- Quick Delivery
- Competitive price
- Two factories available for large orders
- Expert sales team and good customer service
Product Gallery
