Highlight
silicone rubber keypad for epoxy
,rubber membrane switch with warranty
,epoxy compatible silicone keypad
-
Production Capacity50000000/Year
-
Specification20g
-
MaterialPET /PC
-
Adhesive3M467 & 3M468
-
Life Time>1million Times
-
Wire Lead Resistance<1Ω/CM
-
Rated Current25-100mA,0~30V DC
-
Rated Voltage<50V, DC
-
Insulation Resistance<100MΩ,250V DC
-
Switch TravelFlat Type 0.05-0.3mm
-
Tactile Type0.3-1.5mm
-
Operation Temperature-40ºC~70ºC
-
Operation HumidityAt40ºC,<98%RH
-
Dome Springback Time<5 Msec
-
Base Material Voltage Withstand1500 V DC
-
Minimum Order Quantity1
-
Price1.5

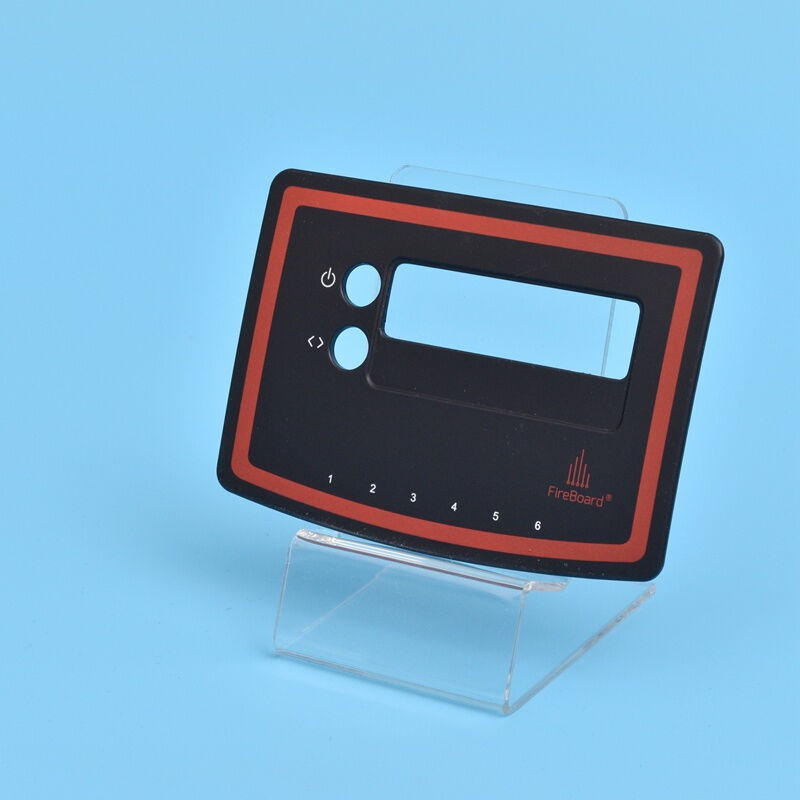

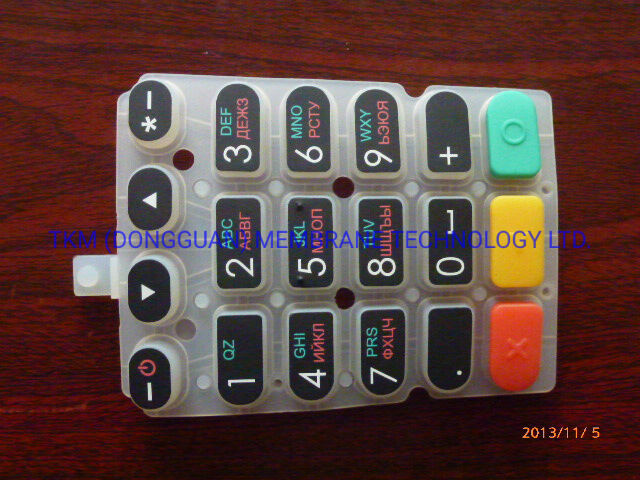

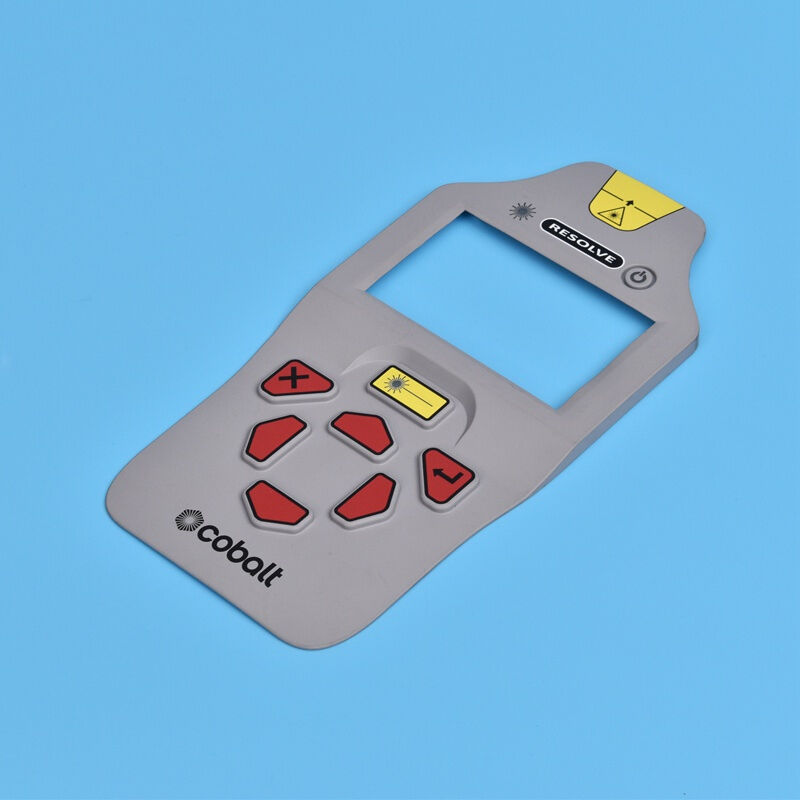

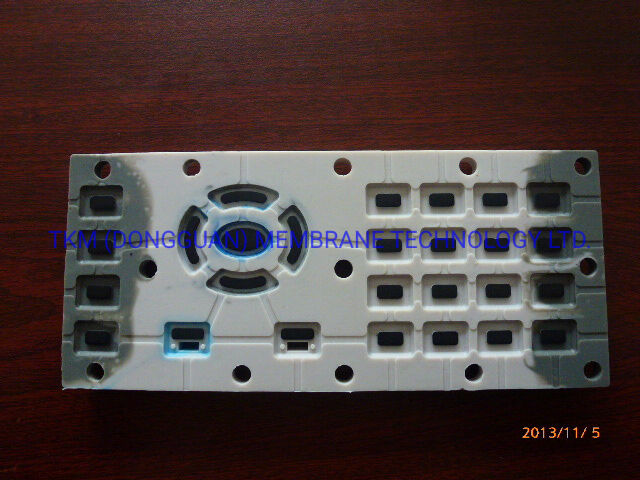

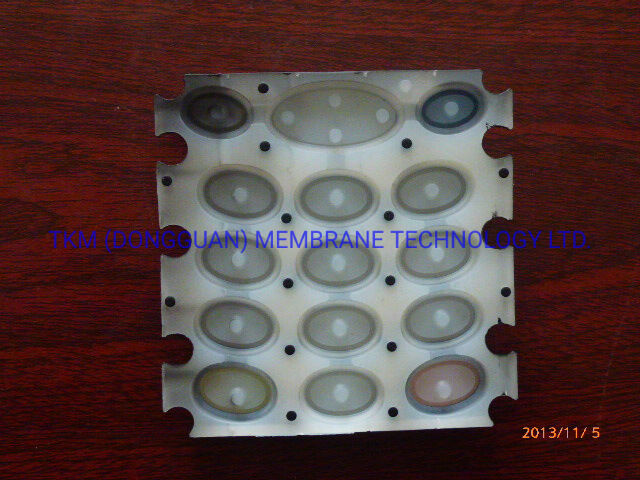

Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
High-quality membrane switch designed for epoxy applications with superior tactile response and durability.
Product Overview
- Membrane Switch with windows
- Touch feeling keys with embossing
- Silk Screen Printing
- Over 1 million life cycles
- Metal dome or silicone keypad options available
Product Specifications
| Place of Origin | Dong Guan China |
| Brand Name | Foundation |
| Model Number | HC-MS-003 |
| Certification | ISO9001:2008, SGS, Rohs |
Materials & Construction
- Material: PET / PC
- Adhesive: 3M467 & 3M468 or as per request
- High lifetime: >1 million cycles
- Certifications: ISO9001:2008, RoHS, SGS
- Premium quality construction
Technical Specifications
| Wire Lead Resistance | <1Ω/CM | Lifetime | > 1 Million times |
| Rated Current | 25-100mA, 0~30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | <50V, DC | Operation Humidity | at 40ºC, <98%RH |
| Insulation Resistance | <100MΩ, 250V DC | Dome Springback Time | <5 msec |
| Switch Travel | Flat Type 0.05-0.3mm | Base Material Voltage Withstand | 1500 V DC |
| Tactile Type | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degree |
Commercial Terms
| MOQ | 100pcs |
| Payment Terms | T/T or L/C |
| Mold Charge | 100% in Advance |
| Sample Time | 9-10 days after drawing approval |
| Production Lead Time | 15-22 days after sample approval |
Applications
- Medical Equipment
- Telecommunications Apparatus
- Telephone Systems
- Household Appliances
- Security Systems
- Industrial Controls
Company Advantages
- Experienced top management in the field
- Professional staff and workers
- Strong R&D capability
- Quick Delivery
- Competitive pricing
- Two factories available for large orders
- Expert sales team and excellent customer service
