Highlight
silicone rubber epoxy adhesive
,rubber membrane switch material
,epoxy for silicone rubber bonding
-
MaterialPET /PC
-
Adhesive3M467 & 3M468
-
Life Cycles>1million Times
-
Wire Lead Resistance<1Ω/CM
-
Rated Current25-100mA,0~30V DC
-
Operation Temperature-40ºC~70ºC
-
Rated Voltage<50V, DC
-
Operation HumidityAt40ºC,<98%RH
-
Insulation Resistance<100MΩ,250V DC
-
Dome Springback Time<5 Msec
-
Switch TravelFlat Type 0.05-0.3mm
-
Base Material Voltage1500 V DC
-
Tactile Type0.3-1.5mm
-
Tail FlexibilityAny Angle Within 180 Degree
-
Life Time> 1 Million Times
-
Minimum Order Quantity1
-
Price1.5
Silicone Rubber Epoxy
Silicone Rubber Epoxy Membrane Switch
High-performance membrane switch with windows featuring tactile feedback keys and embossing for superior user experience.
Key Features
- Membrane switch with integrated windows
- Tactile feedback keys with embossing
- High-quality silk screen printing
- Over 1 million life cycles
- Metal dome or silicone keypad options available
Product Specifications
| Place of Origin | Dong Guan, China |
| Brand Name | Foundation |
| Model Number | HC-MS-003 |
| Certification | ISO9001:2008, SGS, Rohs |
Material Composition
- Material: PET/PC
- Adhesive: 3M467 & 3M468 or custom options
- High lifetime: >1 million cycles
- Certifications: ISO9001:2008, RoHS, SGS
- Premium quality construction
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Wire Lead Resistance | <1Ω/CM | Lifetime | >1 Million cycles |
| Rated Current | 25-100mA, 0~30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | <50V, DC | Operation Humidity | at 40ºC, <98% RH |
| Insulation Resistance | <100MΩ, 250V DC | Dome Springback Time | <5 msec |
| Switch Travel | Flat Type 0.05-0.3mm | Base Material Voltage Withstand | 1500 V DC |
| Tactile Type | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degrees |
Commercial Terms
| Minimum Order Quantity | 100pcs |
| Payment Terms | T/T or L/C |
| Mold Charge | 100% in Advance |
| Sample Time | 9-10 days after drawing approval |
| Production Lead Time | 15-22 days after sample approval |
Applications
- Medical Equipment
- Telecommunications Apparatus
- Telephone Systems
- Household Appliances
- Security Systems
- Industrial Controls
Company Advantages
- Experienced top management with extensive field expertise
- Professional staff and skilled workforce
- Strong research and development capabilities
- Quick delivery times
- Competitive pricing structure
- Two factories available for large order fulfillment
- Expert sales team and exceptional customer service

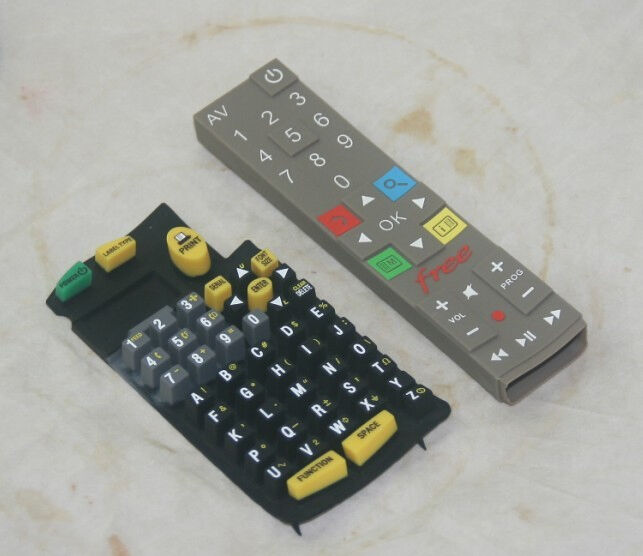

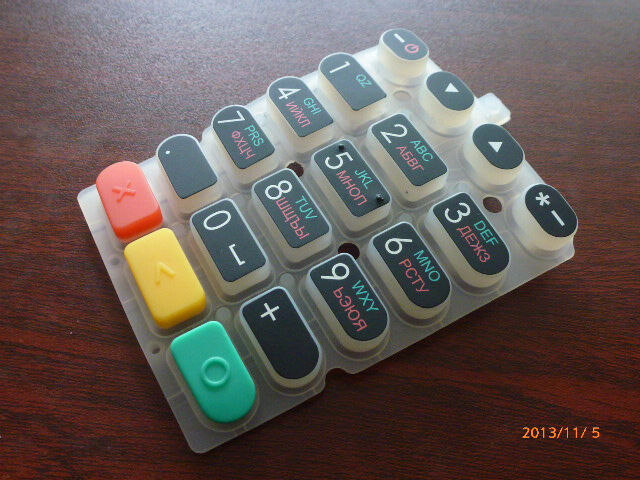

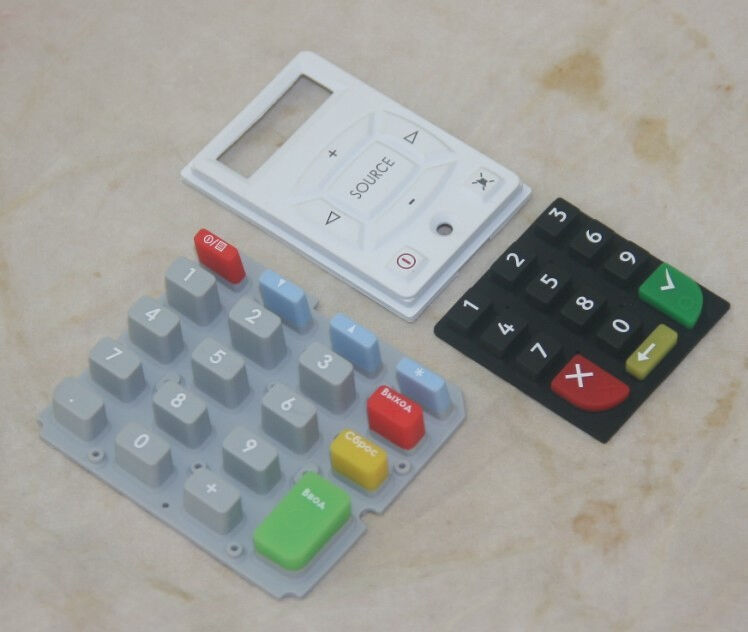

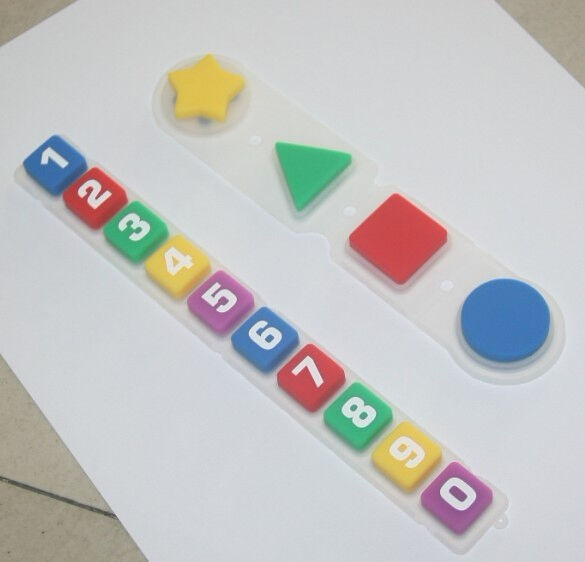

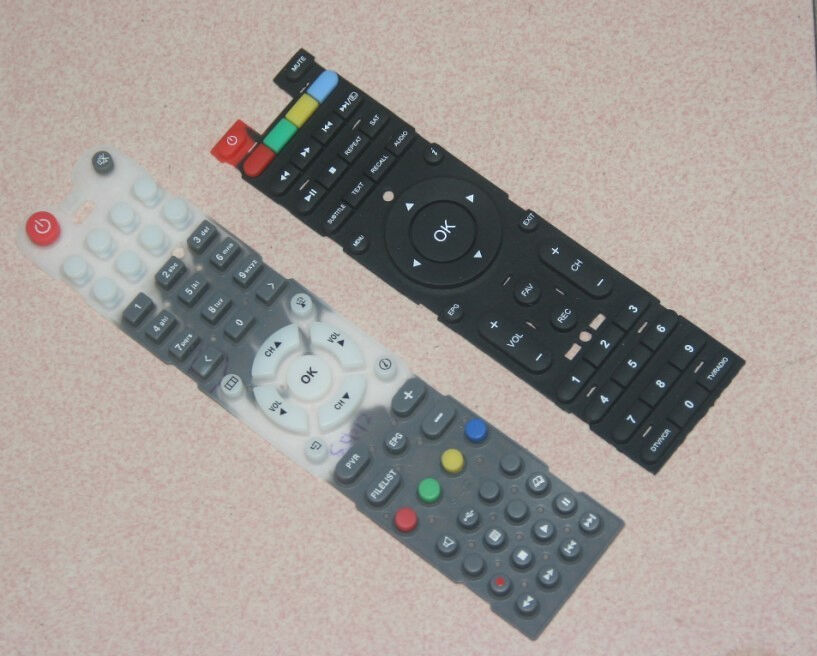

Product Images
