Highlight
silicone rubber keypad membrane switch
,rubber membrane switch with warranty
,silicone keypad for industrial use
-
Transport Package10PCS
-
Model NO.TKM224
-
Specification20g
-
Production Capacity50000000/Year
-
MaterialPET /PC
-
Adhesive3M467 & 3M468
-
Life Time>1million Times
-
Wire Lead Resistance<1Ω/CM
-
Rated Current25-100mA,0~30V DC
-
Rated Voltage<50V, DC
-
Insulation Resistance<100MΩ,250V DC
-
Switch TravelFlat Type 0.05-0.3mm
-
Operation Temperature-40ºC~70ºC
-
Operation HumidityAt40ºC,<98%RH
-
Dome Springback Time<5 Msec
-
Minimum Order Quantity1
-
Price1.5

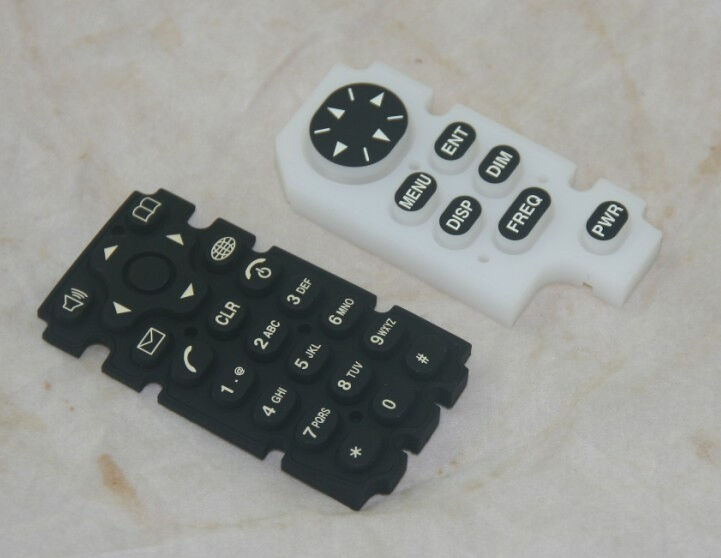

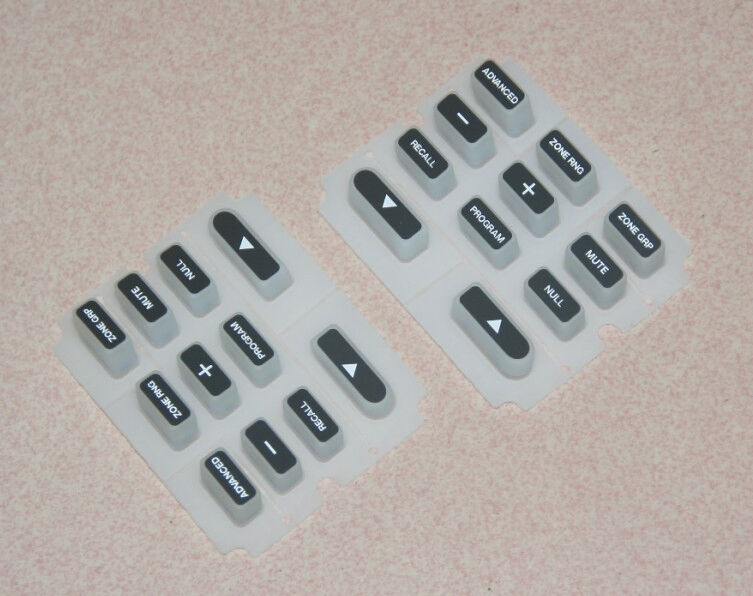

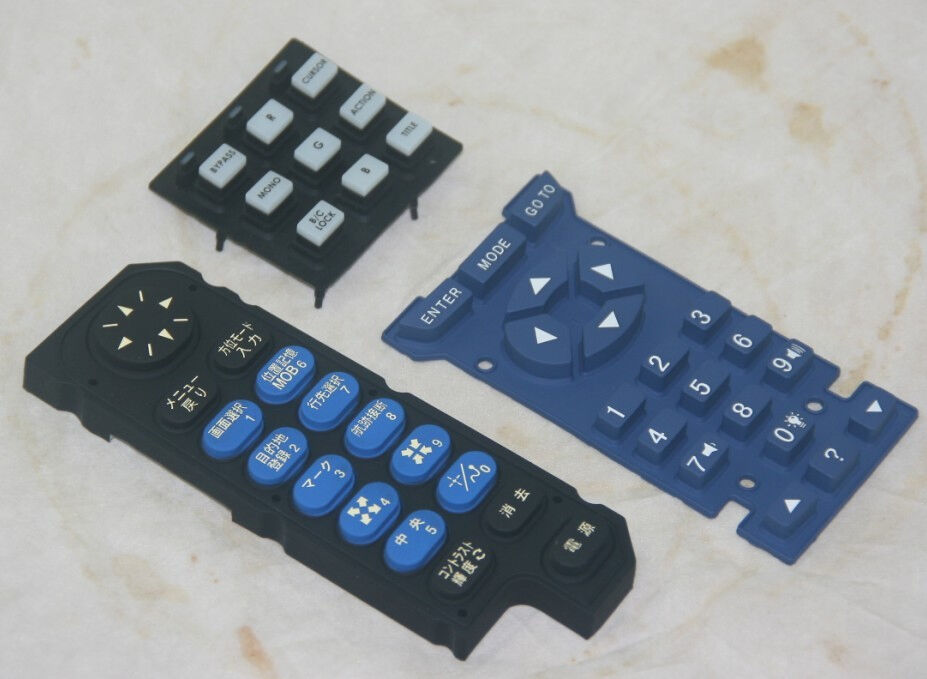

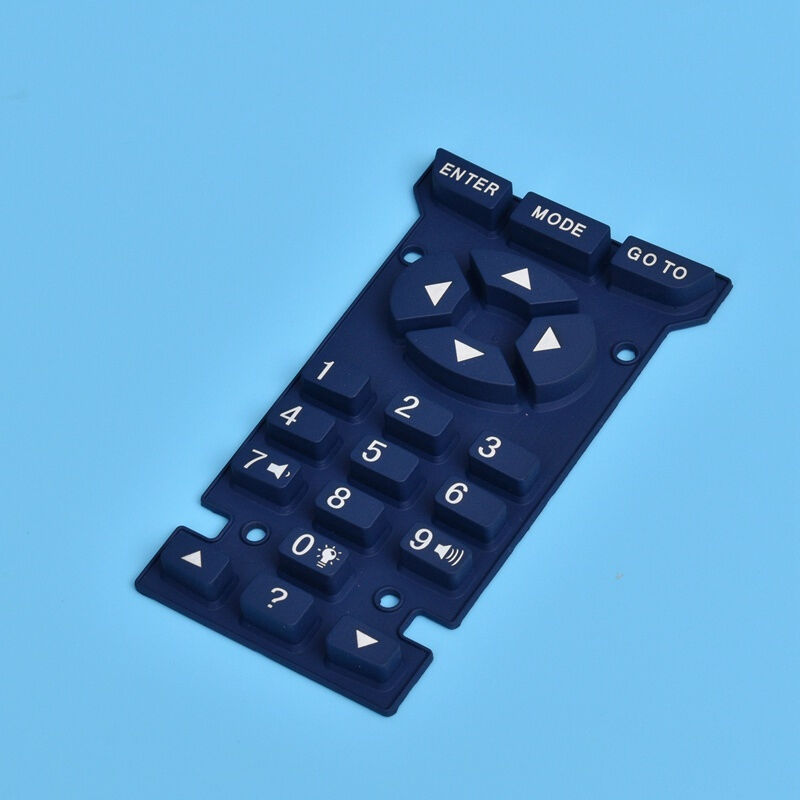

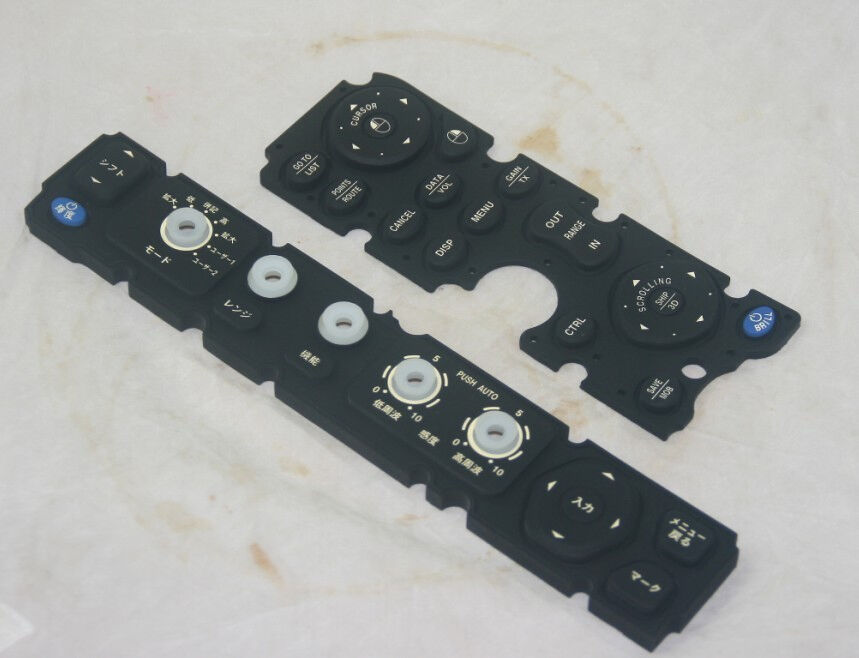

Silicone Rubber Keypad 2
Silicone Rubber Keypad 2 - Professional Membrane Switch
High-quality membrane switch with tactile feedback, designed for reliable performance across various industrial applications.
Key Features
- Membrane Switch with integrated windows
- Tactile feedback keys with embossing
- High-quality silk screen printing
- Exceptional durability: Over 1 million life cycles
- Flexible options: Metal dome or silicone keypad available
Product Information
Place of Origin: Dong Guan, China
Brand Name: Foundation
Model Number: HC-MS-003
Certification: ISO9001:2008, SGS, Rohs
Brand Name: Foundation
Model Number: HC-MS-003
Certification: ISO9001:2008, SGS, Rohs
Material Specifications
- Material: PET / PC
- Adhesive: 3M467 & 3M468 or custom options available
- High lifetime: >1 million cycles
- Certifications: ISO9001:2008, RoHS, SGS
- Premium quality construction
Commercial Terms
MOQ: 100pcs
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval
Production Lead Time: 15-22 days after sample approval
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval
Production Lead Time: 15-22 days after sample approval
Applications
- Medical Equipment
- Telecommunications Apparatus
- Telephone Systems
- Household Appliances
- Security Systems
- Industrial Controls
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Wire Lead Resistance | <1Ω/CM | Lifetime | > 1 Million times |
| Rated Current | 25-100mA, 0~30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | <50V, DC | Operation Humidity | at 40ºC, <98%RH |
| Insulation Resistance | <100MΩ, 250V DC | Dome Springback Time | <5 msec |
| Switch Travel (Flat Type) | 0.05-0.3mm | Base Material Voltage Withstand | 1500 V DC |
| Switch Travel (Tactile Type) | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degree |
Company Advantages
Experienced top management with extensive field expertise
Professional staff and skilled workforce
Strong research and development capabilities
Quick delivery and reliable turnaround times
Competitive pricing structure
Two factories available for large order capacity
Expert sales team and exceptional customer service
