Highlight
silicone rubber keypad membrane switch
,rubber membrane switch keypad
,silicone keypad with warranty
-
Weight20g
-
Life Cycles>1 Million Times
-
Wire Lead Resistance<1Ω/CM
-
Rated Current25-100mA,0~30V DC
-
Rated Voltage<50V, DC
-
Insulation Resistance<100MΩ,250V DC
-
Switch TravelFlat Type 0.05-0.3mm
-
Tactile Type0.3-1.5mm
-
Operation Temperature-40ºC~70ºC
-
Operation HumidityAt40ºC,<98%RH
-
Dome Springback Time<5 Msec
-
Base Material Voltage1500 V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
MaterialPET /PC
-
Adhesive3M467 & 3M468
-
Minimum Order Quantity1
-
Price1.5

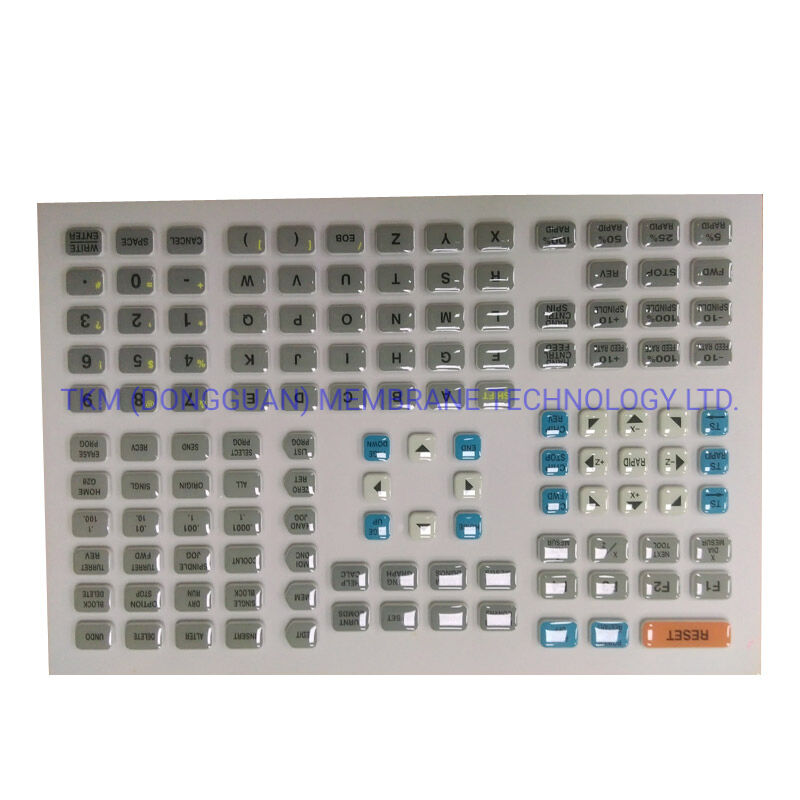

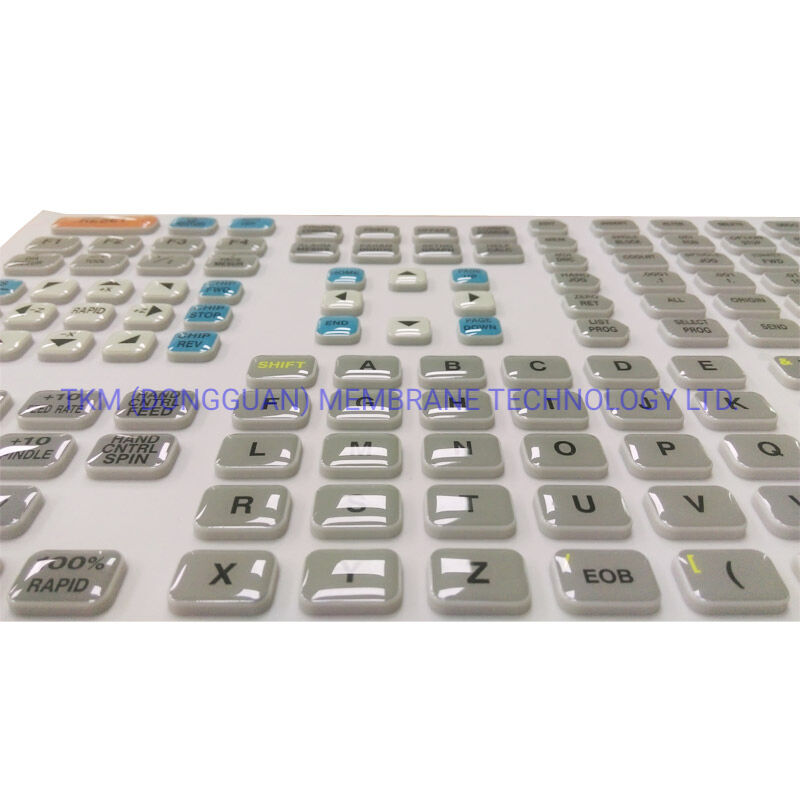

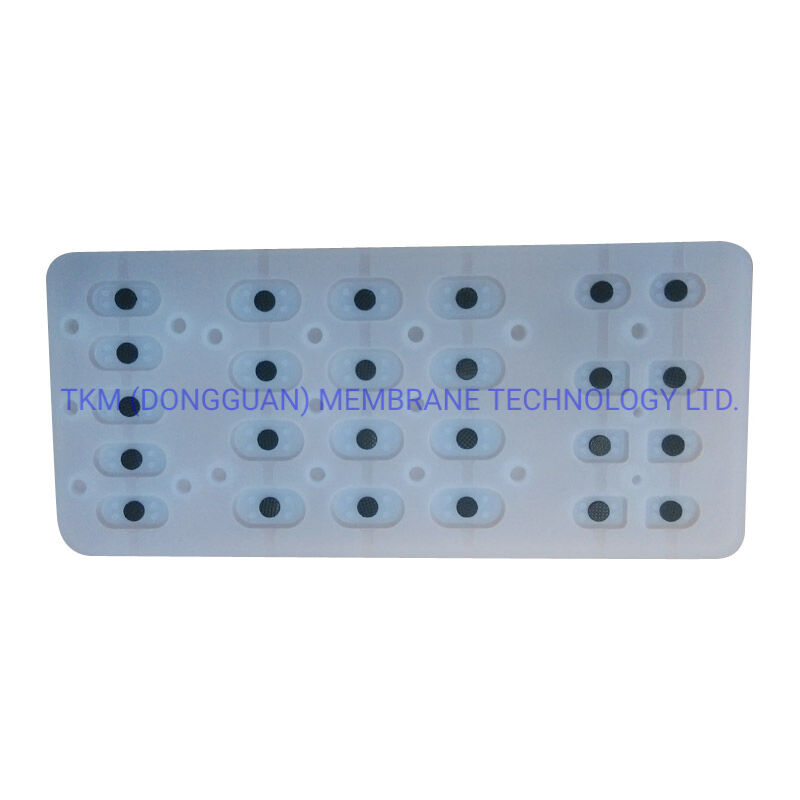

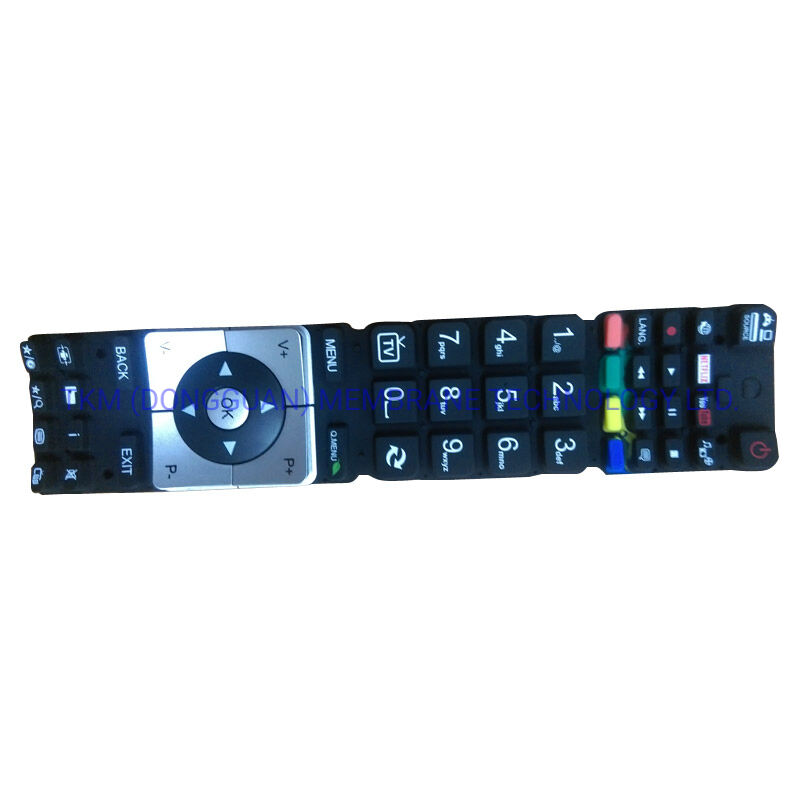

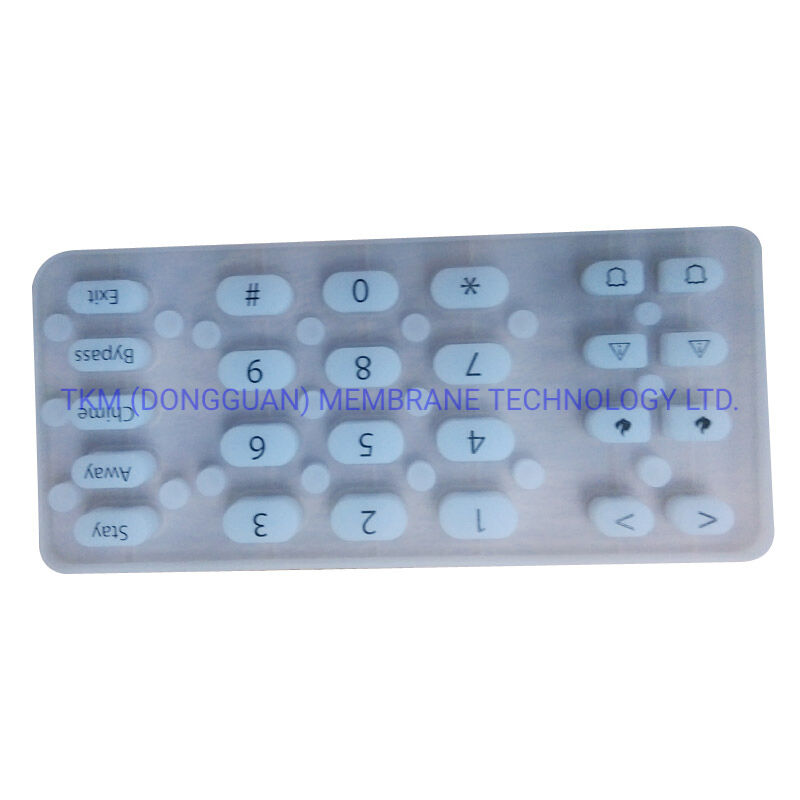

Silicone Rubber Keypad 3
Silicone Rubber Keypad 3
High-quality membrane switch with tactile feedback and embossed keys, designed for reliable performance across various industrial applications.
Product Features
- Membrane switch with integrated windows
- Tactile feedback keys with embossing
- Precision silk screen printing
- Exceptional durability: over 1 million life cycles
- Compatible with metal dome or silicone keypad configurations
Technical Specifications
| Wire Lead Resistance | < 1Ω/CM | Lifetime | > 1 Million cycles |
| Rated Current | 25-100mA, 0-30V DC | Operation Temperature | -40ºC to 70ºC |
| Rated Voltage | < 50V DC | Operation Humidity | at 40ºC, < 98% RH |
| Insulation Resistance | < 100MΩ, 250V DC | Dome Springback Time | < 5 msec |
| Switch Travel | Flat Type 0.05-0.3mm | Base Material Voltage Withstand | 1500 V DC |
| Tactile Type | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degrees |
Construction Materials
- Primary Material: PET / PC
- Adhesive: 3M467 & 3M468 or custom options
- High lifetime: > 1 million cycles
- Certifications: ISO9001:2008, RoHS, SGS
- Premium quality construction
Commercial Terms
- Minimum Order Quantity: 100 pieces
- Payment Terms: T/T or L/C
- Mold Charge: 100% in advance
- Sample Time: 9-10 days after drawing approval
- Production Lead Time: 15-22 days after sample approval
Applications
Our membrane switches are engineered for use in:
- Medical Equipment
- Telecommunications Apparatus
- Telephone Systems
- Household Appliances
- Security Systems
- Industrial Controls
Company Information
Place of Origin: Dong Guan, China
Brand Name: Foundation
Model Number: HC-MS-003
Certification: ISO9001:2008, SGS, Rohs
Manufacturing Advantages
- Experienced management team with extensive industry expertise
- Professional technical staff and skilled workforce
- Strong research and development capabilities
- Quick delivery and reliable turnaround times
- Competitive pricing structure
- Two factory locations to accommodate large orders
- Expert sales team and comprehensive customer service
