Pet Circuits Assemble SMD Electronic Components Silicone Membrane Keyboards
-
Highlight
SMD silicone membrane keyboards
,electronic components membrane switch
,pet circuits rubber membrane keyboards
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Waterproof RatingIP65
-
Actuation CyclesWithstand Millions Of Cycles
-
MaterialSilicone Rubber
-
Contact TypeGold Pills Or Carbon Pills
-
Mounting MethodsDouble-sided Adhesive Or Pull-through
Pet Circuits Assemble SMD Electronic Components Silicone Membrane Keyboards
PET Circuits SMD Electronic Components Silicone Membrane Keyboards
With advancing technology, silicone keypads have become essential components in the electronics industry. Silicone rubber offers an ideal combination of low cost and versatility, making it perfect for keypad applications. Its unique organic and inorganic properties provide superior performance characteristics including excellent heat/cold resistance, weather durability, electrical insulation and conductivity, flex fatigue resistance, and tear strength.
Key advantages of silicone rubber keypads include cost-effectiveness, versatility, safety, and extreme environmental performance properties.
Product Functionality
As the primary functional component of a switch, silicone keypads facilitate electrical contact between users and devices. They combine smooth tactile feedback with the durability to withstand hundreds of thousands of actuations without failure. Contact systems vary from gold pills actuating tactile metal domes to carbon pills, with carbon being the most common contact type.
Two primary mounting methods are used for silicone rubber in membrane switch assemblies. The first employs double-sided pressure-sensitive silicone rubber adhesive on a holder, while the second incorporates molded pull-through features that secure the component to printed circuit board substrates through interference fitting.

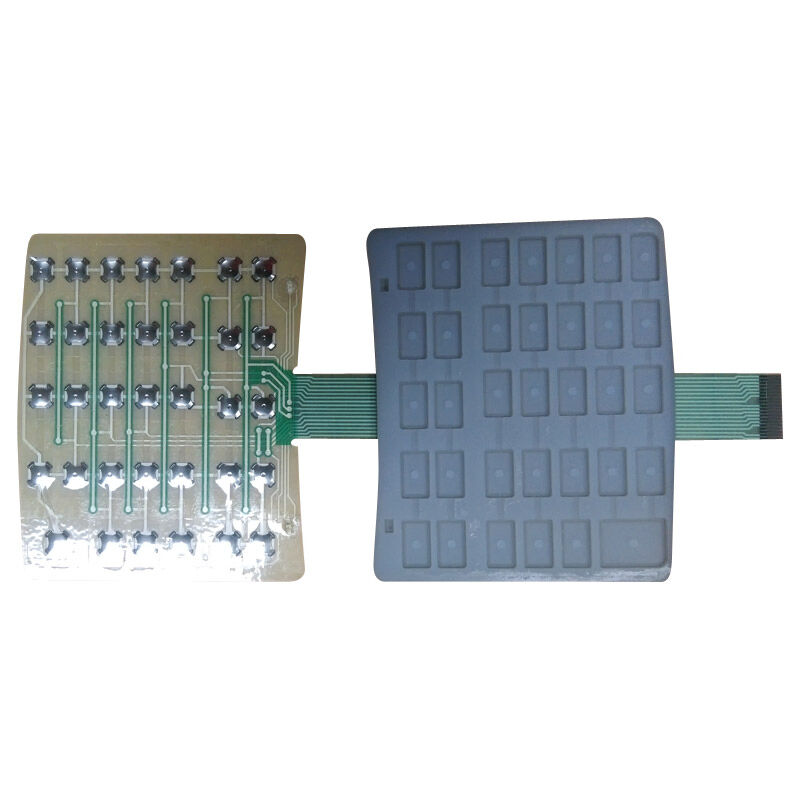

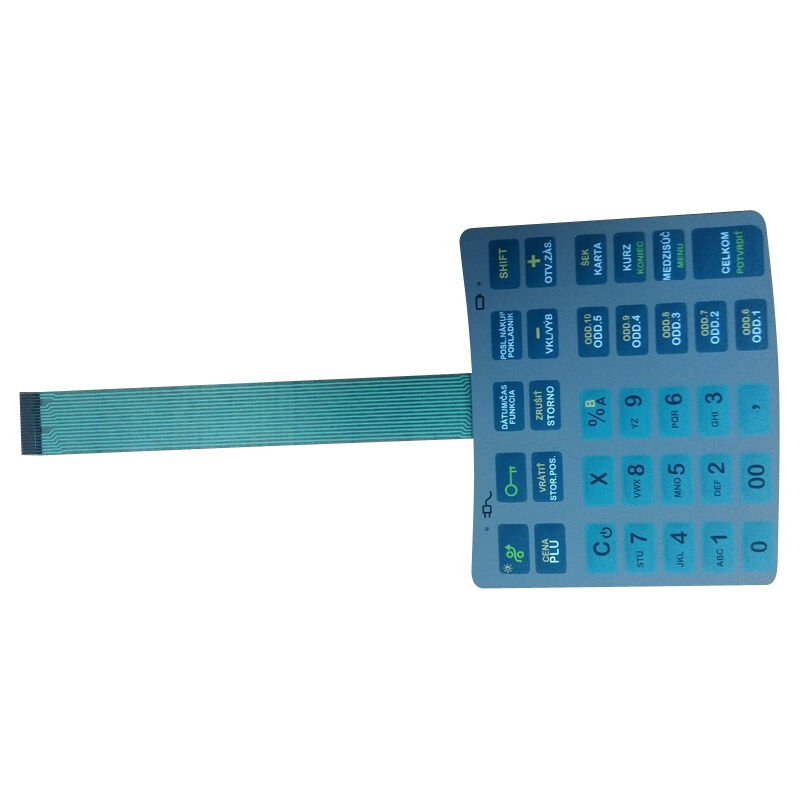

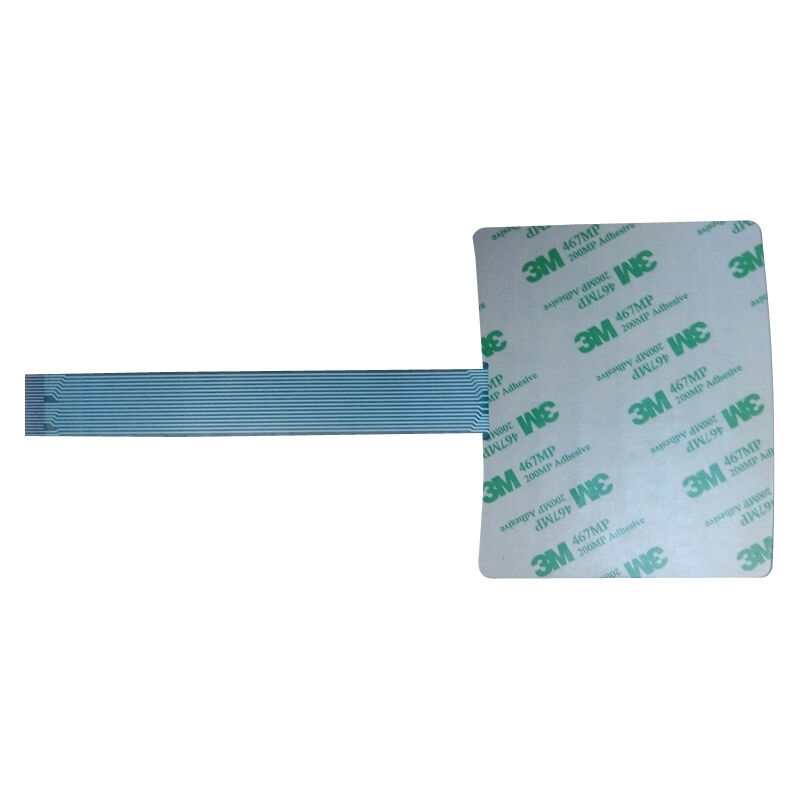

Product Gallery
Why Choose Our Silicone Membrane Keyboards
- High reliability with cost-effective pricing
- 100% functional testing before shipment with RoHS compliance
- Three manufacturing facilities supporting mass production
- Professional staff and administrative support
- Expert sales team providing comprehensive customer service
- Available with metal dome or silicone keypad options
- Waterproof sealing designs reaching IP65 standards
- 17 years of experience collaborating with renowned brands including SANYO, Philips, Siemens, and Mattel
OEM & ODM Services Welcome
We specialize in customizing products according to your specific requirements. Whether you need customized designs or private labeling on existing models, our team is ready to assist.
100% Quality Guarantee
Payment options include PayPal, T/T, Western Union, and cash (30% deposit with full payment before delivery). We prioritize prompt delivery while maintaining high quality standards and competitive pricing.
Comprehensive Quality Control
Each product undergoes individual inspection before packaging and shipping to ensure correct quantities, specifications, and optimal condition.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω /cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Manufacturing Facilities
Quality Certifications
Frequently Asked Questions
What is your minimum order quantity?
Our standard MOQ is 1000 pieces, but we accept smaller quantities for initial trial orders.
Can I request samples?
Yes, we provide existing samples free of charge. Custom designs require a nominal sample fee, which is refundable when orders reach specified quantities.
What is the sample lead time?
Existing samples ship within 1-2 days. Custom designs require 3-7 days, depending on design complexity and tooling requirements.
What is the production lead time?
Production for MOQ quantities typically takes 15-20 days.
What file formats do you accept for custom designs?
We accept JPG, AI, CDR, PDF, and other common formats. Our professional design team will create artwork for molds and printing screens as needed.
What are the freight charges?
We recommend express shipping for small quantities to minimize costs and delivery time. For larger orders, sea freight offers the most economical solution.
