Customized Conductive Silicone Buttons with Silk Screen Printing Circuit Membrane Switches
-
Highlight
Customized conductive silicone buttons
,Silk screen printing membrane switches
,Rubber membrane switch with warranty
-
MaterialSilicone
-
Voltage3V
-
Transmission Distance<50m
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Waterproof SealIP65
-
Production Capacity100,000PCS/Month
-
CertificationCE, ISO9001, RoHS
-
Minimum Order Quantity100
Customized Conductive Silicone Buttons with Silk Screen Printing Circuit Membrane Switches
Customized Conductive Silicone Buttons with Silk Screen Printing Circuit Membrane Switches
With advancing technology, silicone keypads have become essential components in the electronics industry. Silicone rubber offers an ideal combination of low cost and versatility, making it the preferred material for keypad applications. Silicone rubber compounds feature unique organic and inorganic properties that provide superior performance for electronic components requiring specialized characteristics.
Superior Material Properties
Compared to organic rubber, silicone rubber demonstrates significantly better performance in heat and cold resistance, weather durability, electrical insulation and conductivity, flex fatigue resistance, and tear strength. Key advantages include cost-effectiveness, versatility, safety compliance, and extreme environmental properties.
Functional Design & Mounting Options
As the primary functional component of membrane switches, silicone keypads facilitate electrical contact between users and devices. Combining smooth tactile feel with exceptional durability, these keypads withstand hundreds of thousands of actuations without failure. Contact systems range from gold pills actuating tactile metal domes to carbon pills—the most common contact type.
Two primary mounting methods are available for silicone rubber in membrane switch assemblies:
- Mounting rubber actuator with double-sided pressure-sensitive silicone rubber adhesive
- Pull-through method molded directly into the rubber component for interference fit assembly

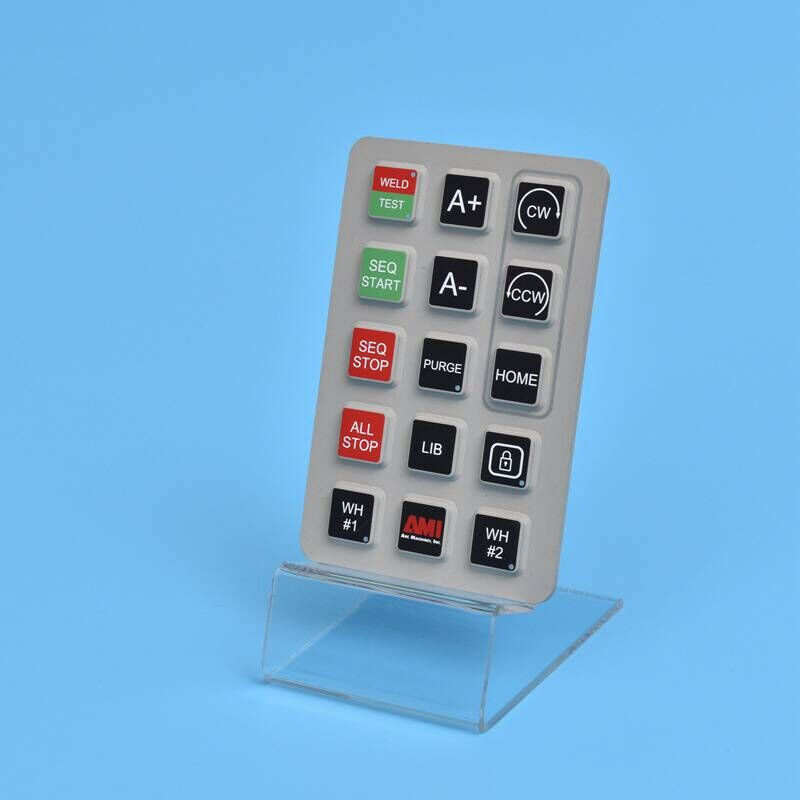

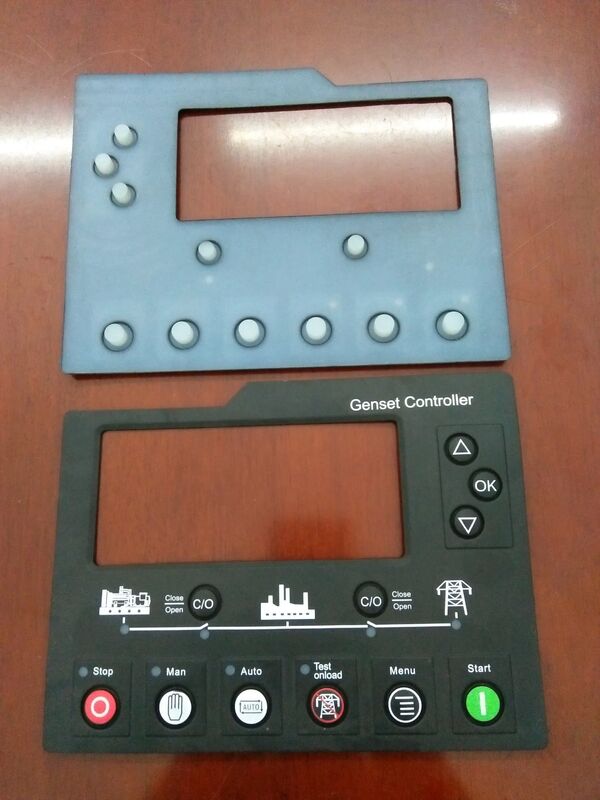

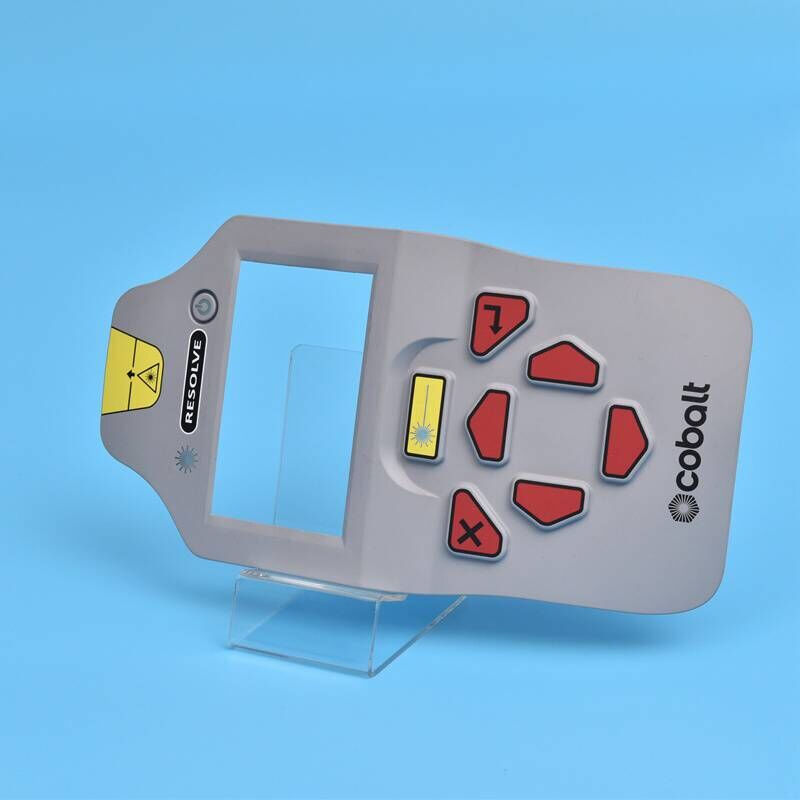

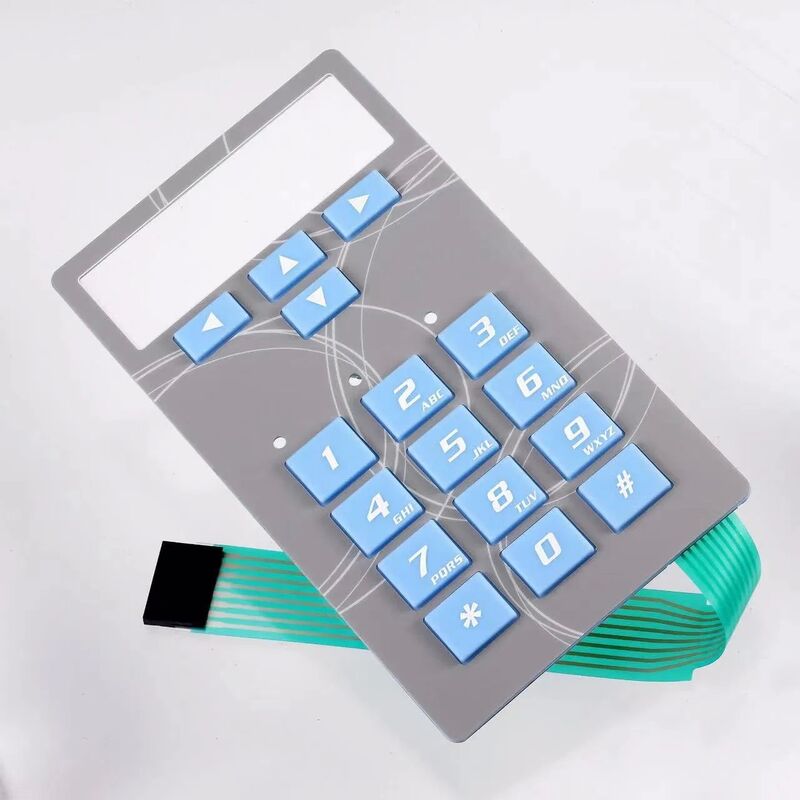

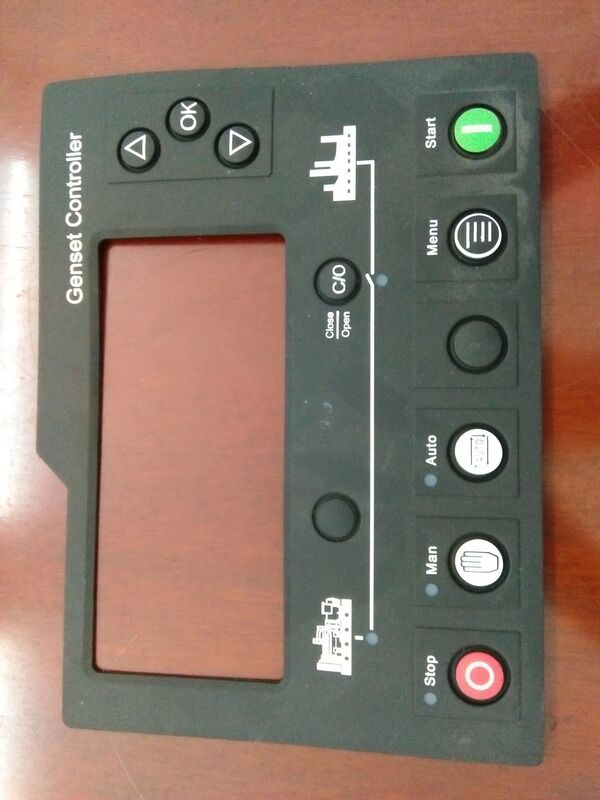

Product Gallery
Why Choose Our Conductive Silicone Buttons
High reliability with competitive pricing
100% functional testing before shipment with RoHS compliance
Three manufacturing facilities supporting mass production
Professional administrative and technical staff
Expert sales team providing comprehensive customer support
Available with metal dome or silicone keypad configurations
Waterproof seal design reaching IP65 standards
17 years experience serving renowned brands including SANYO, Philips, Siemens, and Mattel
OEM & ODM Services Available
We welcome custom designs and private labeling on existing models. Contact us to discuss your specific requirements.
100% Quality Guarantee
Payment options: PayPal, T/T, Western Union, cash (30% deposit with full payment before delivery). We ensure prompt delivery of high-quality products at reasonable prices with thorough quality checks before packaging and shipping.
Technical Specifications
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Manufacturing Facilities
Quality Certifications
Frequently Asked Questions
What is your minimum order quantity?
Our standard MOQ is 1000 pieces, but we accept smaller quantities for initial trial orders.
Can I request samples?
Yes, we provide existing samples free of charge. Custom designs require a nominal sample fee, which is refundable when orders reach specified quantities.
What is the sample lead time?
Existing samples: 1-2 days. Custom designs: 3-7 days, depending on requirements for new printing screens or tooling.
What is the production lead time?
15-20 days for minimum order quantities.
What file formats do you accept for custom designs?
We accept JPG, AI, CDR, PDF, and other common formats. Our professional design team will create artwork for molds and printing screens.
What are the shipping options and costs?
We recommend express shipping for small quantities to reduce costs and delivery time. For large orders, sea freight provides the most economical solution.
