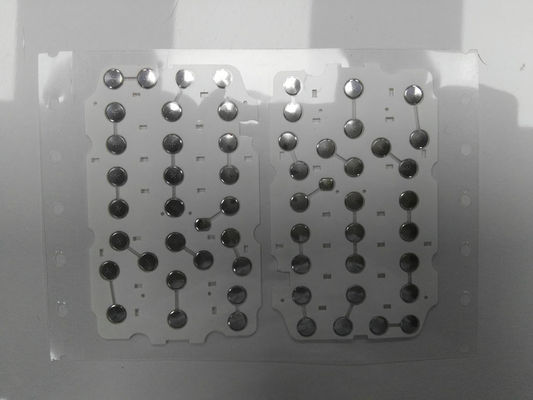

OEM / ODM Flexible Tactile Membrane Switch Dome Array With Silk Screen Printing

OEM / ODM Flexible Tactile Membrane Switch Dome Array With Silk Screen Printing

  • Highlight

    custom membrane switch

    ,

    membrane touch switch

  • Support
    Waterproof , Scratchproof
  • Circuit
    Flexible Cable Circuit And Pins
  • Sample Time
    3-6 Working Days
  • Key
    Metal Dome
  • Usage
    Control Switch
  • Type
    Flexible
  • Place of Origin
    China
  • Brand Name
    TKM MS
  • Certification
    ISO9001:2008, SGS,Rohs
  • Model Number
    HC041
  • Minimum Order Quantity
    100pcs
  • Price
    negotiation
  • Packaging Details
    Polybag per pcs,50per cartoon
  • Delivery Time
    15-20days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100000Pieces per month

OEM / ODM Flexible Tactile Membrane Switch Dome Array With Silk Screen Printing



OEM / ODM Flexible Tactile Membrane Switch Dome Array With Silk Screen Printing





Quick Detail:



Operating Temperature -40—70(C°) Operating Voltage ≤50(V)
Rated Current 0-30V DC Contact resistance 0.5-10( Ω)
Insulation Resistance ≤50(Ω) Key operation force 15-750g
Dome springback time ≤5(ms) Substrate voltage 1500VDC
Feature: Dust-proof , Waterproof Certificate:

SGS , Rohs





OEM / ODM Flexible Tactile Membrane Switch Dome Array With Silk Screen Printing 0



Performance indicators:


1. Electronic characteristics:


Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω --500Ω (According the trace length and materials to comfirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times


2. Mechanical Properties Actuation force:



Flat type 57-284G (2-10 Oz), tactile type 170-397g (6-14 Oz)
Switch stroke: Flat type 0.1-0.5mm, tactile type 0.6-1.5mm


3. Environmental parameters:


Operating Temperature: -40 oC- +80oC, Storage temperature: -40oC - +85oC
Humidity: 40oC, 90% -95%, 240 hours





Description & Competitive Advantage:



1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.

2. Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.

3. Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.

4. Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.

5. Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.

6. Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.

7. Customized specification is available and keys can make different shapes





Applications:



Products are widely used in communication, industrial control, household appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,

Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,

Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.





Customize Membrane Switch


FLEXKYS provides the service of customizing various membrane switch, such as intergrading components into complex, custom user-interface assemblies.We can mount
your switch panel to a rigidbacker, housing, casing, or to additional printed circuit board assemblies.
We will do what we can to help you.
