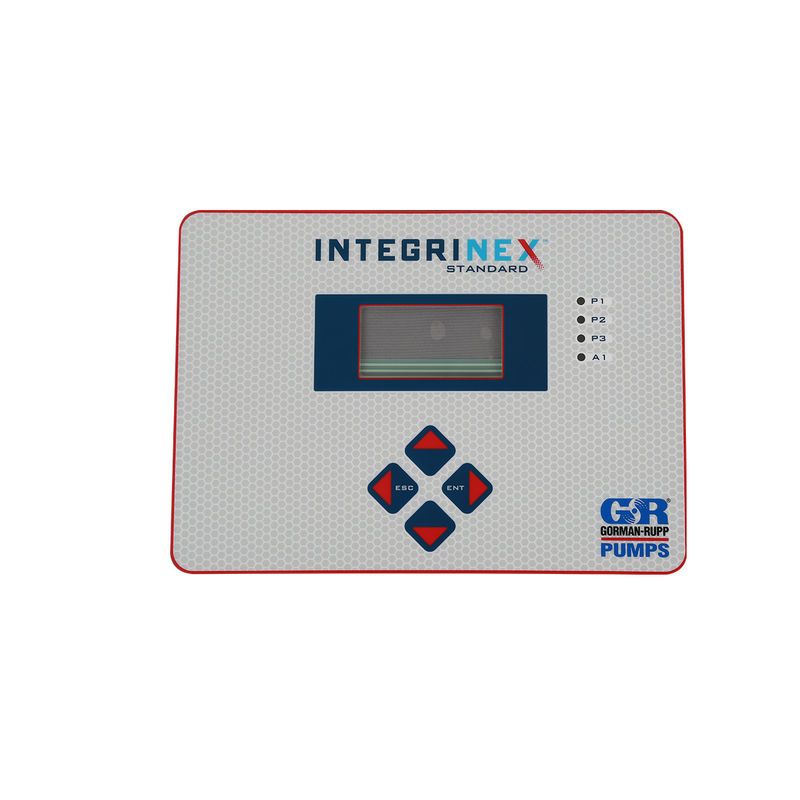

The Custom Tactile Metal Dome Membrane Switch With LED Light And Emboss
Specifications
| Material | PET |
| Adhesive | 3M9448, 3M9080, 3M467, 3M468 or no adhesive |
| Tail | with mylar or UV |
| Tail flexiblility | any angle within 180 degree |
| Thickness | above 0.7mm |
| Pressing lifespan | more than 800,000 times |
| Metal dome | Nicomatic, nickel plated, gold plated |
| Contact Bounce | 5ms |
| keys | embossed, rim embossed,or flat |
| Switch travel | Flat Type 0.05-0.3mm |
| LED windows: | clear or translucent with all colors |
Membrane switches with FPC circuit:
Nice appearance and good tightness
Material: Autotype PET, textured PC, Gloss PC with matte finish, PVC
Connector: Nicomatic, FCI, Molex, Zif connector,CJT
Customized designs are accepted
Description:
1. Cover film protection film (Cover Film)
Cover film protection film: surface insulation. The common thickness 1mil with 1/2mil.
Glue (adhesive): thickness according to customer requirements.
Adhesive buildup of foreign matter before pressing the shape from the paper: avoid; easy job.
2. Stiffener (PI Stiffener Film)
Stiffener: reinforcing the mechanical strength of the FPC, to facilitate the surface mounting job. Common thickness 3mil to 9mil.
Shape from the paper: to avoid foreign matter adhesive buildup Crimping before the.
3. EMI: electromagnetic shielding film, the protection circuit board line without interference from the outside world (a strong electromagnetic District or susceptible to interference zone).
Applications:
1. Disk drives
Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the 0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.
2. Computer and LCD screen
Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the picture, through the LCD screen
3. CD player
Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The huge CD to carry around
4. The mobile phone
Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of products, easy connection of the battery, microphone, and buttons and into one.
5. The latest applications
Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components of xe packaging board, etc
Performance indicators:
1. Electronic characteristics:
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω --500Ω (According the trace length and materials to comfirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical Properties Actuation force:
Flat type 57-284G (2-10 Oz), tactile type 170-397g (6-14 Oz)
Switch stroke: Flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters:
Operating Temperature: -40 oC- +80oC,
Storage temperature: -40oC - +85oC
Humidity: 40oC, 90% -95%, 240 hours
we manufacture complete line of membrane switches, our experienced
Design team are ready to work with you to design membrane switches to meet
Your unique needs of your project.
Our products are sold all over the world, you can rest assured.
