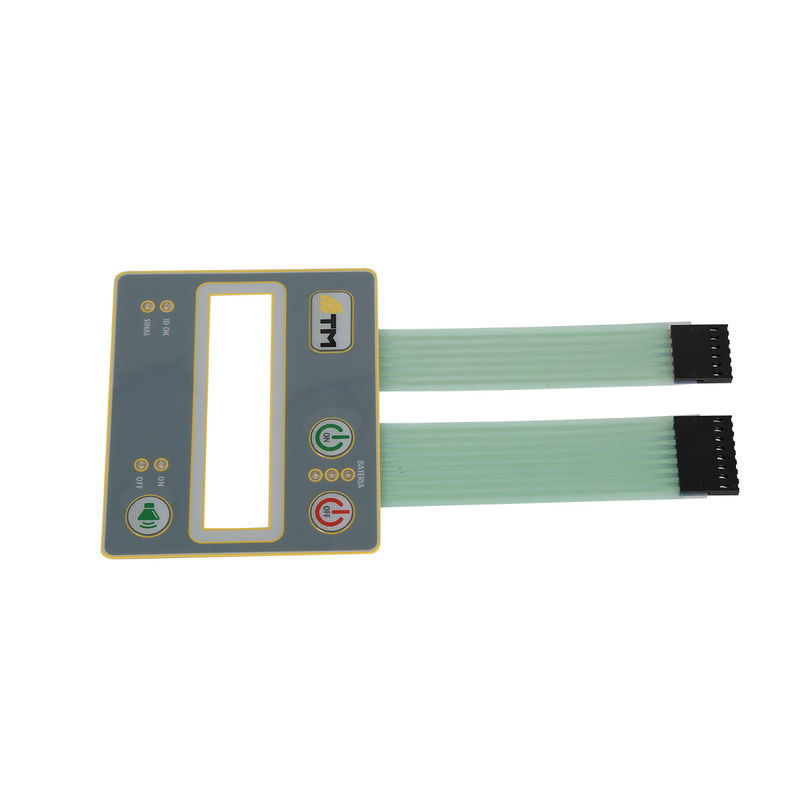

Embossed Tactile Push Button Membrane Switch Panel With Silk Screen Print
Membrane Switch Panel Performance Index:
|Circuit rating||35V (DC), 100mA, 1W|
|Contact resistance||10Ω~500Ω (According the trace length and materials)|
|Insulation resistance||> 100MΩ 250V DC|
|Contact bounce||≤ 5ms|
|Dielectric withstand||250VRms (50~60Hz 1min)|
|Life expectancy||flat type ≥ 5 million times, tactile type ≥ 1 million times|
|Actuation force||flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz)|
|Switch stroke||flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm|
|Humidity||40°C, 90% ~95%, 240 hours
1. high quality and low price
2. long durability and lifecycle
3. strong ability of Anti electrostatic interference performance
4. metal dome could provide good tactile
The keys of the graphic overlay are embossed, the metal dome is embedded in the circuit layer, and there is a retainer
covering the metal dome. The appearance of this kind of membrane switch is stereoscopic. When you press the keys,
there is a strong tactile feeling and the time of the keys snap-back is very short. There is no need for the operator to judge
whether the switch is turned on by the sound signal or indicator lights given by the machine.
1. The mobile phone
Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of products, easy connection of the battery, microphone, and buttons and into one.
2. Computer and LCD screen
Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the picture, through the LCD screen
3. CD player
Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The huge CD to carry around
4. Disk drives
Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the 0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.
5. The latest applications
Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components of xe packaging board, etc
1. Electronic characteristics:
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω --500Ω (According the trace length and materials to comfirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical Properties Actuation force:
Flat type 57-284G (2-10 Oz), tactile type 170-397g (6-14 Oz)
Switch stroke: Flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters:
Operating Temperature: -40 oC- +80oC, Storage temperature: -40oC - +85oC
Humidity: 40oC, 90% -95%, 240 hours
Considering some customers aren't familiar with the technology applied in membrane switch, our company is willing to provide the switch design service for you. You just need to give us basic information of your requests such as operating conditions. We will devote ourselves to recommending the most suitable and cost-effective intergrated solution for you ,
while taking function, performance, aesthetics,
budget and time into consideration. What's more, you will become a member
of our design team, what we are designing will be In accordance with your request.
There is no doubt that our team are combining our strengths, experiences, and knowledge to serve you.
