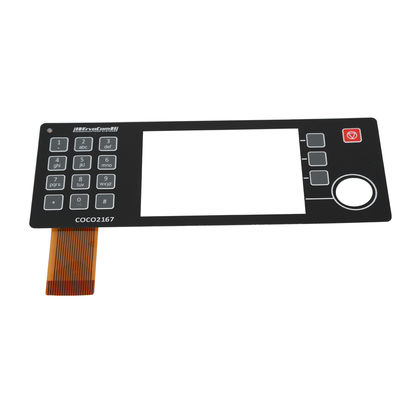

Flexible Design Custom Membrane Switch Keyboard With Texture Surface
|Operating Temperature||-40—70(C°)||Operating Voltage||≤50(V)|
|Rated Current||0-30V DC||Contact resistance||0.5-10( Ω)|
|Insulation Resistance||≤50(Ω)||Key operation force||15-750g|
|Dome springback time||≤5(ms)||Substrate voltage||1500VDC|
|Feature:||Dust-proof , Waterproof||Certificate:||
SGS , Rohs
1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.
3. Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.
4. Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5. Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6. Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes
Operating voltage: < 35V DC
Operating current: < 100mA
Contact resistance: < 100 Ohms
Open circuit resistance: > 10M Ohms
Operating temperature: -35 to 70 degrees Celsius
Storage temperature: -45 to 90 degrees Celsius
Life expectancy: 500,000 to 30,000,000 cycles
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
1. The mobile phone
Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of products, easy connection of the battery, microphone, and buttons and into one.
2. Computer and LCD screen
Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the picture, through the LCD screen
3. CD player
Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The huge CD to carry around
4. Disk drives
Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the 0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.
5. The latest applications
Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components of xe packaging board, etc
Customize Membrane Switch
FLEXKYS provides the service of customizing various membrane switch, such as intergrading components into complex, custom user-interface assemblies.We can mount
your switch panel to a rigidbacker, housing, casing, or to additional printed circuit board assemblies.
We will do what we can to help you.
Considering some customers aren't familiar with the technology applied in membrane switch, our company is willing to provide the switch design service for you. You just need to give us basic information of your requests such as operating conditions. We will devote ourselves to recommending the most suitable and cost-effective intergrated solution for you ,
while taking function, performance, aesthetics,
budget and time into consideration. What's more, you will become a member
of our design team, what we are designing will be In accordance with your request.
There is no doubt that our team are combining our strengths, experiences, and knowledge to serve you.
