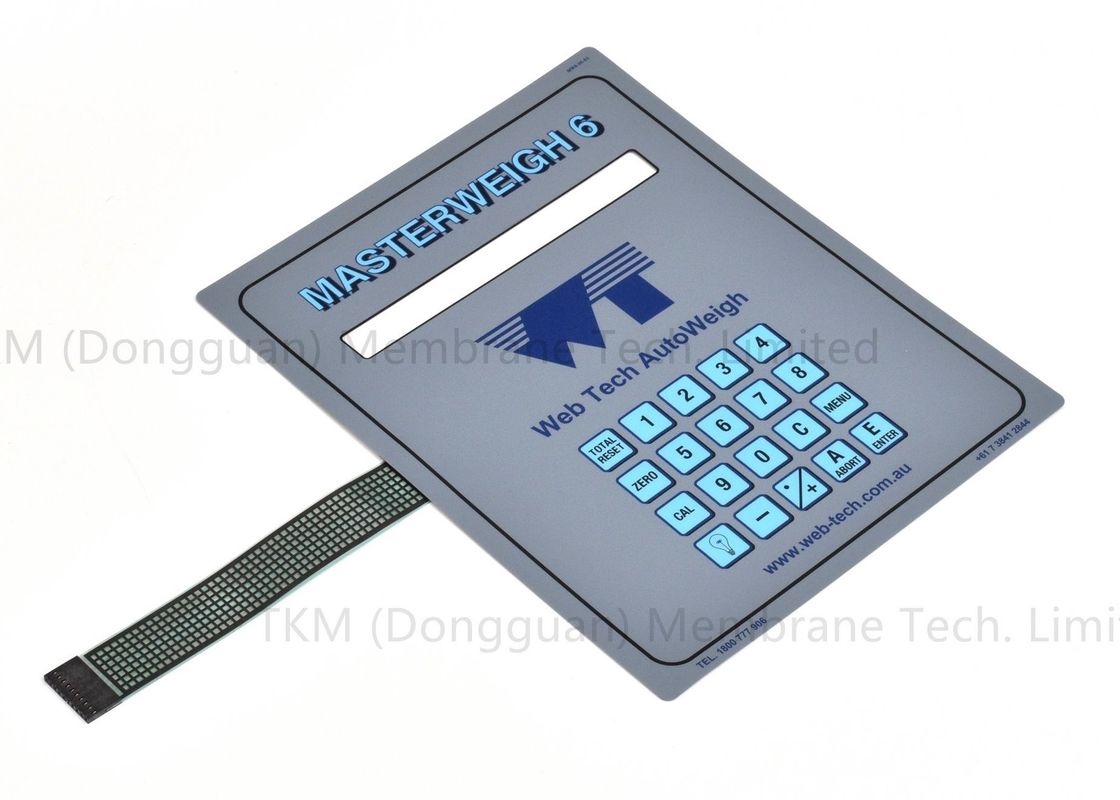

50VDC 100mA Tactile Membrane Control Panel With Carbon Shielding Grid Layer

Large Image : 50VDC 100mA Tactile Membrane Control Panel With Carbon Shielding Grid Layer

Product Details:

Place of Origin:	China
Brand Name:	TKM
Certification:	ISO9001
Model Number:	HC109

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Packed 10pcs per PE bag,Carton packing
Delivery Time:	18-22 workdays
Payment Terms:	T/T
Supply Ability:	100000pieces/month

Contact Now

Detailed Product Description

Application:

Auto Weight

ESD:

Anti-static

Embossed Shape:

Pillow Emboss

Overlay:

With A Clear Display Window

High Light:

50VDC Membrane Control Panel

100mA Membrane Control Panel

Carbon Shielding Tactile Membrane Switch

Good Tactile Membrane Control Switch With Print Carbon Shielding Grid Layer

MEMBRANE TACTILE TOUCH TECHNOLOGY
With the ClickTouch technology, we bring together an unequaled aesthetic appeal, great tactile sensation, durability, and reliability to provide a custom membrane switch at its finest.

Often described as amazingly simple and incredibly functional, this technology is distinguished by its simple construction. The combination of a polyester overlay with our pillow embossed surface enables extended key travel and a contact bounce that is considerably better than the industry standard. The long key travel provides an improved tactile feedback resulting in an explicit interaction between the user and the interface.

Membrane Tactile Touch retains essentially the same organic performance as the standard mechanical push button but demonstrates the added benefits of being dust and water tight as well as chemically resistant. Circuit layers are printed on polyester substrates with special silver, carbon and insulation ink, with additional protection against oxidation provided by overprinting with carbon or ‘Chemfight’ (anisotropic conductive ink).

Key Benefits:

High tactile feedback with precise click action
Long lasting: in excess of 5 million actuations
Activation force variable from hard to soft
A wide range of key shapes & sizes are available
Easy integration of backlighting (both EL, light guide film and fiber optic lamp)
Multiple shielding possibilities
Excellent for vibration applications
Cost-effective
Stable operation in temperatures from -20°C to +70°C
Low contact bounce of < 10ms (depends on key design)

The main technical parameters of membrane switch:(Electrical Properties)

1	Operating voltage:	≤50 VDC
2	Working current:	≤100mA
3	Contact resistance:	0.5~10Ω
4	Insulation resistance:	≥100M Ω(100VDC)
5	Substrate voltage:	2k VDC
6	Loop resistance:	depends on product design
