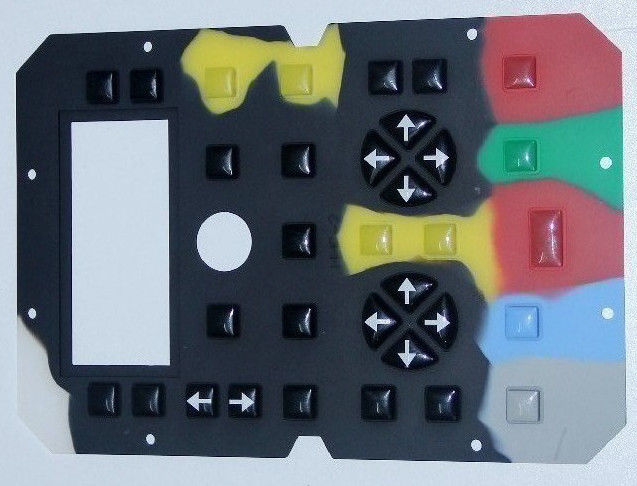

Multi Button Flexible Rubber Membrane Switch Keypad For Control Panel

Multi Button Flexible Rubber Membrane Switch Keypad For Control Panel

  • Highlight

    membrane switch panel

    ,

    membrane key switches

    ,

    Multi Button Rubber Membrane Switch

  • Place of Origin
    China
  • Brand Name
    TKM MS
  • Certification
    ISO9001:2008, SGS,Rohs
  • Model Number
    TKM-MS--006
  • Minimum Order Quantity
    100pcs
  • Price
    negotiation
  • Packaging Details
    Polybag per pcs,50per cartoon
  • Delivery Time
    15-20days
  • Payment Terms
    T/T or L/C
  • Supply Ability
    100000Pieces per month

Multi Button Flexible Rubber Membrane Switch Keypad For Control Panel



Multi buttons Flexible Rubber Membrane Switch with Quakeproof For GPS





Quick Detail:



Name

Silicone MS

Life time

>1 Million times



Color

Transparent,red,yellow,

green,blue.Pink.,purple

Feature

3M467 adhesive & PET/PC

Insulation resistance:

<100MΩ,250V DC

Certificate

RoHS







Description:



Silicone Telephone Keypad are the most popular user interface for a variety of reasons. They offer design flexibility at a low per unit cost. Some of the design options include:

Integrate Multiple Silicone Colors

Choose From a Variety of Materials

Print Multiple Colors for Text and Legends

Laser Etched Legends for Back Lighting

Coating Options for Increased Durability

Chemical and Environmental Resistance

Liquid Injection Molded Products

Plastic Key Caps

Metal Keypads - Durable Construction, Custom & Stock Designs

Carbon, Gold, and Copper Contacts





Applications:



1. The backlight applications: all kinds of electric computers, laptops, handheld game consoles, telephones, electronic organizers, electronic dictionaries, audio equipment, control panels, microwave oven control panel, fax machines, copiers, watches ...... etc.

2. Automotive: Car instrument panel, warning lights, vehicle exteriors, decorative door bar, third brake light ...... etc.

3. Architecture and interior applications: elevator floor marking, labeling instructions escape, decorative wall lights, night landscape decorative building, interior decorating

4. Toys, gifts: all kinds of toys, light source, light frame, EL photo, Valentine's cards, badges and other consumer product applications

5. Public places of business equipment, machinery: bus stop, public phone booths, coin-drinks machine on the bus route licensing ...... etc.





Specifications



Contact resistance

10 to 500Ω (varied from the trace length and material)

Tactile type life expectancy

1,000,000 closures or more

     Maximum circuit rating

35V DC, 100mA, 1W

Operating temperature

-40 to +80C

Storage temperature

-40 to +85C

Tactile type actuation force

150 to 400g (6 to 14oz)

Contact bounce

5ms or less

Dielectric withstand

250Vrms (50 to 60Hz/minute)

Tactile type switch stroke

0.6 to 1.5mm

Insulation resistance

100MΩ at 100V

Surface hardness

               3H or more

Operating humidity

         90 to 95%RH (at 40C ) for 240 hours





 Competitive Advantage



Silicone Rubber Molding and Keypads



QUALITY:  High quality equipment and materials provide durability and consistency in your product. HHC is a family owned and operated business and has many years experience in manufacturing Silicone Rubber Keypad, Silicone Telephone Keypad etc.



PRICING : HHC offers world class service and pricing.  And we have developed tooling methods that can save the customer thousands of RMB off standard prices!



FREE DESIGN: Our rubber tooling cost includes 3D modeling from a 2D file at no additional cost. We can also reengineer a keypad from a customer provided sample at no additional cost. Our engineering staff has designed kinds of silicone keypad and can offer free design assistance.



PROTOTYPES: Our standard lead times are among the best in the industry. However, if you need something faster RSP has developed a process for manufacturing short run production quality silicone rubber keypad in 7-10 days. Keypads can be done in multiple silicone colors with multiple print colors for no additional charge.
