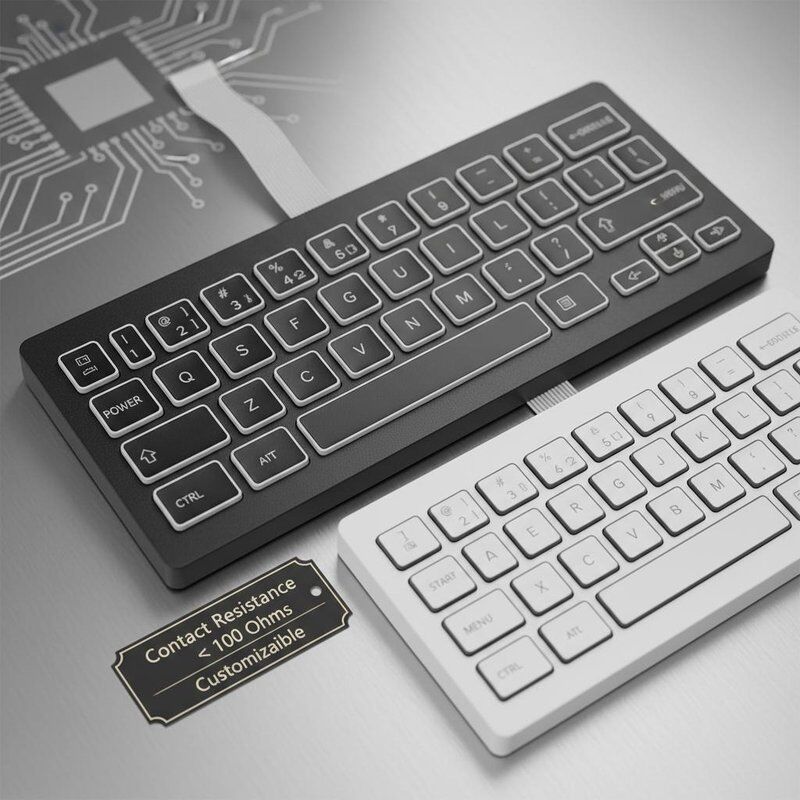

Silkscreen Printing PCB Membrane Switch Black Keyboard Yes White Optional Contact Resistance Less Than 100 Ohms Durable Customizable
-
Highlight
silkscreen printing PCB membrane switch
,customizable black membrane keyboard
,low resistance durable membrane switch
-
Current Contact2-24V
-
PortShenzhen
-
OriginChina
-
PrintingSilkscreen Printing
-
Black KeyboardYes (white Optional)
-
Top EmbossingYES/NO
-
Current≤100mA/Other
-
Contact Resistance≤100Ω
-
Brand NameTKM
-
CertificationISO9001
Silkscreen Printing PCB Membrane Switch Black Keyboard Yes White Optional Contact Resistance Less Than 100 Ohms Durable Customizable
PCB Membrane Switch with Silkscreen Printing
This advanced PCB Membrane Switch delivers reliable performance for agricultural machinery and other demanding applications. Combining electronic PCB switching with integrated membrane circuitry, it offers a durable, customizable interface solution with clear silkscreen printing and optional tactile feedback.
Key Features
- Product Type: Printed Circuit Board Membrane Keyboard
- Color Options: Black (white optional)
- Circuit Rating: 35V DC, 100mA, 1W
- Current: ≤100mA
- Contact Voltage: 2-24V
- Printing Method: Silkscreen Printing
- Durability: IP67 rated for water and dust resistance
- Contact Resistance: ≤100Ω
Technical Specifications
| Parameter | Specification |
|---|---|
| Key Life | ≥1 Million Actuations |
| Keyboard Color | Black (White Optional) |
| Current Rating | ≤100mA |
| Contact Voltage | 2-24V |
| Circuit Rating | 35V DC, 100mA, 1W |
| Top Embossing | Optional (YES/NO) |
| Waterproof Rating | IP67 |
| Origin | China (Shenzhen Port) |
Primary Applications
Specifically engineered for agricultural machinery where durability and reliability are critical. The waterproof IP67 rating and robust construction withstand harsh environmental conditions including dust, moisture, and temperature variations. Ideal for tractors, harvesters, irrigation systems, and other farm equipment requiring dependable control interfaces.
Customization Options
Our ISO9001 certified facility offers comprehensive customization including:
- Top embossing for enhanced tactile feedback
- Connector options: ZIF, Female Connector, Male Connector
- Custom waterproof keypad configurations
- Color selection (black standard, white optional)
- Pocket design with inserts
Technical Support & Services
Our dedicated technical team provides comprehensive support throughout the product lifecycle, including design integration assistance, prototype development, testing, and quality assurance. We offer detailed documentation, usage guidelines, and after-sales support to ensure optimal performance and longevity of your membrane switch products.
