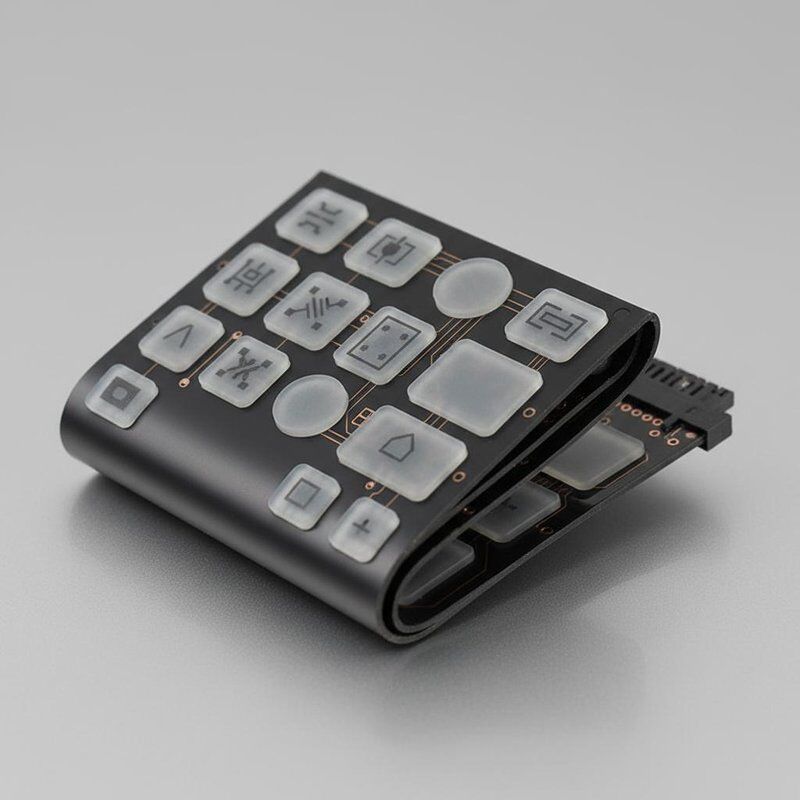

Black Keyboard Integrated Membrane Circuit Switch Offering Pocket Design with Inserts Applicable to Portable Devices and Security Control Systems
-
Highlight
black PCB membrane switch
,portable device membrane keyboard
,security control system membrane circuit
-
Current Contact2-24V
-
OriginChina
-
Circuit Rating35V (DC), 100mA, 1W
-
Top EmbossingYES/NO
-
PortShenzhen
-
Contact Resistance≤100Ω
-
Pocket DesignWith Inserts
-
Key Life≥1 Million Times
-
Brand NameTKM
-
CertificationISO9001
Black Keyboard Integrated Membrane Circuit Switch Offering Pocket Design with Inserts Applicable to Portable Devices and Security Control Systems
PCB Membrane Switch with Integrated Circuit Technology
Advanced PCB membrane switch featuring integrated membrane circuit technology for reliable performance in demanding electronic applications. Manufactured in Shenzhen, China with ISO9001 certification, this versatile input device combines cutting-edge technology with high-quality materials.
Key Features
- Integrated Membrane Circuit Switch technology
- Custom waterproof keypad with IP67 rating
- Current rating: ≤100mA (other options available)
- Contact resistance: ≤100Ω
- Top embossing options: Yes/No
- Multiple connector types: ZIF, female, male connectors
- Key life: ≥1 million cycles
- Silkscreen printing for durable markings
Technical Specifications
| Origin | China |
| Port of Shipment | Shenzhen |
| Circuit Rating | 35V DC, 100mA, 1W |
| Current Contact | 2-24V |
| Protection Rating | IP67 (dust and water resistant) |
| Key Life | ≥1 Million Times |
| Keyboard Color | Black (white optional) |
| Printing Method | Silkscreen Printing |
Applications
Ideal for agricultural machinery, consumer electronics, medical devices, industrial control panels, automotive systems, and security control systems. Perfect for portable devices and environments requiring waterproof, dust-proof operation.
Customization Options
Fully customizable PCB membrane keyboard solutions with silkscreen printing, top embossing options, and custom waterproof keypad configurations. Available with various connector tail types and electrical specifications to meet specific application requirements.
Technical Support & Services
Comprehensive technical support including design integration guidance, installation procedures, troubleshooting, and maintenance services. Detailed documentation and quality assurance with rigorous testing processes.
