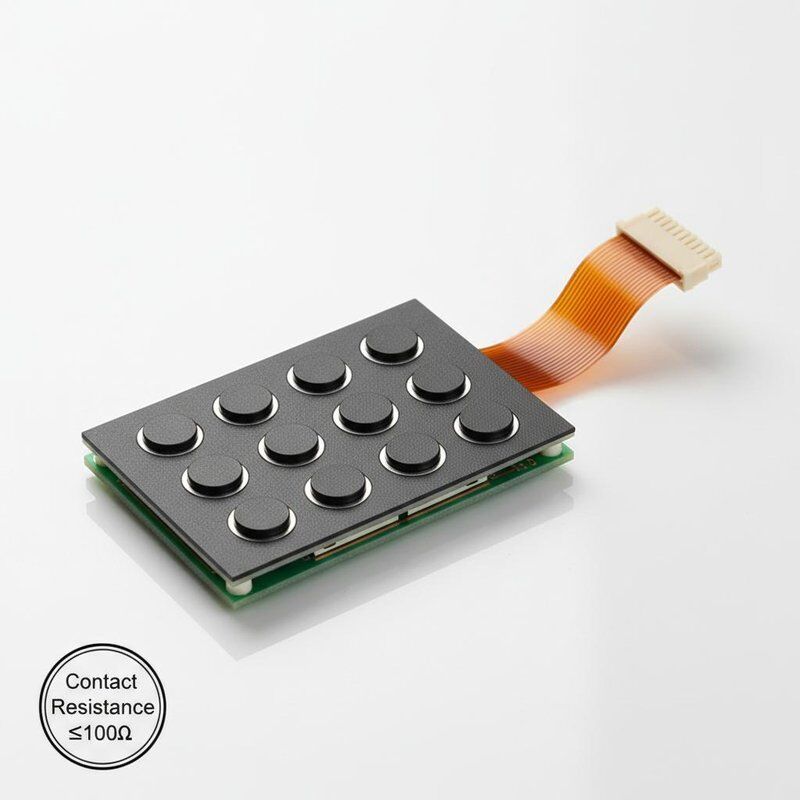

Silkscreen Printing PCB Membrane Switch Offering Contact Resistance ≤100Ω Female Connector Tail Ideal for Security System Interfaces
-
Highlight
Silkscreen printing PCB membrane switch
,PCB membrane switch with female connector
,Low contact resistance membrane switch
-
Connector TailZIF, Female Connector, Male Connector
-
Current Contact2-24V
-
Key Life≥1 Million Times
-
OriginChina
-
Top EmbossingYES/NO
-
Current≤100mA/Other
-
Pocket DesignWith Inserts
-
PortShenzhen
-
Brand NameTKM
-
CertificationISO9001
Silkscreen Printing PCB Membrane Switch Offering Contact Resistance ≤100Ω Female Connector Tail Ideal for Security System Interfaces
PCB Membrane Switch for Industrial Control Interfaces
This durable PCB Membrane Switch is engineered for demanding environments, featuring reliable performance in harsh conditions. The optional top embossing provides enhanced tactile feedback, allowing confident operation without visual confirmation. Multiple connector options including ZIF, female, and male connectors ensure seamless system integration.
Product Features
- Product Name: PCB Membrane Switch
- Application: Agricultural Machinery & Security Systems
- Contact Resistance: ≤100Ω
- Printing Method: Silkscreen Printing
- Key Life: ≥1 Million Cycles
- Durability: IP67 Rated for Water and Dust Resistance
- Origin: China
- High Reliability Electronic PCB Switch Design
Technical Specifications
| Contact Resistance | ≤100Ω |
| Keyboard Color | Black (White Optional) |
| Connector Tail | ZIF, Female Connector, Male Connector |
| Current Contact | 2-24V |
| Key Life | ≥1 Million Times |
| Origin | China |
| Printing | Silkscreen Printing |
| Top Embossing | YES/NO (Customizable) |
| Application | Agricultural Machinery |
This custom waterproof keypad features an integrated membrane circuit switch design ideal for agricultural machines and applications requiring exceptional durability and reliability.
Applications
Designed specifically for agricultural machinery and security system interfaces, this PCB Membrane Switch excels in demanding environments. The IP67 rating ensures complete protection against dust ingress and water immersion, making it suitable for tractors, harvesters, irrigation systems, and security control panels where reliable input mechanisms are essential.
Customization Options
TKM offers premium PCB Membrane Switch solutions with extensive customization capabilities. Our ISO9001-certified manufacturing ensures high-quality silkscreen printing, color options (black or white keyboard), and tailored specifications to meet your specific application requirements for custom waterproof keypads and electronic PCB switches.
Support & Services
Our comprehensive technical support includes troubleshooting, installation guidance, and maintenance recommendations. For service and repairs, contact authorized service centers to maintain product integrity. Customization and upgrade services are available with detailed specification requirements. Regular cleaning with a soft, damp cloth is recommended to preserve switch functionality.
ISO9001 Certified Manufacturing | Professional Technical Support Available
