Pocket Design With Inserts PCB Membrane Switch Silkscreen Printing Key Life Greater Than Or Equal To 1 Million Times Durable
-
Highlight
PCB membrane switch with silkscreen printing
,Durable PCB membrane switch 1 million presses
,Pocket design PCB membrane switch inserts
-
Connector TailZIF, Female Connector, Male Connector
-
Key Life≥1 Million Times
-
Contact Resistance≤100Ω
-
Black KeyboardYes (white Optional)
-
Current Contact2-24V
-
Current≤100mA/Other
-
Circuit Rating35V (DC), 100mA, 1W
-
Pocket DesignWith Inserts
-
Brand NameTKM
-
CertificationISO9001

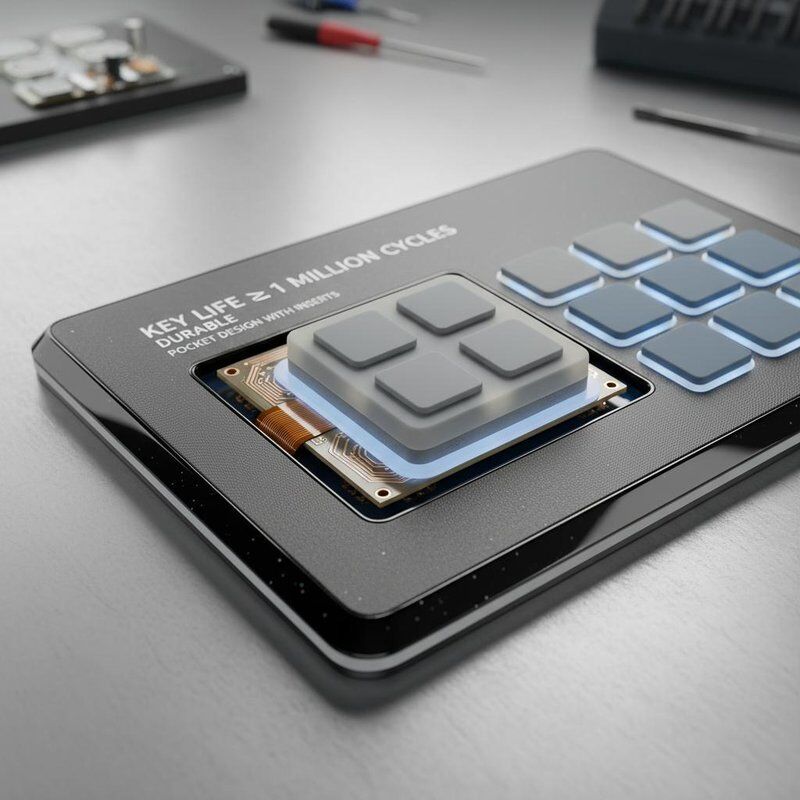

Pocket Design With Inserts PCB Membrane Switch Silkscreen Printing Key Life Greater Than Or Equal To 1 Million Times Durable
PCB Membrane Switch with Inserts
The Printed Circuit Board Membrane Keyboard is a durable and versatile input device manufactured with precision in China. Designed for demanding industrial and commercial applications, it combines reliability with advanced features in a compact, user-friendly design.
Key Features
- Product Name: PCB Membrane Switch
- Type: Integrated Membrane Circuit Switch
- Current Rating: ≤100mA (other options available)
- Current Contact Voltage: 2-24V
- Pocket Design: With Inserts for enhanced durability
- Key Life: ≥1 Million cycles for long-lasting performance
- Contact Resistance: ≤100Ω for consistent conductivity
- IP67 Rating: Protection against dust and water ingress
- Printing: Silkscreen Printing for durable labeling
- Application: Suitable for Agricultural Machines and industrial equipment
Technical Parameters
| Parameter | Specification |
|---|---|
| Connector Tail | ZIF, Female Connector, Male Connector |
| Current | ≤100mA / Other options |
| Keyboard Color | Black (white optional) |
| Printing | Silkscreen Printing |
| Contact Resistance | ≤100Ω |
| Pocket Design | With Inserts |
| Circuit Rating | 35V (DC), 100mA, 1W |
| Key Life | ≥1 Million Times |
| Current Contact | 2-24V |
| Application | Agricultural Machine |
Applications
The TKM PCB Membrane Switch is ideal for demanding environments requiring precision and durability. Its IP67 waterproof rating makes it suitable for outdoor control panels, medical equipment, industrial machinery, automotive interfaces, and consumer electronics where protection against dust and water is essential.
Customization Services
TKM offers professional customization services for PCB Membrane Switches to meet diverse application needs. We provide custom waterproof keypads, various connector tail options (ZIF, Female, Male), precision silkscreen printing, and design flexibility for agricultural machines and industrial applications. All products are manufactured under ISO9001 certification for consistent quality.
Technical Support & Services
Our comprehensive technical support includes installation guidance, troubleshooting, maintenance tips, and design consultation. We provide detailed information on electrical characteristics, compatibility, and customization options to ensure optimal performance and longevity of your PCB Membrane Switch products.
