Highlight
flexible membrane switch keyboard
,FPC circuit board keyboard
,printed circuit membrane switch
-
Model NO.HC-FPC-009
-
Combination ModeAdhesive Flexible Plate
-
Conductive AdhesiveConductive Silver Paste
-
Flame RetardantHB
-
Processing TechnologyElectrolytic Foil
-
Base MaterialCopper
-
Insulation MaterialsOrganic Resin
-
Size289.00mm * 216.00mm
-
Key Count136 Keys
-
Key TypeMetal Dome And Embossing
-
Connector Type65pin (Zif)
-
Overlay Colors11 Colors
-
LED Count12PCS
-
Wire Resistance≤ 1 Ohm/cm
-
Current Rating25-100mA, 0-30V DC
-
Minimum Order Quantity100
-
Price0.6

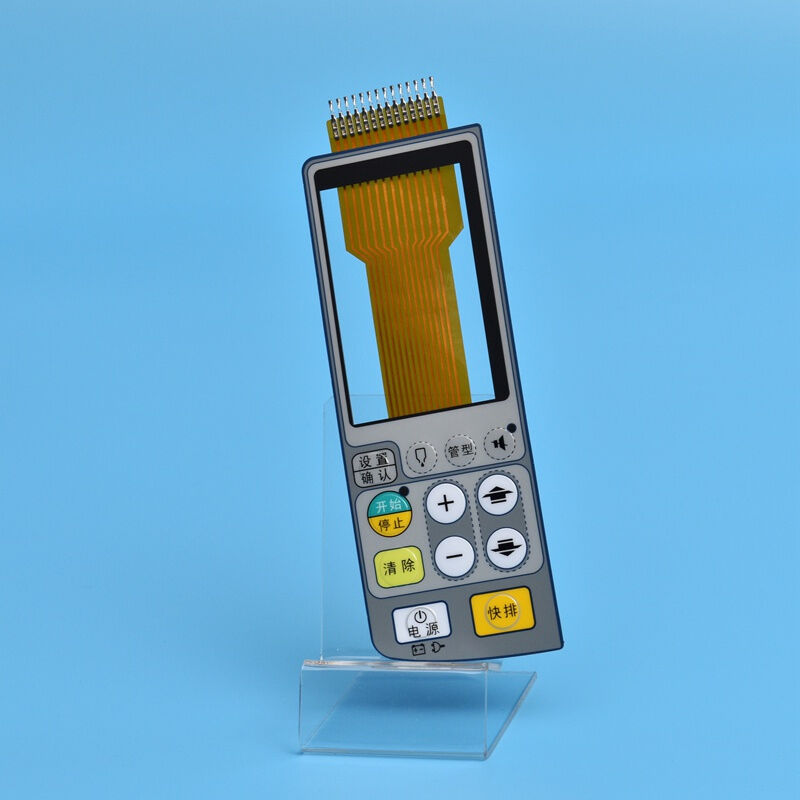

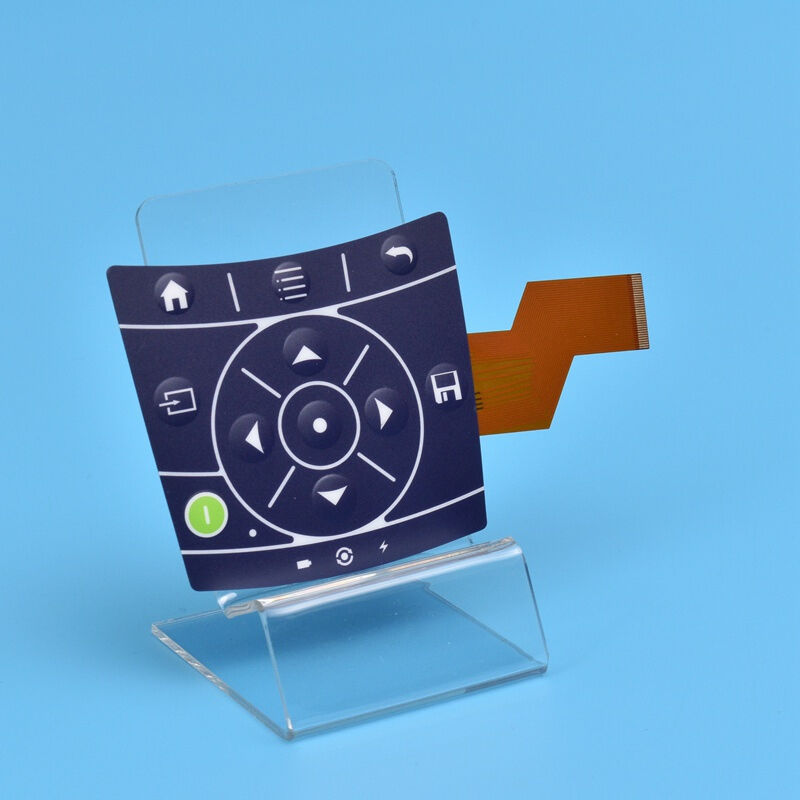

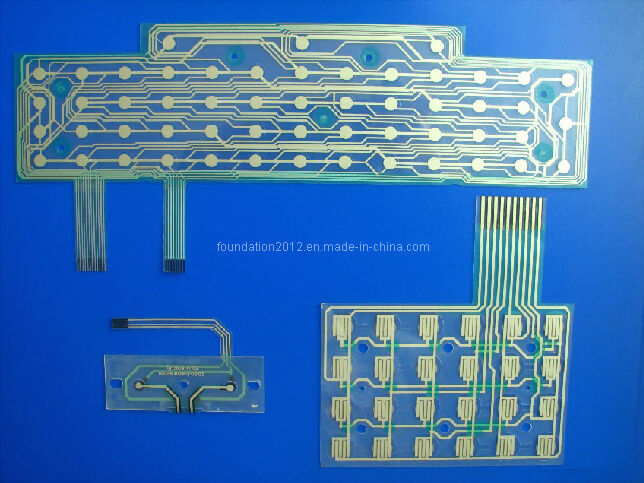

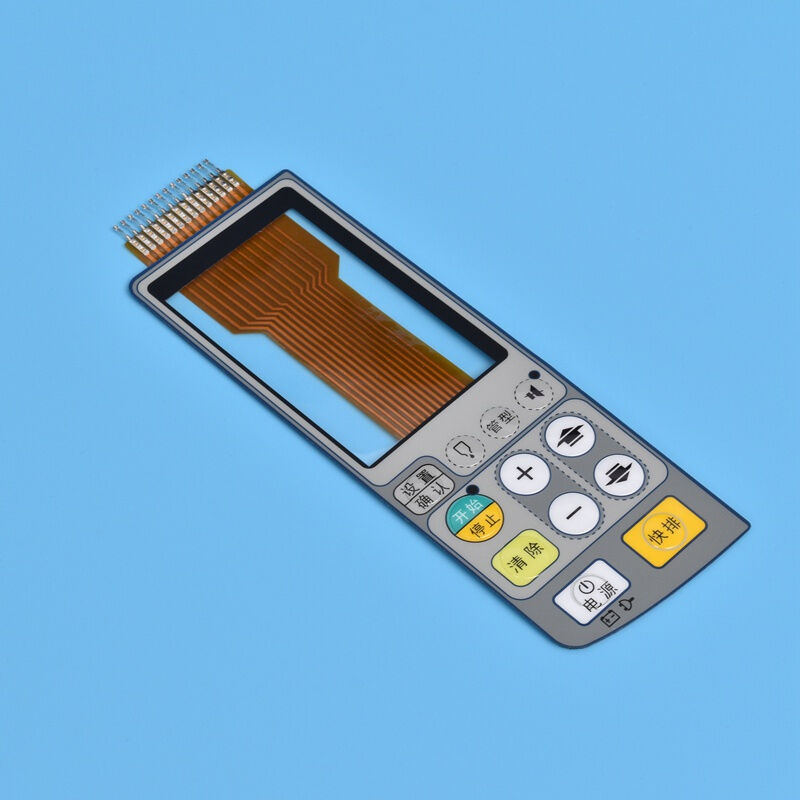

Keyboard Flexible Printed Printing FPC Circuit Board
Keyboard Flexible Printed Circuit (FPC) Board
We are a professional manufacturing company with comprehensive production systems and stable technical teams. We provide complete one-stop service solutions for flexible printed circuit boards.
Layer Structure
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (customizable as requested)
Production Capabilities
- Screen Print Department
- IR Tunnel
- Thickness Tester
- IR Oven
- Laser Cutting Machine
- Punching Department
- Emboss Key Section
- Assemble
- Electric Testing
- OQC Department
- Virtual Aspect Testing
- Punch Machine Department
- PU Coating Section
Technical Specifications
| Parameter | Specification |
|---|---|
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Times |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C ≤ 98%RH |
| Basic Material Pressurization | 1500V DC |
Please contact us for more detailed information and technical specifications. Let's discuss your specific requirements!
