Highlight
Flexible Membrane Switch with FPC
,High Quality Membrane Switch Circuit
,FPC Circuit Membrane Switch
-
MaterialEL Panel
-
Contact TypeType A Contact
-
Number Of SwitchMulti Control Switch
-
Detection MethodRetro-reflective Mode
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Waterproof RatingIP65
-
CertificationISO9001
-
Minimum Order Quantity100
-
Price0.3
Membrane Switch with High Quality FPC Circuit
Membrane Switch with High Quality FPC Circuit
High reliability flexible membrane control switch with FPC flexible circuit technology, designed for demanding industrial applications.
Key Features
- Custom made to your specifications
- Available in any size and shape
- Energy efficient design with low power consumption
- Durable construction withstands millions of cycles
Industry Applications
3C Electronics
Automobile Industry
Decoration Light Projects
Artwork and Gifts
Commercial Usage
Public Facilities
Both OEM and ODM orders are welcome with full customization support.
Why Choose Our Membrane Switches
- High reliability with competitive pricing
- 100% functional testing before shipment with RoHS compliance
- Three factories supporting mass production capabilities
- Professional technical and administrative staff
- Expert sales team providing comprehensive customer service
- Available with metal dome or silicone keypad options
- Waterproof seal design reaching IP65 standards
- 17 years of experience working with renowned brands including SANYO, Philips, Siemens, and Mattel
Technical Specifications
| Insulation Resistance | <100MΩ, 250V DC |
| Contact Resistance | <1Ω /cm |
| Operating Voltage | ≤ 50VDC |
| Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles |
| Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms |
| Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees |
| Switch Travel | Flat Type: 0.05-0.3mm | Tactile Type: 0.3-1.5mm |

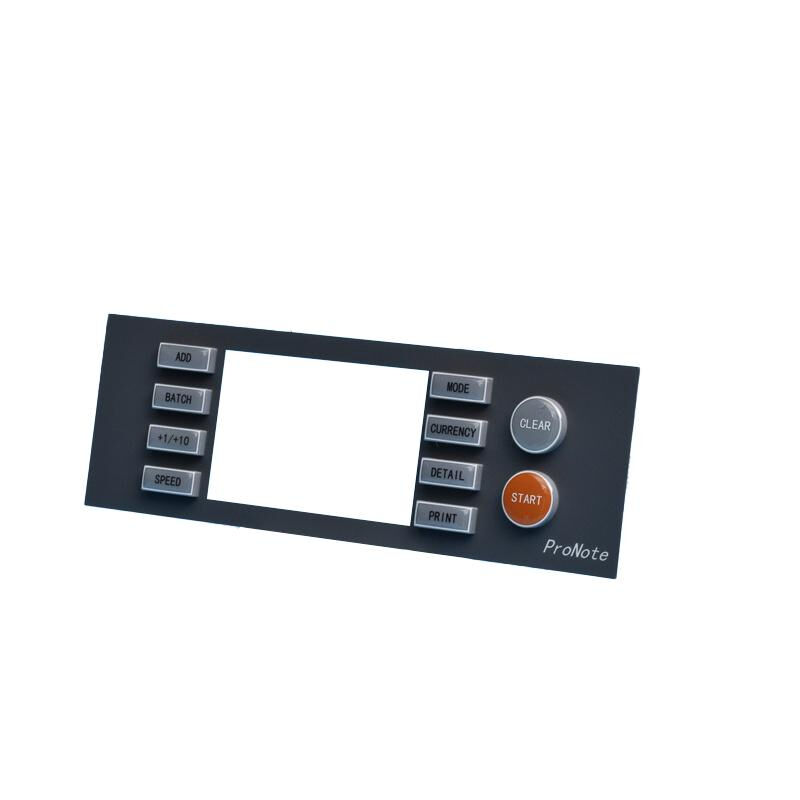

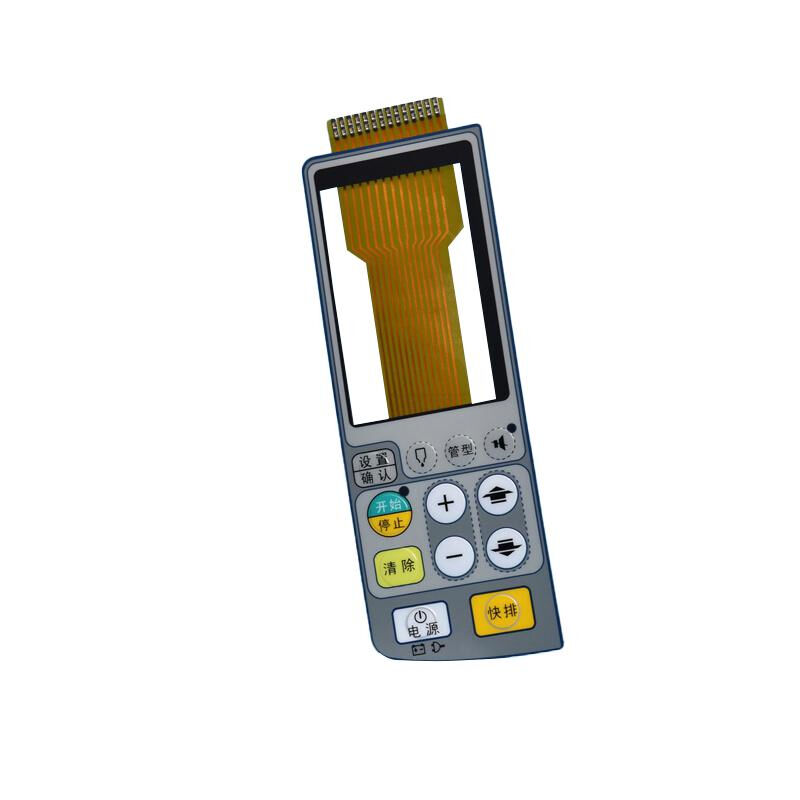

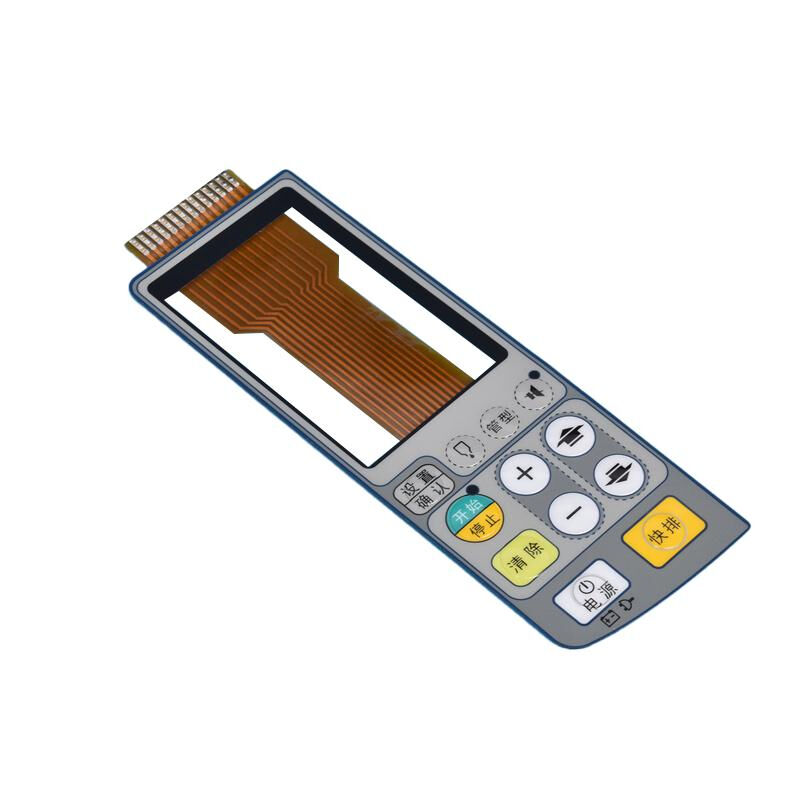

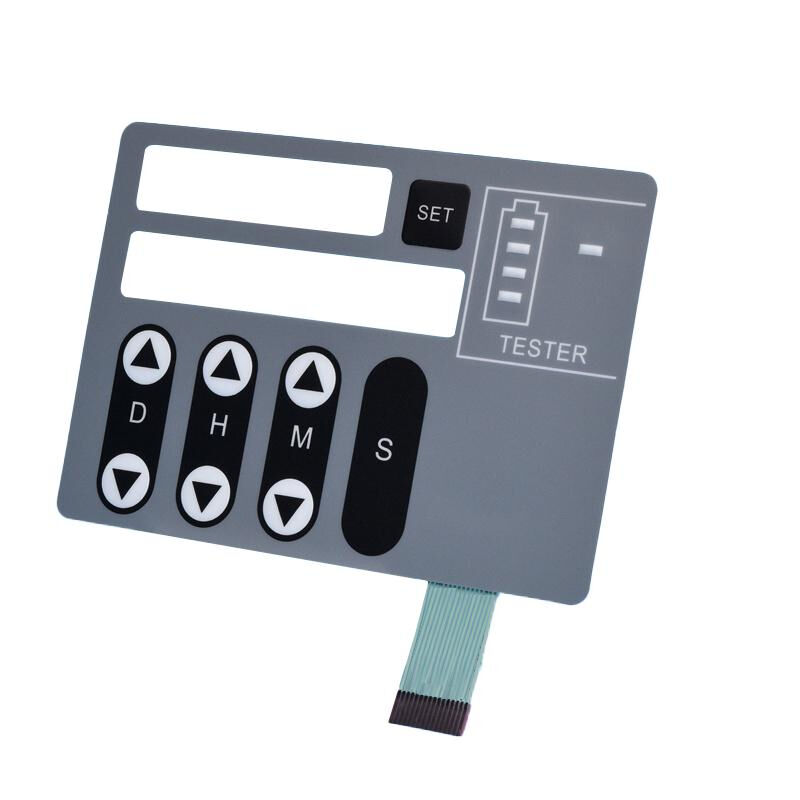

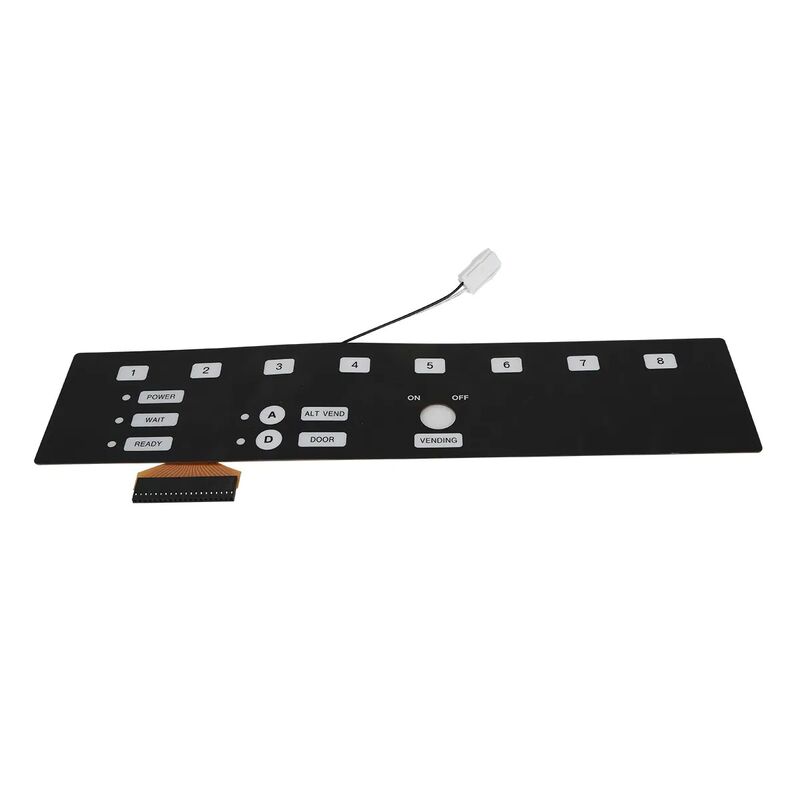

Product Gallery
