Big Size Multilayer Flexible Printed Circuit Magnetic Dart Boards
-
Highlight
big size magnetic dart board
,multilayer flexible printed circuit dartboard
,flexible membrane switch dart board
-
Model NO.TKM-MS-0541
-
Combination ModeAdhesive Flexible Plate
-
Conductive AdhesiveConductive Silver Paste
-
Flame RetardantV2
-
Processing TechnologyElectrolytic Foil
-
Base MaterialCopper
-
Insulation MaterialsMetal Composite Materials
-
Life Time>1 Million Times
-
Wire Resistance≤ 1 Ohm/cm
-
Current Rating25-100mA, 0-30V DC
-
Work Voltage≤ 50V DC
-
Insulation Voltage≤ 100M Ohm 250V DC
-
Work Temperature-40 Centigrade-70 Centigrade
-
Work Humidity40 Centigrade-≤ 98%RH
-
Basic Material Pressurization1500V DC
-
Minimum Order Quantity100
Big Size Multilayer Flexible Printed Circuit Magnetic Dart Boards
Big Size Multilayer Flexible Printed Circuit Magnetic Dart Boards

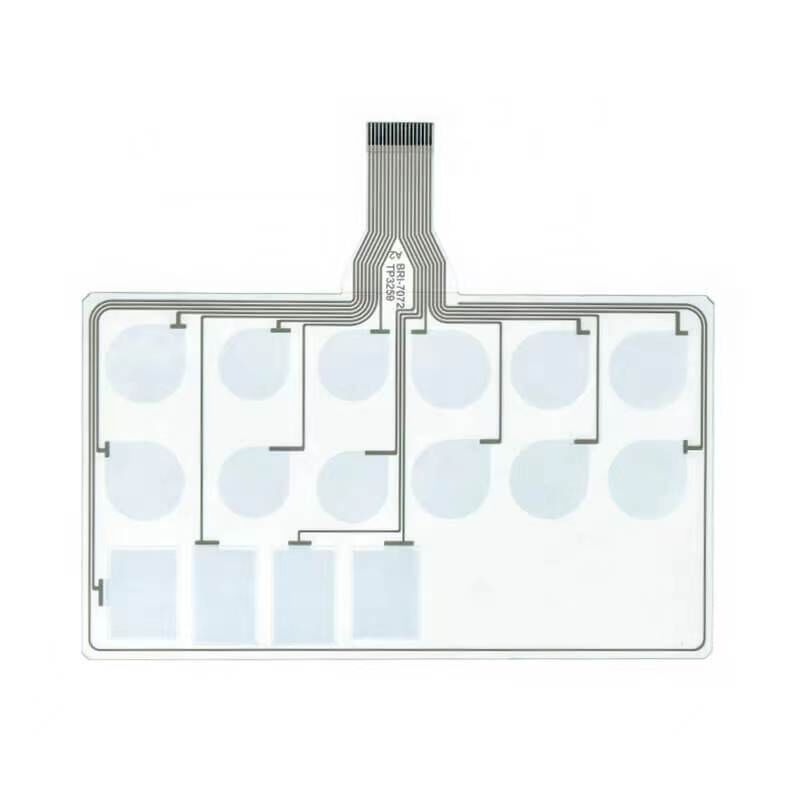

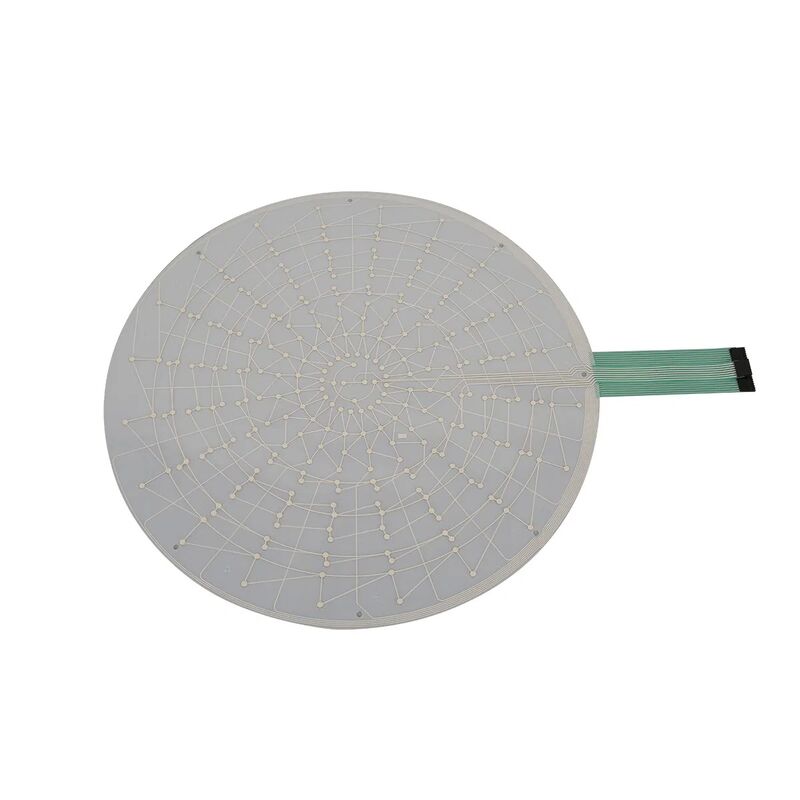

Big size multilayer flexible printed circuit magnetic dart boards with moistureproof construction and high reliability electric PCB board.
Flexible Printed Circuit Construction
Layer Structure
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (as customers request)
Production Capacity
Screen Print Department
IR Tunnel
Thickness Tester
IR Oven
Laser Cutting Machine
Punching Department
Emboss Key Section
Assemble
Electric Testing
OQC Department
Virtual Aspect Testing
Punch Machine Department
PU Coating Section
Technical Specifications
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Times |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C ≤ 98%RH |
| Basic Material Pressurization | 1500V DC |
Why Choose Our Flexible Printed Circuits
- High reliability in function with low cost
- 100% function test before shipment with RoHS compliance
- Three factories to support mass production
- Professional staff and administrative level expertise
- Expert sales team for customer service support
- Metal dome or silicone keypad options available
- Waterproof seal & design reaching IP65 standard
- 17 years of experience working with famous brands including SANYO, Philips, Siemens, Mattel
Detailed Technical Parameters
| Parameter | Specification |
|---|---|
| Insulation Resistance | <100MΩ, 250V DC |
| Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50V DC |
| Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million times/Withstand millions of cycles |
| Operating Humidity | When 40°C, <98%RH |
| Spring Time | ≤ 5ms |
| Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees |
| Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
Please contact us for more information - let's discuss your specific requirements!
