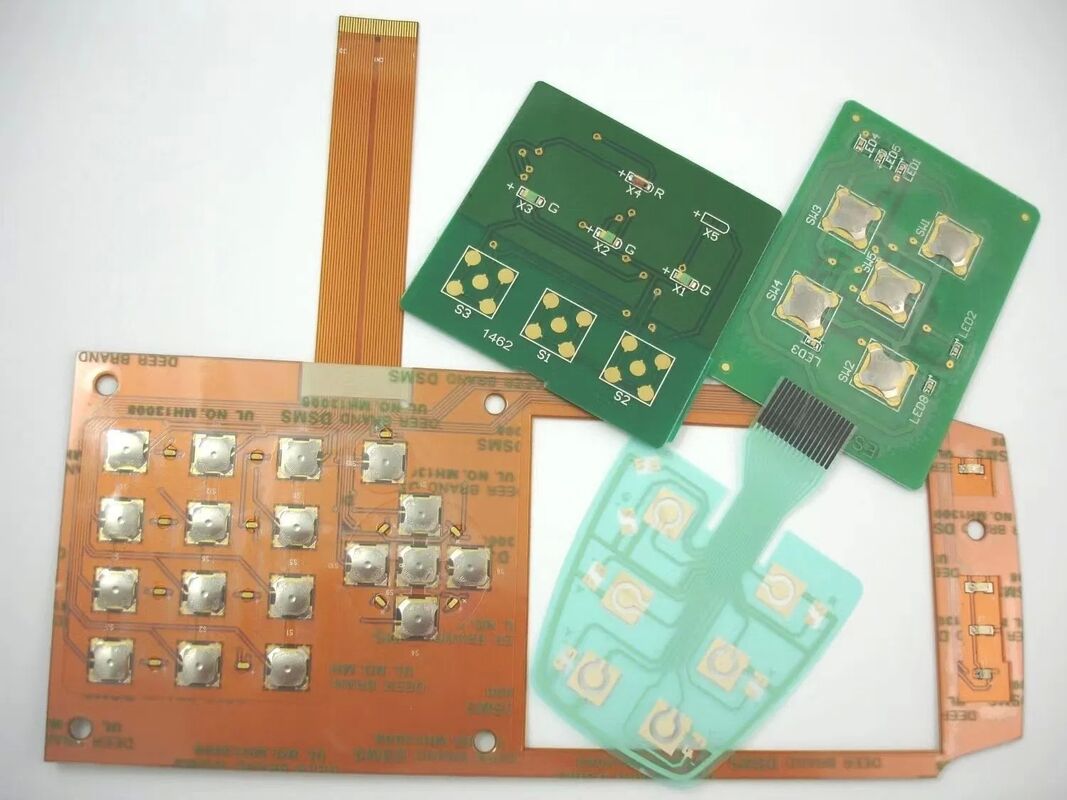

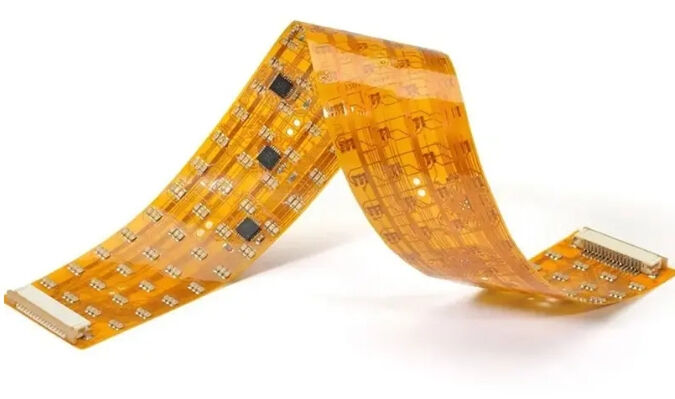

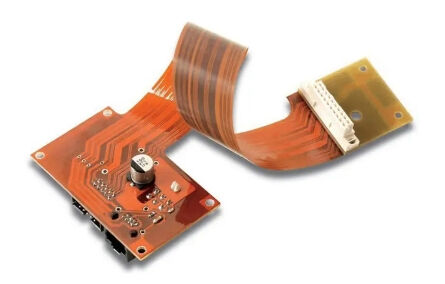

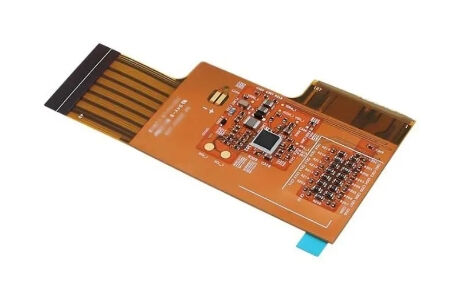

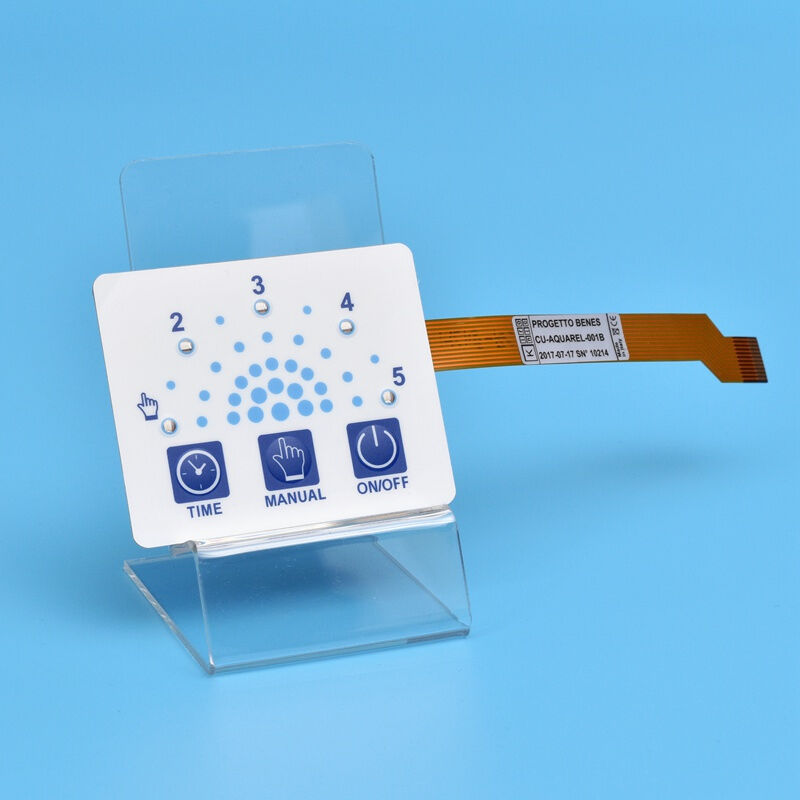

Flexible EL FPC Circuit Super Performance Dust Free Environment Circuits
-
Highlight
Flexible EL FPC circuit
,Dust free environment circuits
,Flexible membrane switch with warranty
-
MaterialEL Panel
-
Contact TypeType A Contact
-
Number Of SwitchMulti Control Switch
-
Detection MethodRetro-reflective Mode
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Waterproof RatingIP65
-
CertificationISO9001
-
Minimum Order Quantity100
-
Price0.3
Flexible EL FPC Circuit Super Performance Dust Free Environment Circuits
Flexible EL FPC Circuit - Super Performance Dust Free Environment Circuits
High-performance flexible electroluminescent FPC circuits manufactured in dust-free environments for superior reliability and longevity.
Key Features
- Custom made to specifications
- Available in any size and shape
- Energy efficient with low power consumption
- Designed to withstand millions of operational cycles
Industry Applications
- 3C Electronics
- Automobile Industry
- Decoration Light Projects
- Artwork and Gifts
- Commercial Usage
- Public Facilities
Both OEM and ODM orders are welcome.
Why Choose Our Flexible EL FPC Circuits?
Quality & Reliability
- High reliability with competitive pricing
- 100% function tested before shipment with RoHS compliance
- Three factories supporting mass production capabilities
- Professional staff and administrative support
Technical Specifications
Insulating ink selection and major technical indicators: Our membrane switches use protective insulation ink that matches conductive ink and film sheet adhesion. We utilize Aiqisen's ED-452SS UV curing inks (blue or colorless transparent) with insulation rating of 2400VAC/MIL.
Insulating Ink Parameters
- Fully mixed before use
- 160-300 mesh screen selection based on insulation requirements
- Light-curing energy control: 300-600MI/CM²
- Screen printing ED452SS takes 3-5 minutes after UV curing for optimal quality results
Our manufacturing process includes comprehensive quality control measures for electrostatic elimination, decorative ink color consistency, and optimized screen printing environments to ensure superior membrane switch products.
Additional Advantages
- Expert sales team providing comprehensive customer service
- Metal dome or silicone keypad options available
- Waterproof seal design reaching IP65 standards
- 17 years of experience working with renowned brands including SANYO, Philips, Siemens, and Mattel
Technical Performance Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
