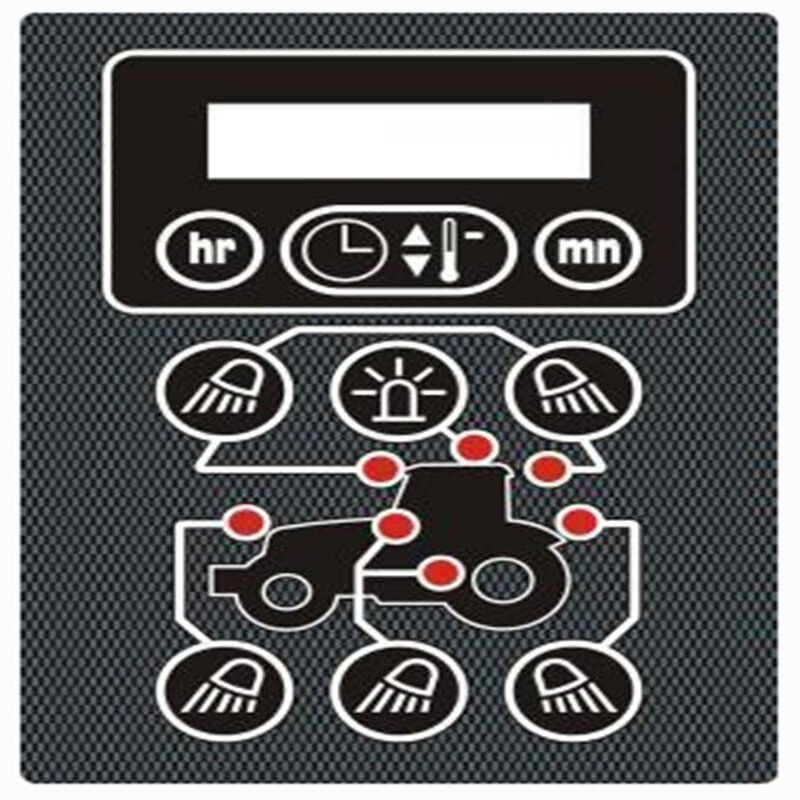

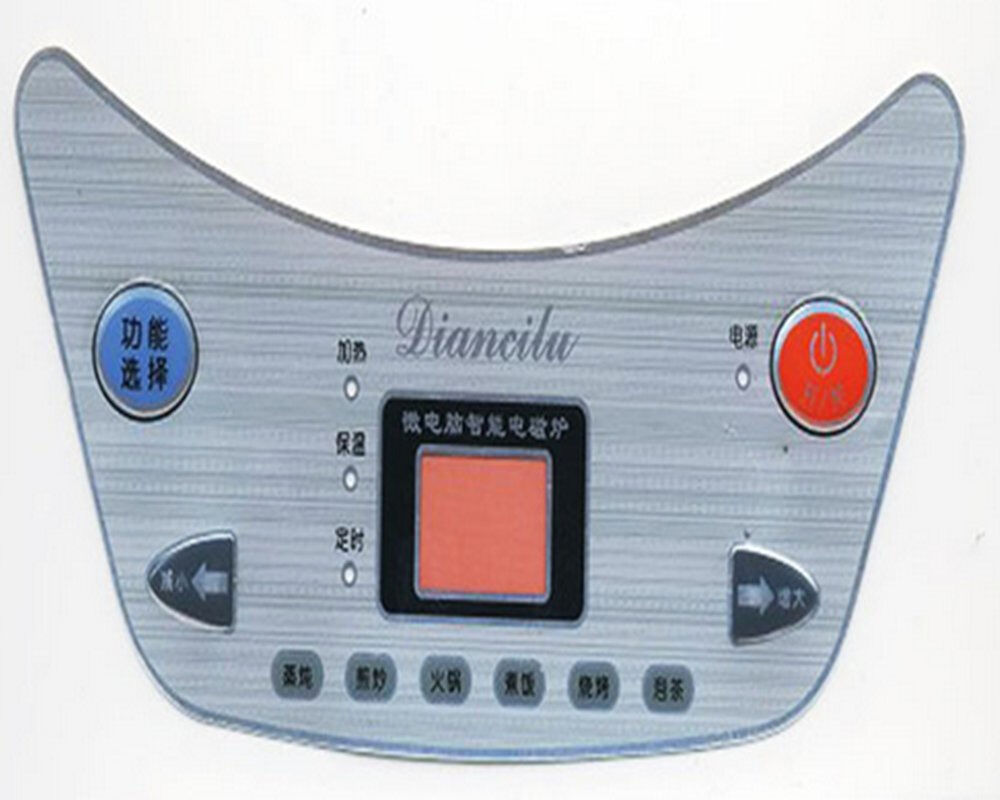

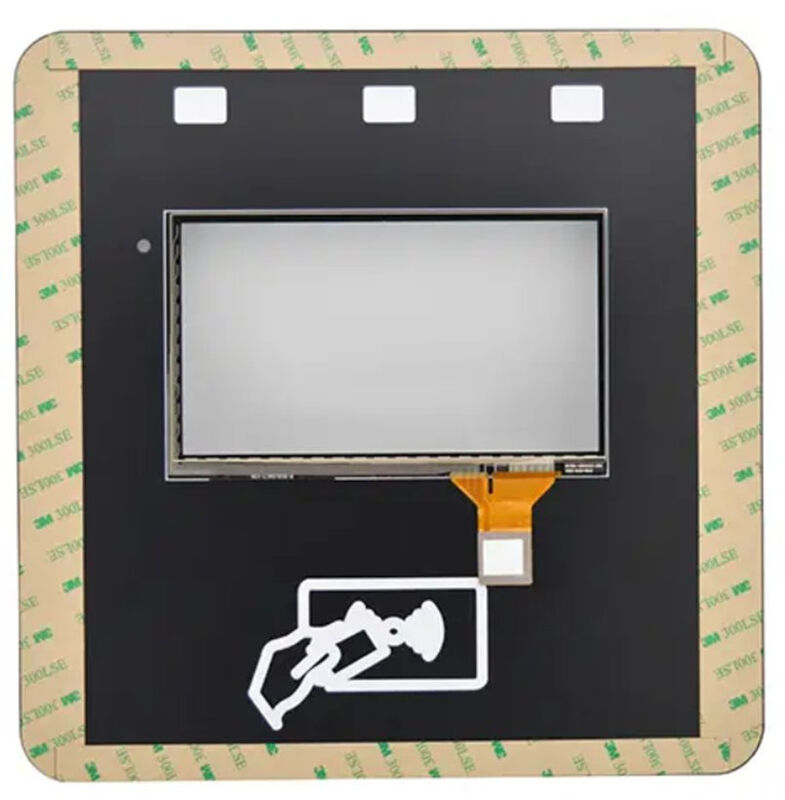

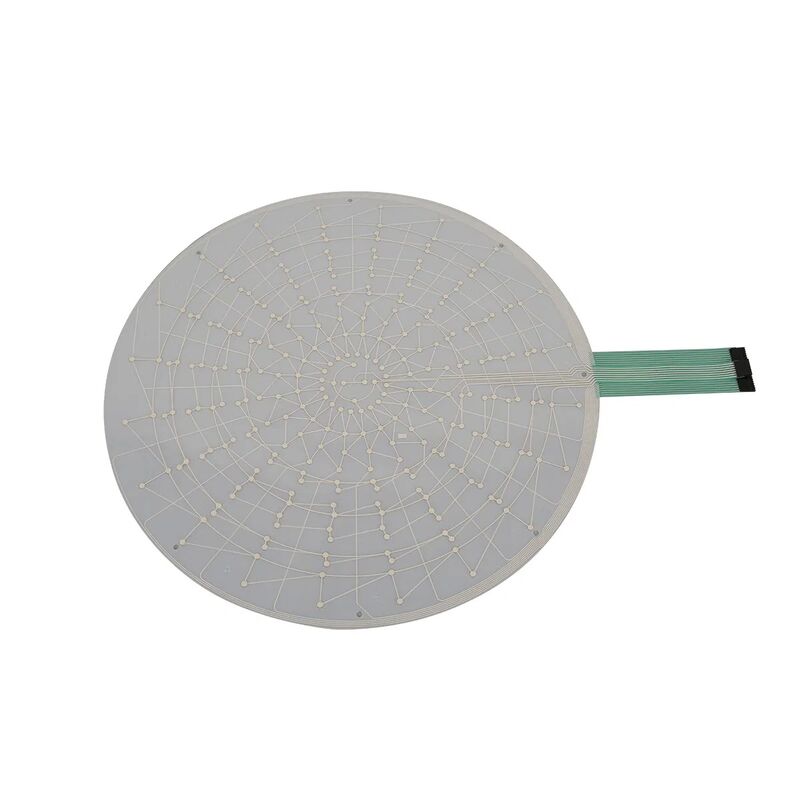

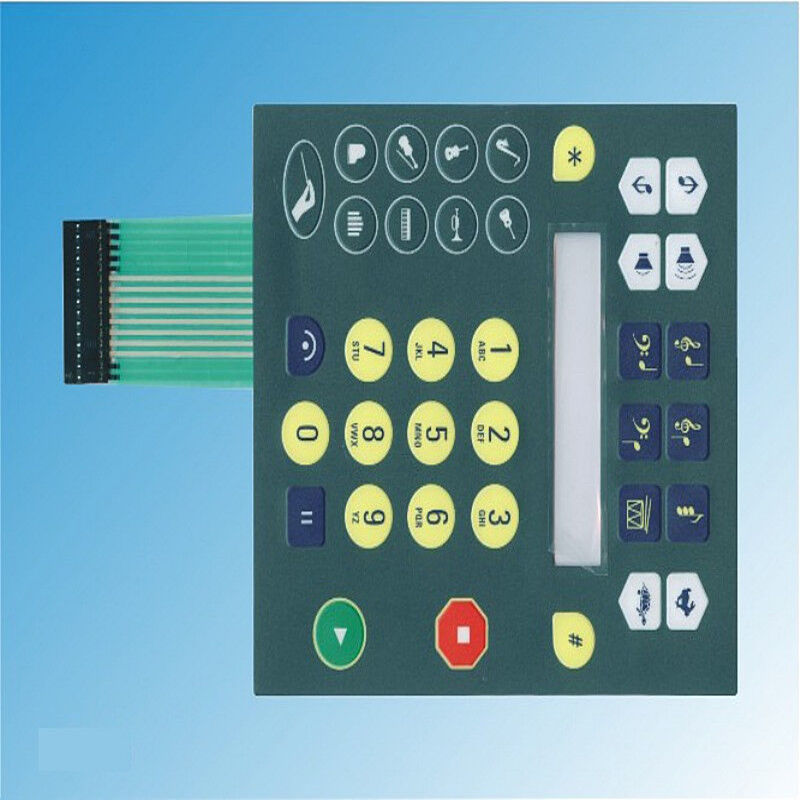

Tactile Feeling Flexible Printing Electric FPC Circuit Board Film Membrane Switch
-
Highlight
flexible membrane switch with tactile feedback
,electric FPC circuit board membrane
,printing film membrane switch flexible
-
Model NO.TKM-MS-0584
-
Combination ModeAdhesive Flexible Plate
-
Conductive AdhesiveConductive Silver Paste
-
Flame RetardantHB
-
Processing TechnologyElectrolytic Foil
-
Base MaterialCopper
-
Insulation MaterialsOrganic Resin
-
Size289.00mm * 216.00mm
-
Key Count136 Keys
-
Connector Type65pin (Zif)
-
Overlay Colors11 Colors
-
LED Count12PCS
-
Wire Resistance≤ 1 Ohm/cm
-
Current Rating25-100mA, 0-30V DC
-
Work Voltage≤ 50V DC
-
Minimum Order Quantity100
Tactile Feeling Flexible Printing Electric FPC Circuit Board Film Membrane Switch
Tactile Feeling Flexible Printing Electric FPC Circuit Board Film Membrane Switch
Our tactile membrane switches feature flexible printed circuit (FPC) technology designed for reliable performance in various applications.
We provide comprehensive production processing with system integrity and stable technical personnel. Our one-station service ensures complete manufacturing solutions.
Layer Construction
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (as requested by customers)
Production Capabilities
- Screen Print Department
- IR Tunnel
- Thickness Tester
- IR Oven
- Laser Cutting Machine
- Punching Department
- Emboss Key Section
- Assemble
- Electric Testing
- OQC Department
- Virtual Aspect Testing
- Punch Machine Department
- PU Coating Section
Technical Parameters
| Parameter | Specification |
|---|---|
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Times |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C to ≤ 98% RH |
| Basic Material Pressurization | 1500V DC |
Please contact us for more information - let's discuss your specific requirements in detail!
