Highlight
customized membrane switch with FPC
,flexible membrane switch circuit
,FPC circuit membrane switch
-
MaterialEL Panel
-
Contact TypeType A Contact
-
Number Of SwitchMulti Control Switch
-
Detection MethodRetro-reflective Mode
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω /cm
-
Operating Voltage≤ 50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Times
-
Operating HumidityWhen40°C,<98%RH
-
Spring Time≤ 5ms
-
Substrate Voltage2000V DC
-
Tail FlexibilityAny Angle Within 180 Degree
-
Switch TravelFlat Type 0.05-0.3mm Tactile Type:0.3-1.5mm
-
Production Capacity100,000PCS/Month
-
CertificationISO9001
-
Minimum Order Quantity100
-
Price0.3

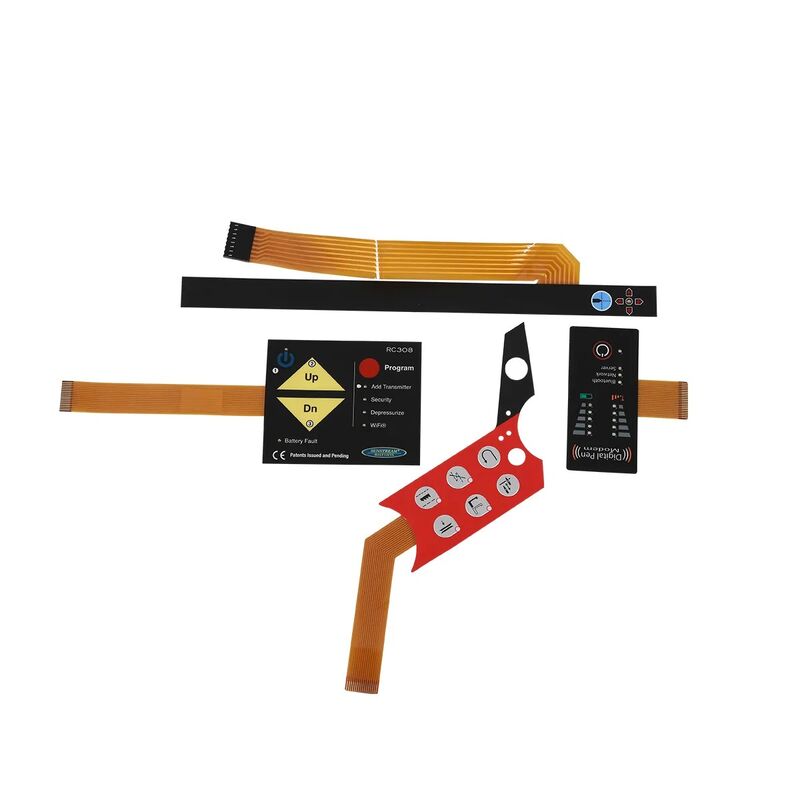

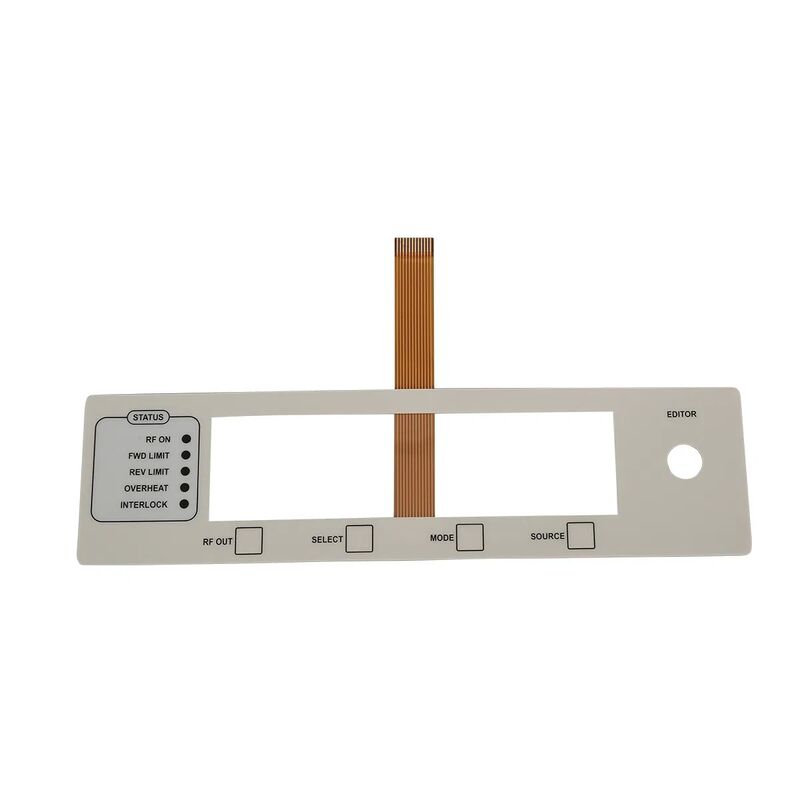

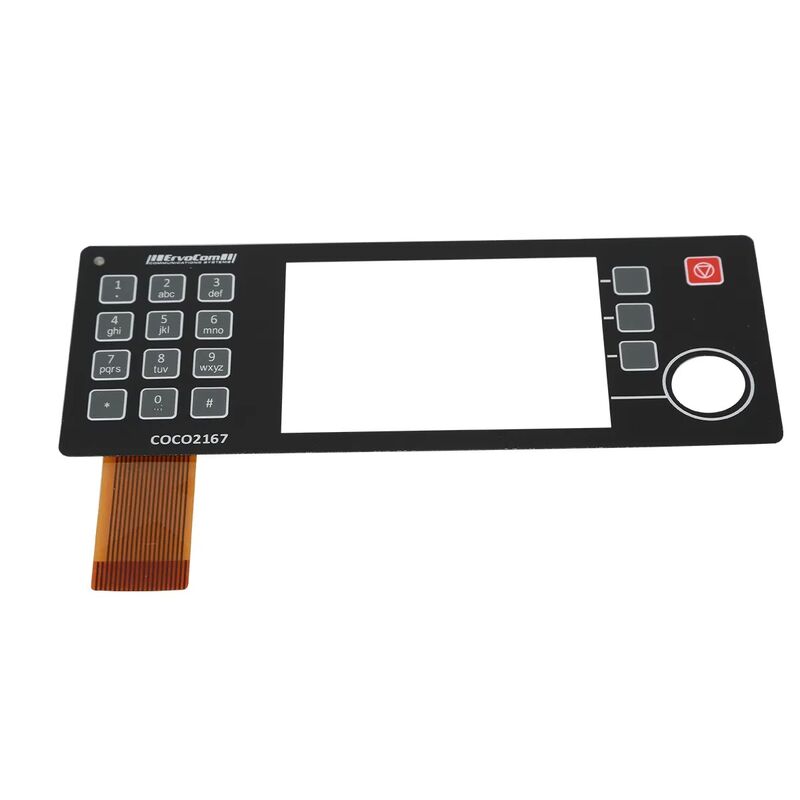

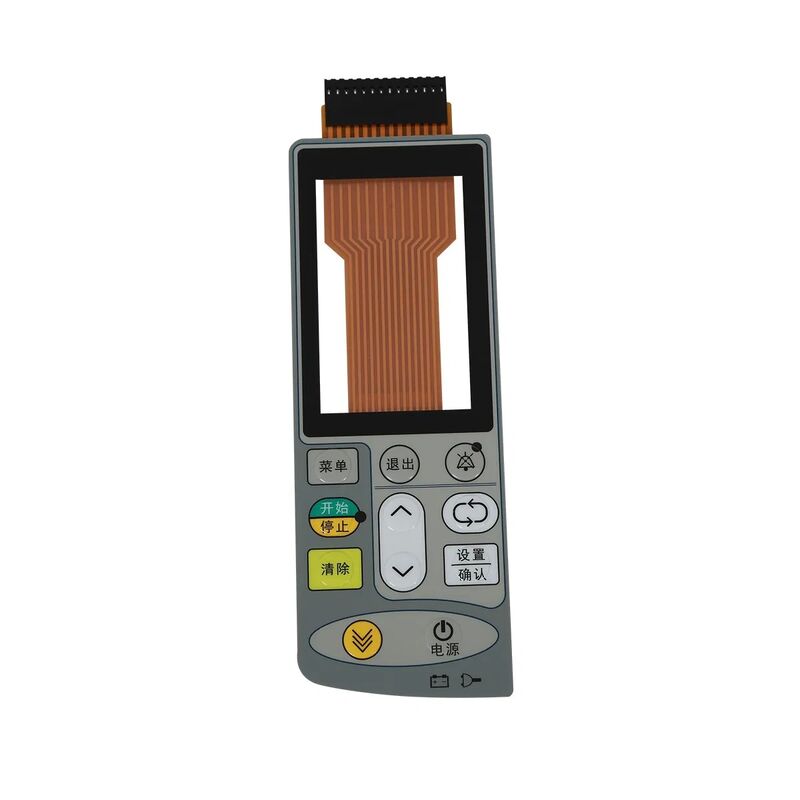

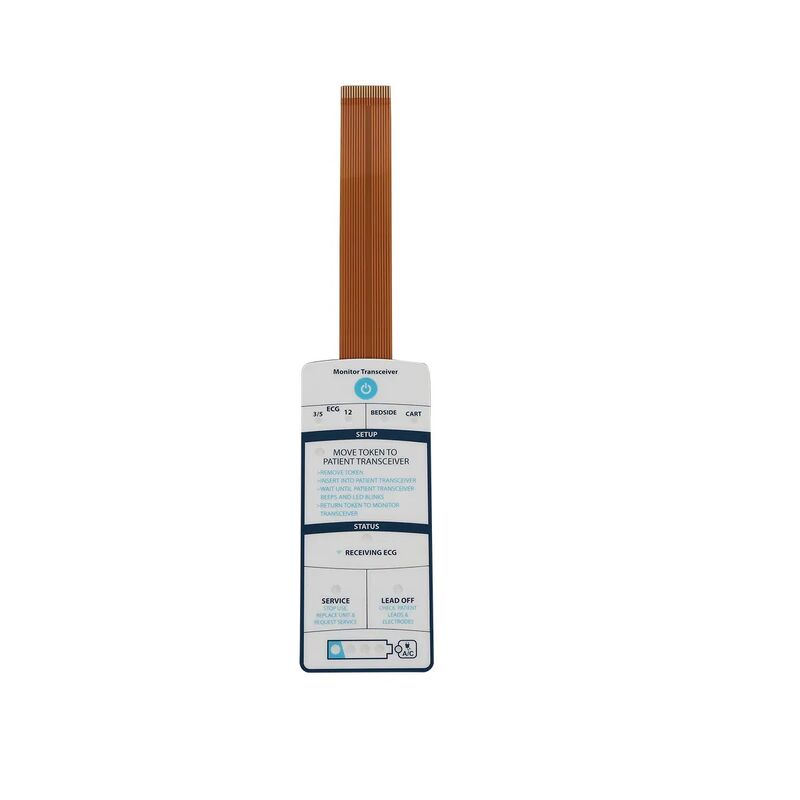

Customerized Membrane Switch with FPC Circuit
Customized Membrane Switch with FPC Circuit
High reliability flexible membrane control switch with FPC flexible circuit designed for demanding industrial applications.
Key Features
- Custom made to specifications
- Available in any size and shape
- Energy efficient with low power consumption
- Designed to withstand millions of operating cycles
Industry Applications
3C Electronics, Automobile Industry, Decoration Light Projects, Artwork and Gifts, Commercial Usage, Public Facilities
Both OEM and ODM orders are welcome.
Why Choose Our Membrane Switches
Quality & Reliability
- High functional reliability with competitive pricing
- 100% function tested before shipment (ROHS compliant)
- Three manufacturing facilities support mass production
- Professional technical and administrative staff
Technical Excellence
Advanced insulating ink technology with ED-452SS UV curing inks (blue or transparent) providing insulation strength of 2400VAC/MIL. Our comprehensive quality control ensures optimal performance through precise material selection, screen printing techniques, and environmental controls.
Additional Capabilities
- Expert sales team providing comprehensive customer support
- Metal dome or silicone keypad options available
- Waterproof seal design reaching IP65 standards
- 17 years of experience working with renowned brands including SANYO, Philips, Siemens, and Mattel
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Insulation Resistance | <100MΩ, 250V DC | Contact Resistance | <1Ω /cm |
| Operating Voltage | ≤ 50VDC | Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles | Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms | Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees | Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
