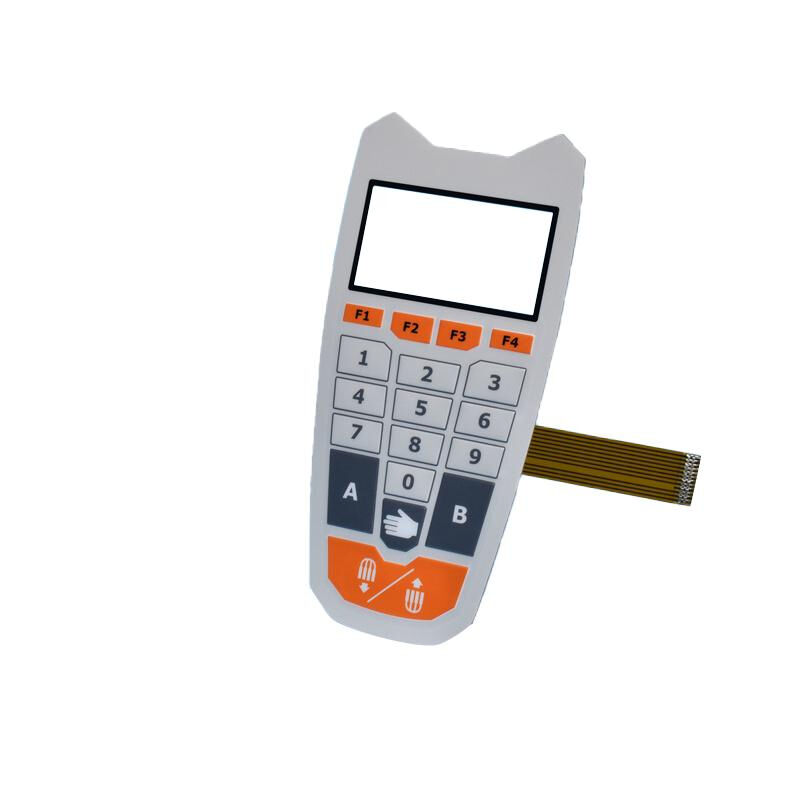

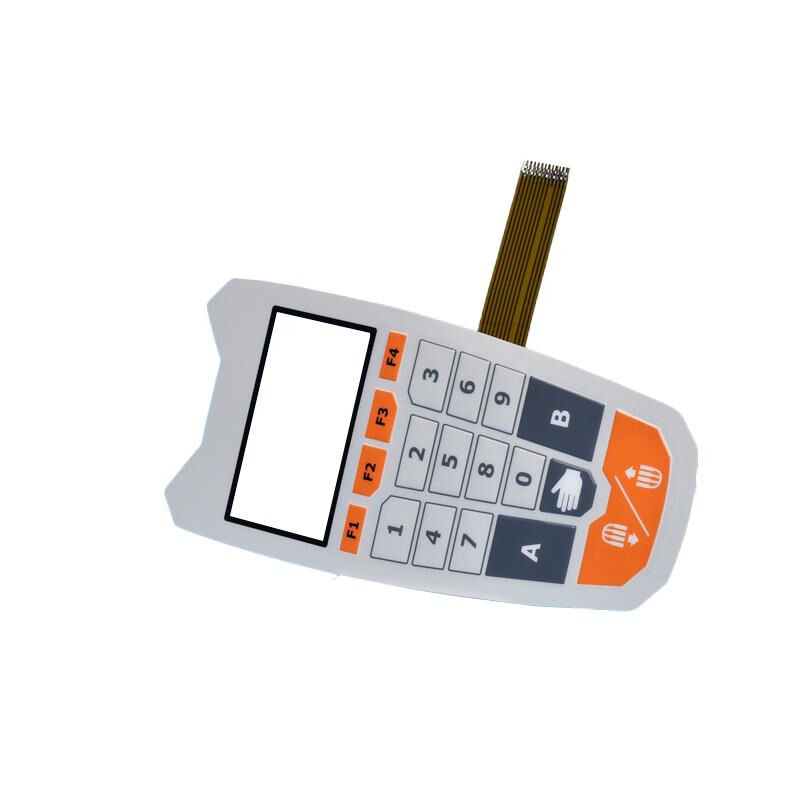

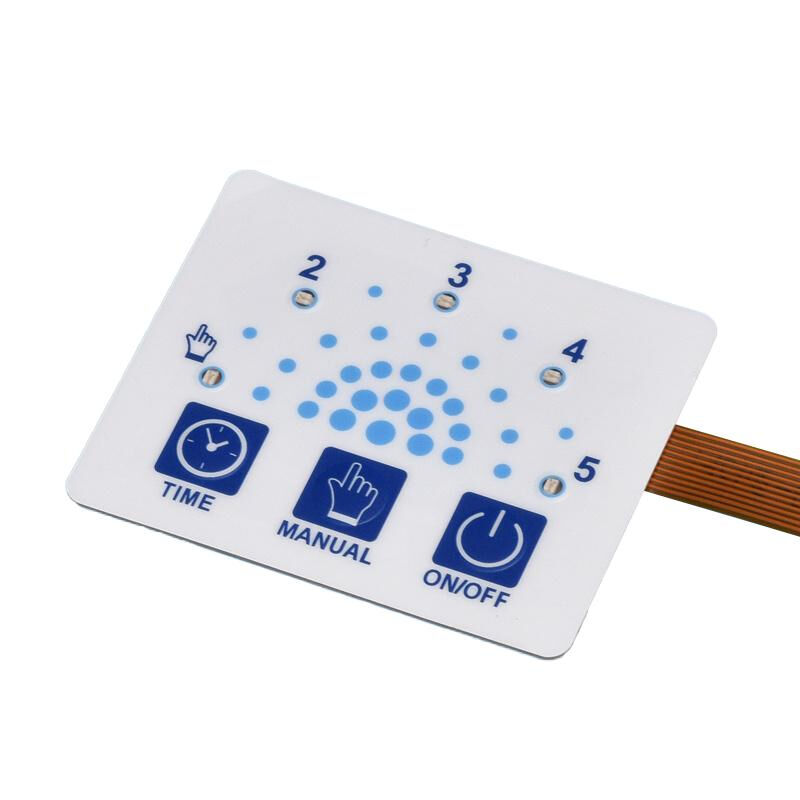

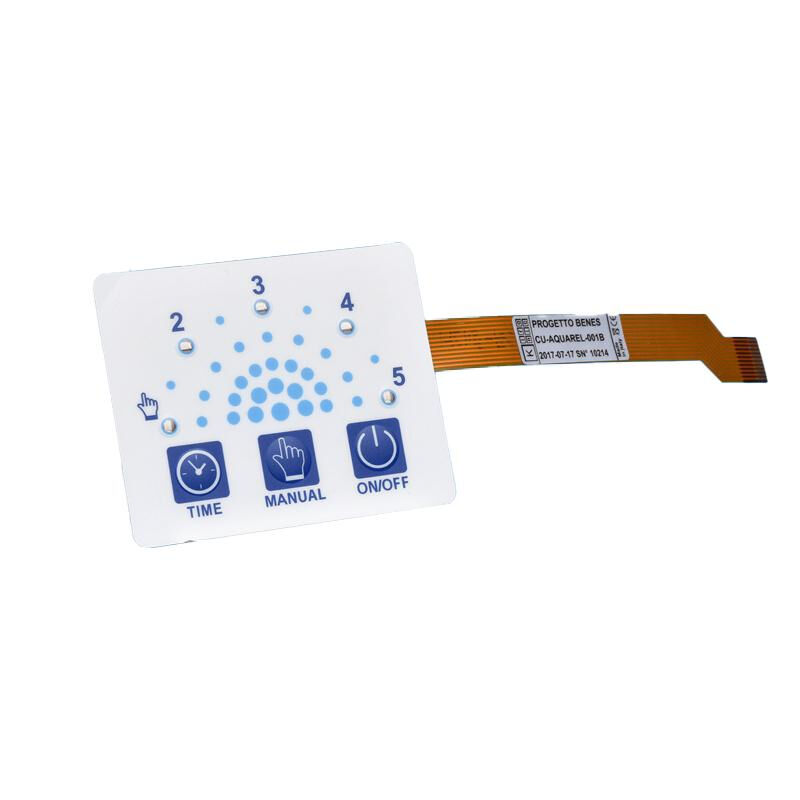

High Reliability Flexible Membrane Control Switch FPC Flexible Circuit
-
Highlight
Flexible Membrane Control Switch
,FPC Flexible Circuit Switch
,High Reliability Membrane Switch
-
Model NumberHC-EL-006
-
MaterialEL Panel
-
Contact TypeType A Contact
-
Switch CountMulti Control Switch
-
Insulation Resistance<100MΩ,250V DC
-
Contact Resistance<1Ω/cm
-
Operating Voltage≤50VDC
-
Working Current25-100mA,0-30V DC
-
Service Life>1 Million Cycles
-
Operating Humidity40°C,<98%RH
-
Response Time≤5ms
-
Substrate Voltage2000V DC
-
Tail Flexibility180 Degree
-
Switch TravelFlat Type 0.05-0.3mm, Tactile Type 0.3-1.5mm
-
Waterproof RatingIP65
-
CertificationISO9001
-
Minimum Order Quantity100
-
Price0.3
High Reliability Flexible Membrane Control Switch FPC Flexible Circuit
High Reliability Flexible Membrane Control Switch FPC Flexible Circuit
Custom-made flexible membrane control switches with FPC flexible circuits designed for high reliability and energy efficiency.
Key Features
- Custom made to specifications
- Available in any size and shape
- Energy saving design with low power consumption
- Withstands millions of operating cycles
Applications
- 3C Electronics
- Automobile Industry
- Decoration Light Projects
- Artwork and Gifts
- Commercial Usage
- Public Facilities
Both OEM and ODM orders are welcome.
Why Choose Our Membrane Switches?
- High reliability with low cost
- 100% function tested before shipment (RoHS compliant)
- Three factories supporting mass production
- Professional staff and administrative support
- Expert sales team for customer service
- Metal dome or silicone keypad options available
- Waterproof seal design reaching IP65 standard
- 17 years of experience working with famous brands including SANYO, Philips, Siemens, and Mattel
Technical Specifications
| Insulation Resistance | <100MΩ, 250V DC |
| Contact Resistance | <1Ω /cm |
| Operating Voltage | ≤ 50VDC |
| Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million times / Withstands millions of cycles |
| Operating Humidity | When 40°C, <98% RH |
| Spring Time | ≤ 5ms |
| Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees |
| Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |
